12
Engli
sh

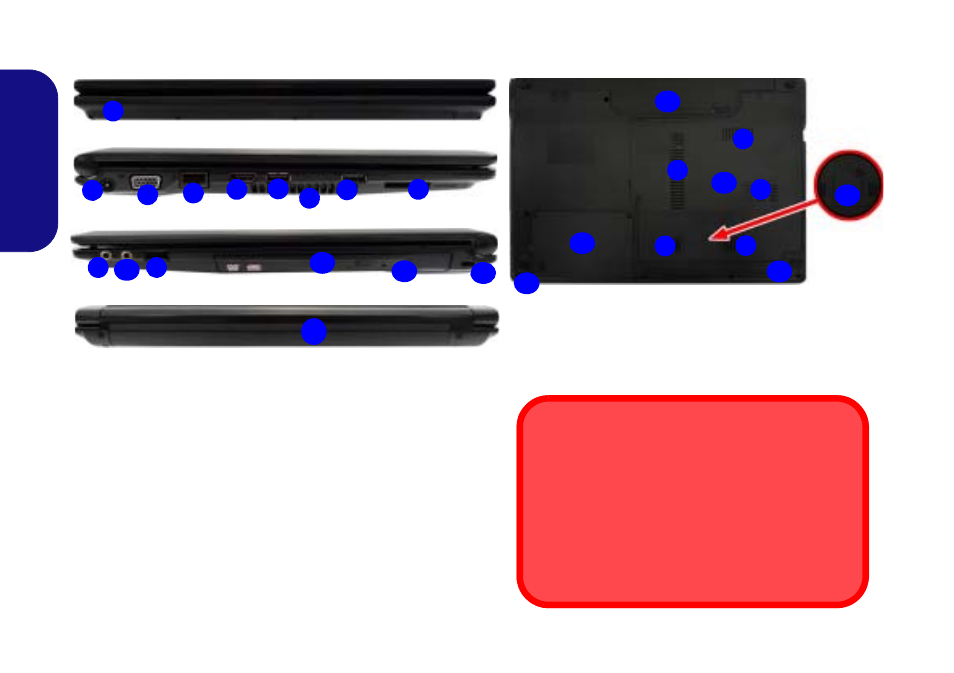

System Map: Front, Left, Right, Rear & Bottom Views (Model A)
Figure 5 - Front, Left, Right, Rear & Bottom Views (Model A)
1. LED Power Indicators
2. DC-In Jack
3. External Monitor Port
4. RJ-45 LAN Jack
5. HDMI-Out Port
6. 3 * USB 2.0 Ports
7. Vent
8. Multi-in-1 Card Reader
9. Microphone-In Jack
10. Headphone-Out Jack 11. Optical Device Drive Bay
12. Emergency Eject Hole
13. Security Lock Slot
14. Battery
15. Component Bay Cover
16. Hard Disk Bay Cover
17. Speakers
18. USIM Card Cover (Optional)
2
1
7
8
4 6
3
Left
Right
5
Front
Rear
10 6 12
15
11
18
Bottom
13
14
6
9
7
17
7
17
16
7
7
14
7

Overheating
To prevent your computer from overheating make
sure nothing blocks any vent while the computer is in
use.
CPU
The CPU is not a user serviceable part. Accessing the
CPU in any way may violate your warranty.
