6 - 8 Upgrading the System Memory (RAM)
6
3. Carefully (a fan and cable are attached to the under side of the cover) lift up the
bay cover.
4. Carefully disconnect the fan cable , and remove the cover .
5. Gently pull the two release latches on the sides of the memory socket in the
direction indicated by the arrows (
& ) in Figure 6 - 7 .
5 6
5
6
7 8

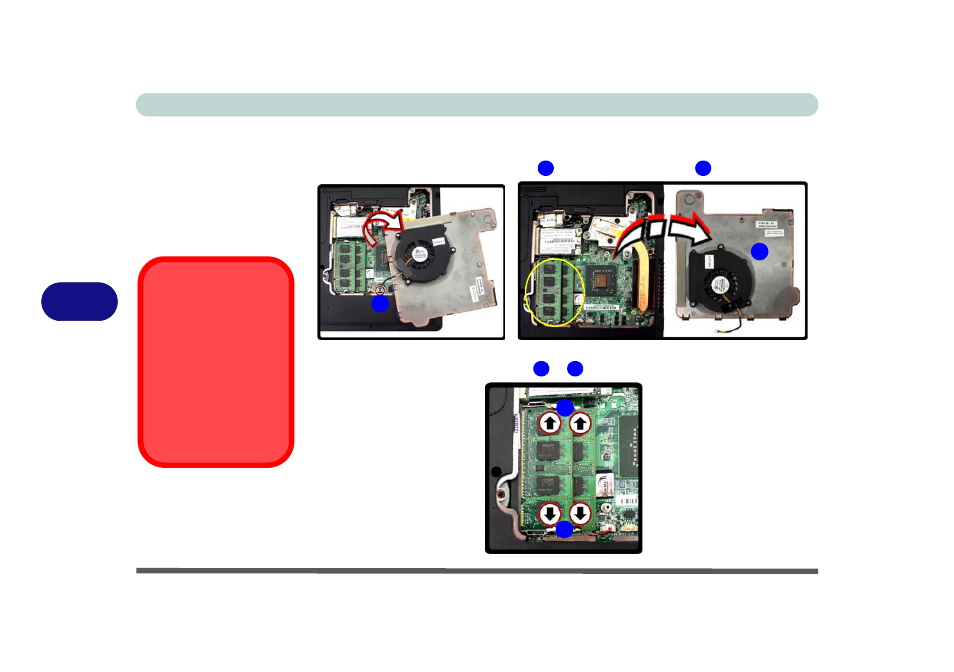

Figure 6 - 6
CPU/RAM Bay
Cover Removed
Contact Warning
Be careful not to touch
the metal pins on the
module’s connecting
edge. Even the cleanest
hands have oils which
can attract particles, and
degrade the module’s
performance.
Figure 6 - 7
RAM Module
Release Latches
7
8
