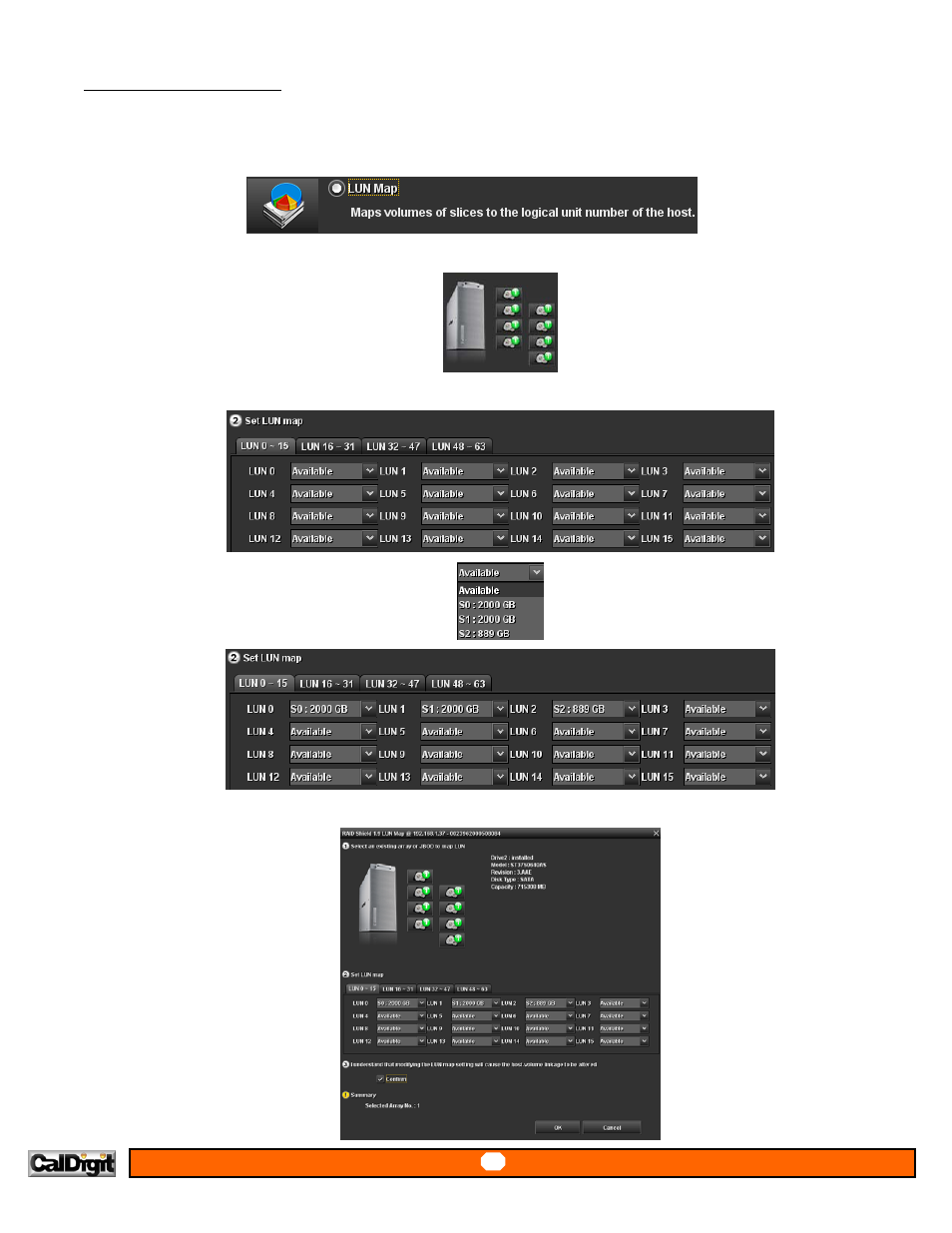

Advanced – LUN Map:

A LUN is a unique identifier used on a SCSI bus that enables it to differentiate between up to 8 separate devices. Use
the LUN map to attach a unique identifier to a slice.

NOTE: if you sliced the array, you will need to assign the LUN map for the sliced array. (See above section.)

1. To set the LUN mapping for the CalDigit product(s), select an existing array from the unit.

2. Pick the LUN number, and select the LUN Map.

3. Check

the

Confirm box, and Click the OK to complete the process.
