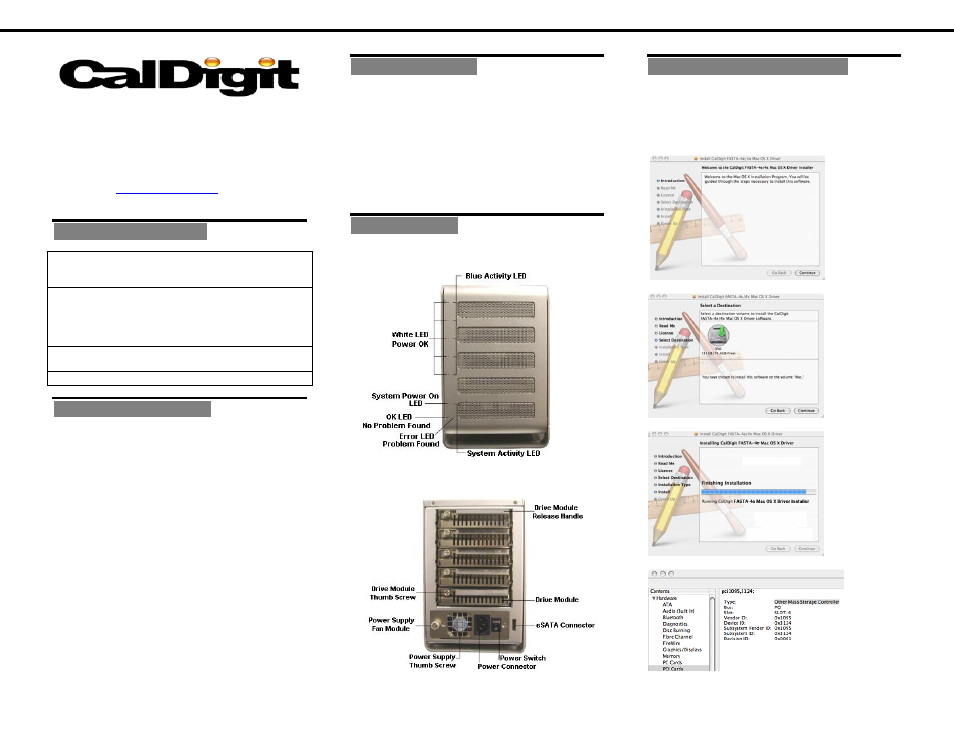

S2VR HD Quick Installation Sheet

Thank you for choosing CalDigit. This
quick installation sheet is for reference
only. Please check the detailed manual on
the provided CD, and also check our
website at

www.caldigit.com

for updated

drivers/software.

Product Specification:

Physical Dimensions:

26.30" L

15" W X 23.25"

H / 263.29mm L X 150mm
W X 232.50mm H

Power:

Auto switching 100-240
VAC 47-63 Hz with PFC /
Inrush current 65/130A @
11/220VAC (at 25° ambient
cold start)

Operating temperature:

0-40 degrees C or 32° to
104°F

Weight (net):

20.45lb / 9.28kg

System Requirements:

• PC or Mac with an available PCI-e or PCI-

x slot 500 Mhz or faster**

• CD-ROM Drive

• 1GB of RAM minimum

•

Mac OS 10.3.9 or higher

• Windows 2000/XP or higher

Note: You may be able to install the S2VR

into an older Mac or PC, however the overall
performance will be slower than with newer
systems.

For uncompressed HD video editing,

we recommend a Dual Core G5 with 1Ghz
machine running with 1GB of RAM or better.

S2VR Duo S2VR HD, S2VR Pro, CalDigit name and logo are registered trademarks of CalDigit Inc.

All other trademarks are the property of their respective holders.

Package Contents

• S2VR HD

• 5 Hard drive in tray module

• FASTA-4e HBA or FASTA-4x HBA

depending on model. (Host Card)

• e-SATA Cable

• Quick Installation sheet

• Driver CD & Manual

• Power Cord

S2VR Interface:

Host Card Driver Installation:

1. Turn

Computer

On.

2. Insert CD in CD-ROM drive.
3. Open CD, then open file CalDigit FASTA-

4.pkg by double clicking on it

4. Introduction

Screen,

CLICK

Continue

5. Select OS hard drive as the Destination.

6. Finishing Installation, CLICK

Continue

7. Verify System Profiler
