Installation instructions – Blue Sea Systems 7620100B ML-ACR Heavy Duty Automatic Charging Relay 12V [Bulk] User Manual
Page 4

4. Remote indicator lamp (Optional)
Use Blue Sea Systems LED 8033 (amber), 8171 (red), or 8172 (green).
To install a remote LED indicator:
• Connect switch pin 8 to DC positive protected by a 2 Amp in-line fuse.
• Connect pin 7 to the yellow wire from the harness.
4.500"
114.30mm
3.000"
76.20mm
5.470"
138.94mm
3.750"
95.25mm
2.030"
51.56mm
1.900"
48.26mm
1.030"
26.16mm

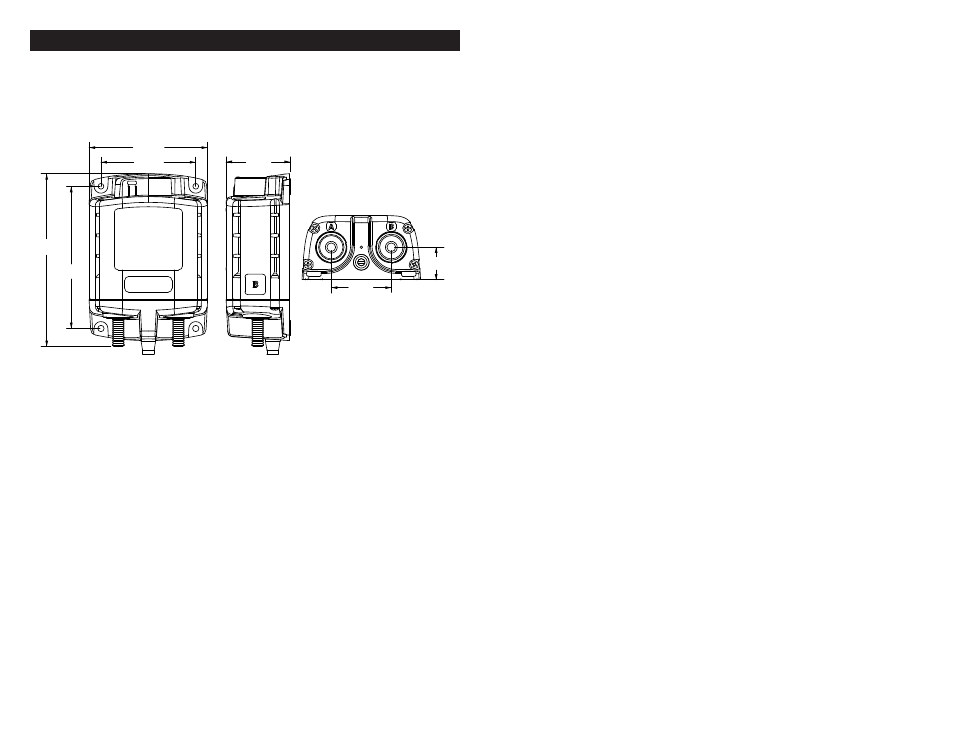

Front View
Side View
Bottom View
page 4 of 4
990180610 Rev.002
Installation Instructions
(continued)
