Engine Isolation
The ML-Series ACR can be configured to automatically open when two engines are simultaneously running
to ensure that two running engines are never electrically connected. Enable this feature to reduce
noise and communication cross-talk between engines, and to maximize total potential alternator output.
To enable Engine Isolation for two engines:
• Connect the brown wire (ISOLATION #1) from the harness to the ON terminal of the start key switch on
one engine. Make this connection through a 2 Amp in-line fuse. This connection must be to the line that
is positive while the engine is normally running.
• Connect the green wire (ISOLATION #2) to ENGINE #2 in the same manner as above.
To enable Engine Isolation for three engines:
• Connect the brown wire (ISOLATION #1) to ENGINE #1, the green wire (ISOLATION #2) to ENGINE #2, and
the orange wire (ISOLATION #3) to ENGINE #3 in the same manner as above.
Start Isolation
The ML-Series ACR can be configured to automatically open temporarily (3-5 minutes) when voltage is
sensed on any one of up to three start-isolation inputs. Enable this feature to isolate Start circuits from the
House circuit and prevent starting current transients from interfering with sensitive house electronics.
To enable Start Isolation:
• Connect the brown wire (ISOLATION #1) from the harness to the terminal or wire running from the start
key switch to the starter solenoid. Make this connection through a 2 Amp in-line fuse. This connection
can be made at the start key switch or at the starter solenoid, but must be to the line that is positive only
when cranking the engine. as shown below.
To enable Start Isolation for two or three engines starting from the same battery:
• Connect the green wire (ISOLATION #2) to ENGINE #2 in the same manner as above.
• Connect the orange wire (ISOLATION #3) to ENGINE #3 in the same manner as above.

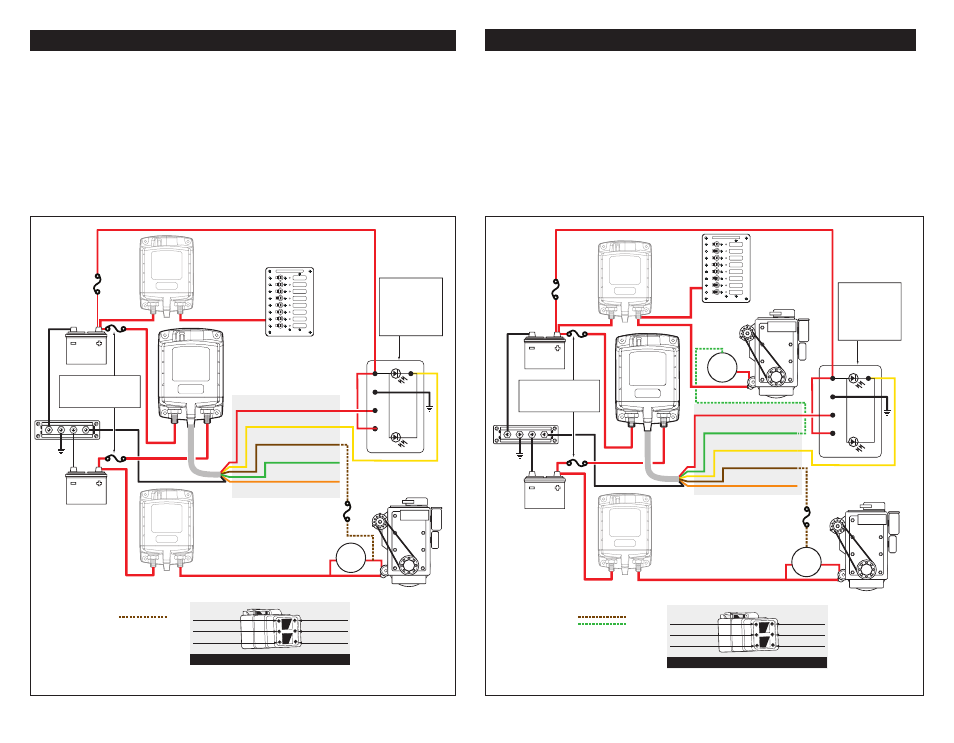

Start Isolation Installation
Engine Isolation Installation
