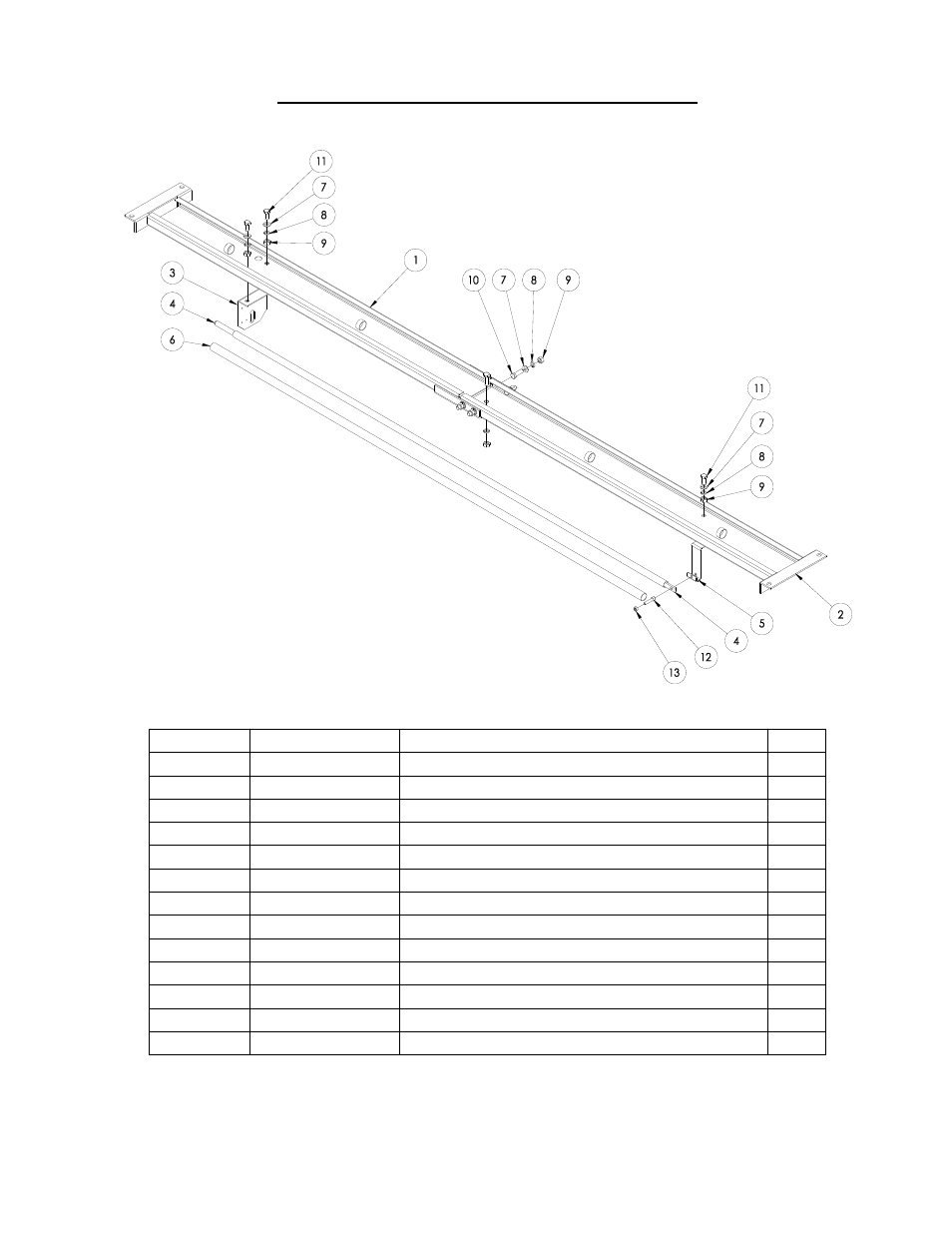

Diagram#13: CROSS BEAM ASSEMBLY
ITEM NO.
PART NUMBER
DESCRIPTION
QTY.
1
22090004
RIGHT CROSSBEAM WELDMENT
1
2
22090005
LEFT CROSSBEAM WELDMENT
1
3
32090012
LIMIT BAR BRACKET
1
4
12090003
LIMIT BAR
1
5
32090013
LIMIT BAR HINGE
1
6
32090011
LIMIT BAR COVER
1
7
32090036
12MM FLAT WASHER
8
8
32090035
12MM LOCK WASHER
8
9
32090034
M12 NUT
8
10
32090037
M12 HEX BOLT
5
11
32090037
M12 HEX BOLT
3
12
32090032
M8 HEX BOLT
1
13
32090029
M8 NUT
1
