Diagram #9: safety lock assembly – BASELINE Lift BL211CF User Manual

Page 30

background image

30

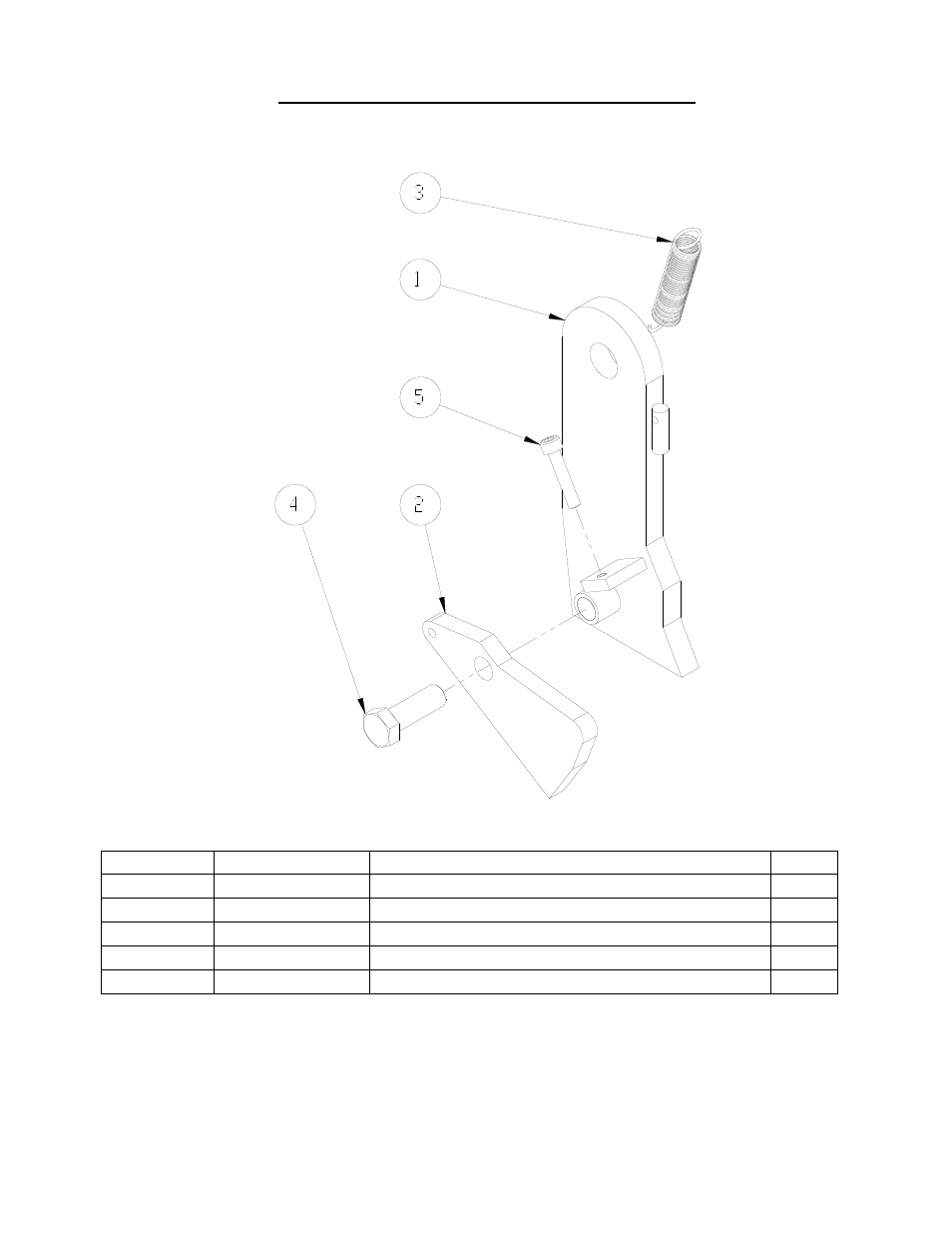

Diagram #9: SAFETY LOCK ASSEMBLY

ITEM NO.

PART NUMBER

DESCRIPTION

QTY.

1

22090003

LOCK WELDMENT

2

2

12090002

GUIDING BLOCK

2

3

32090007

LOCK RETURNING SPRING

2

4

32090039

HEX BOLT

2

5

32090040

HEX BOLT (C/W COMPRESSION SPRING)

2
