14
RainXchange ® Water Storage Kits

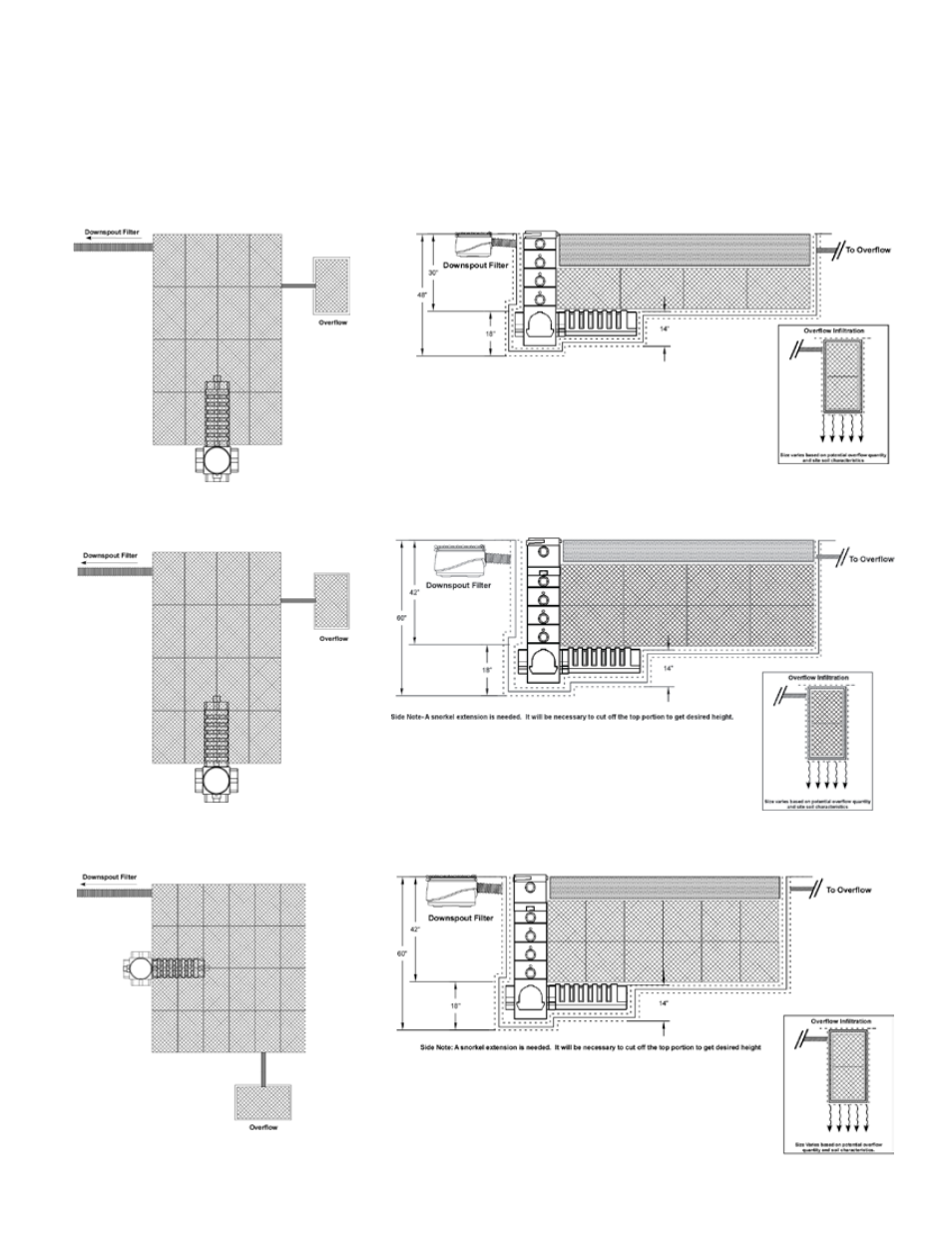

The following diagrams include the storage basin dimensions, AquaBlox ® configuration and location of the Snorkel ™ and Centipede ™ Filters. Note:
Overflow location and design are dependent on the site characteristics. See install overflow RainXchange ® section of instructions for more
information. Basin sizes listed for each storage kits are approximations. It is recommended to lay out AquaBlox ® and position of Snorkel ™ prior to
excavation in order to determine actual excavation dimensions. Please note an addtional 6” is recommended per side for free-draining backfill.
500 Gallon System, 6’x9’x4’ Finished Basin,
16 AquaBlox ® , 4x4 configuration Side View of 500 Gallon System, 4’Deep
1000 Gallon System, 6’x9’x5’ Finished Basin,
32 AquaBlox ® , 4x4 Configuration, 2 Layers
Side View of 1000 Gallon System, 5’ Deep
1500 Gallon System, 8’x9’x5’ Finished Basin,
48 AquaBlox ® , 4x6 Configuration, 2 Layers Side View of 1500 Gallon System
