Applica on Type 5: Volume of horizontal cylindrical tank with or without
hemispherical ends
Register Func on Value Range
40402 Applica on Type 5
40403 Volume Units 1 to 7
40404 Decimal Place 0 to 3
40406 Full Level 0 to Max. Level
40436-40437 Tank Length 0 to 100,000 mm
40438-40439 Tank Diameter 0 to 100,000 mm
40440-40441 End Radius 0 to 100,000 mm

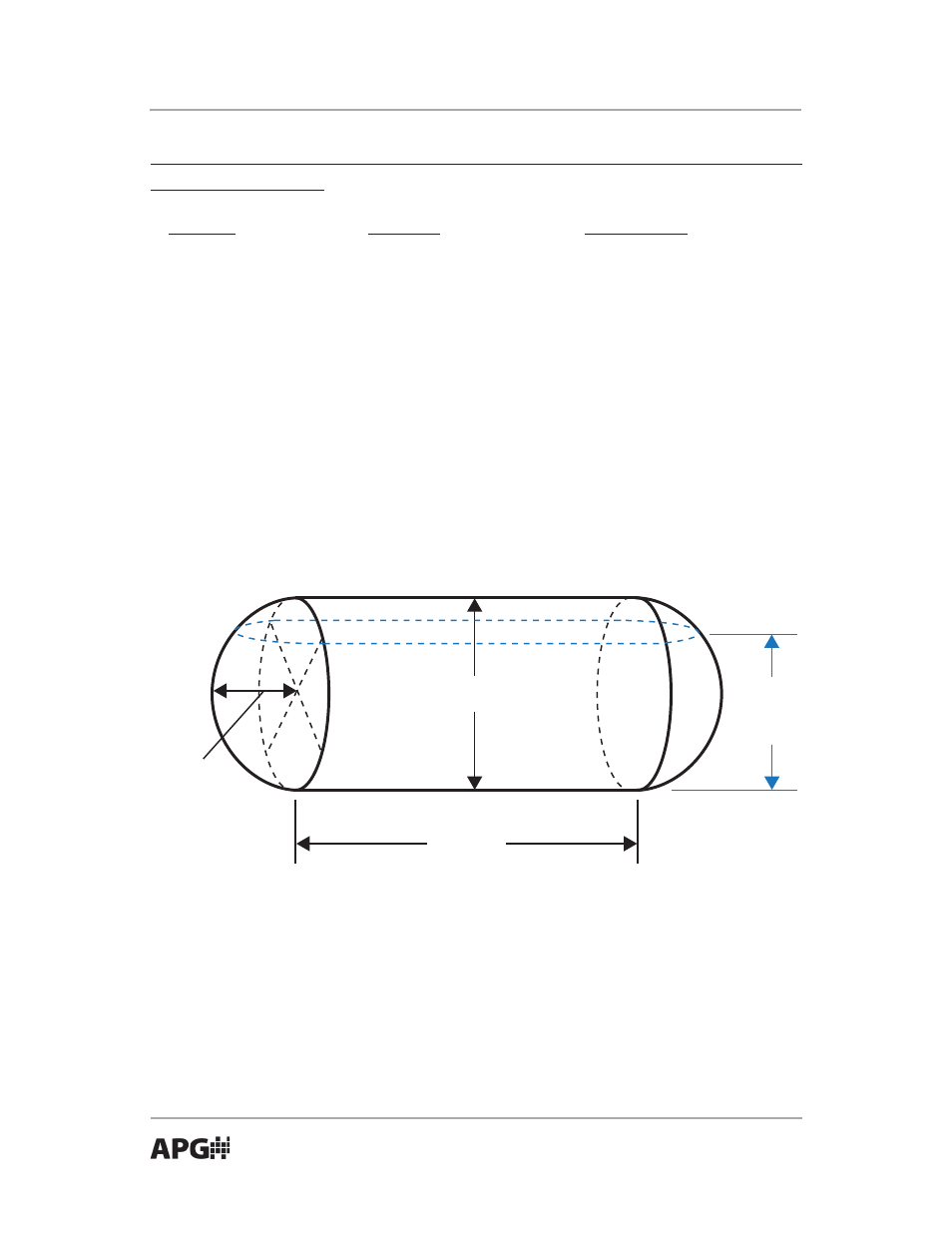

Diameter
Length
Full
Level
End
Radius
