Applica on Type 3: Volume of cylindrical tank with conical bo om
Register Func on Value Range
40402 Applica on Type 3
40403 Volume Units 1 to 7
40404 Decimal Place 0 to 3
40406 Full Level 0 to Max. Level
40436-40437 Tank Diameter 0 to 100,000 mm
40438-40439 Cone Diameter 0 to 100,000 mm
40440-40441 Cone Length 0 to 100,000 mm

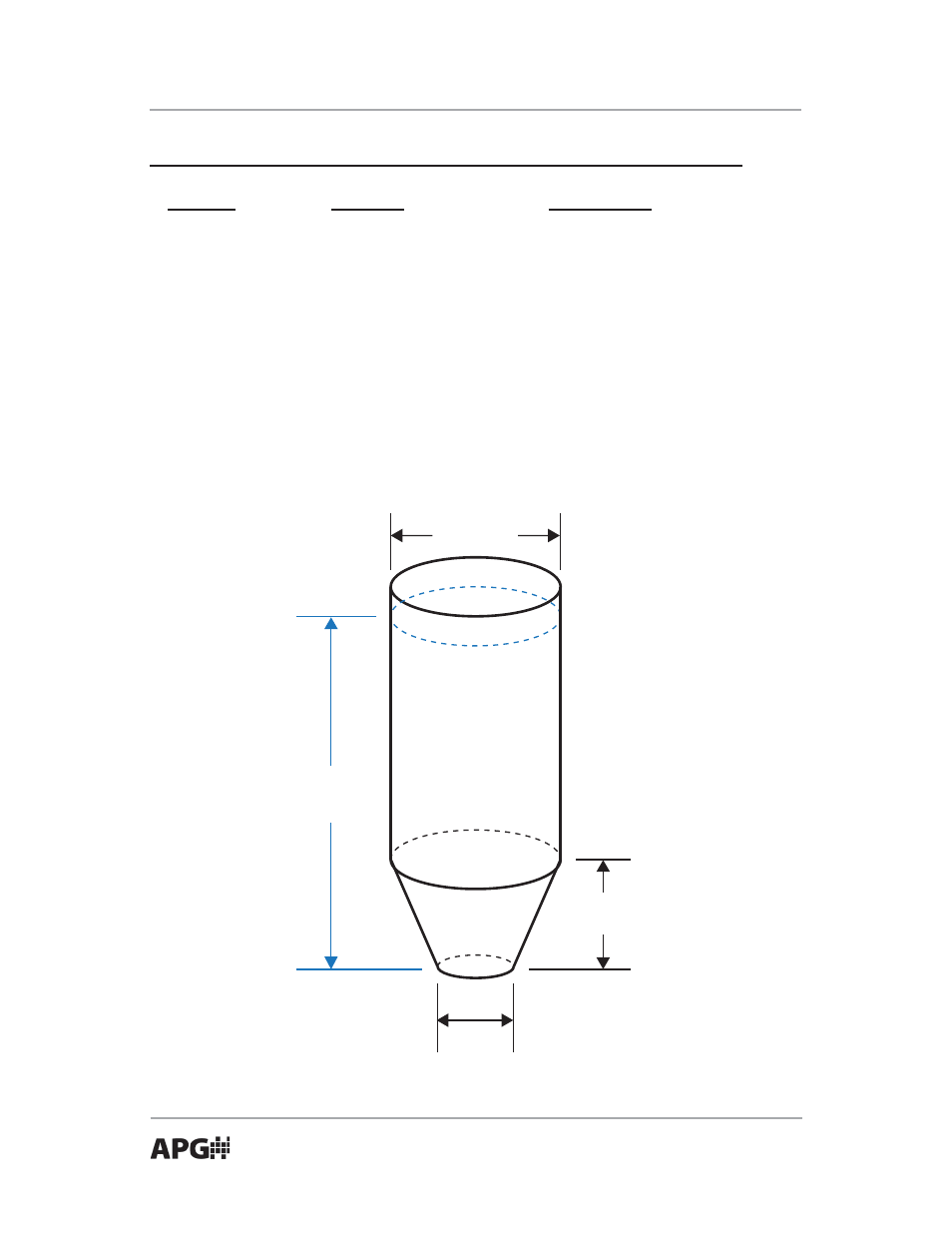

Diameter
Full
Level
Cone
Length
Cone
Diameter
