On/Off Button
Primary Function: Press and hold for 1 second to turn on/off the gauge.
Secondary Function: Press once to access the main setup menu.
Z Button
Primary Function: Press to “zero” the gauge reading (the reading must be less
than 5% of full-scale in order to zero the gauge).
Secondary Function: Cycles through the options in the setup menus.
S Button
Primary Function: Cycles between the current, maximum, and minimum pressure
readings.
Secondary Function: Used to accept the displayed option while in the setup
menus.
Secondary Function: Resets the peak-hold reading when the peak-hold feature
is enabled.

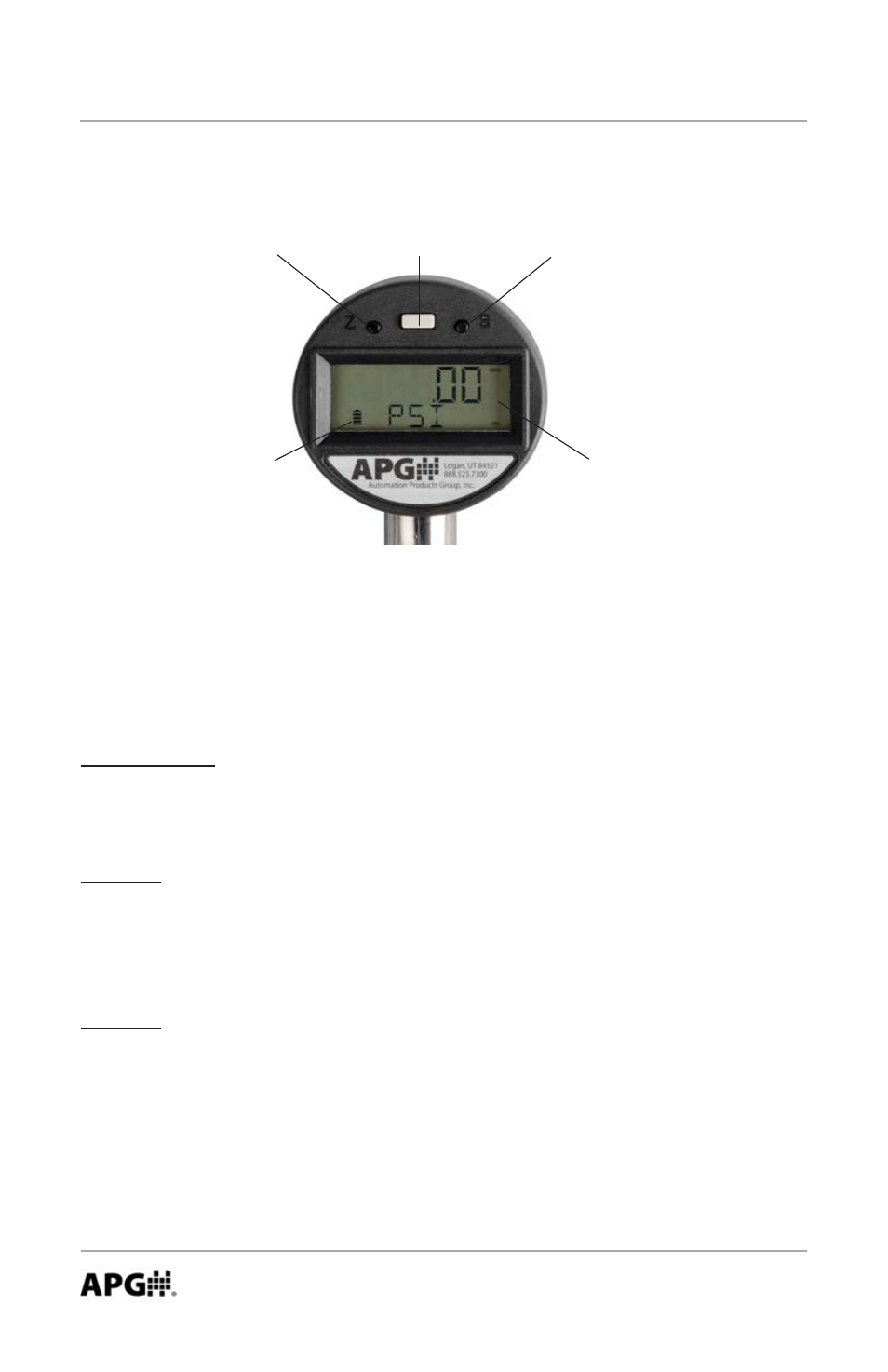

Z Button On/Off Button S Button
Battery Meter Bar Graph
Each of the three buttons on the PG5 performs multiple functions. The primary
function applies when in standard operating mode. The secondary functions
are used for programming operations and when special features, such as Peak-
Hold, are enabled.
Programming the PG5
