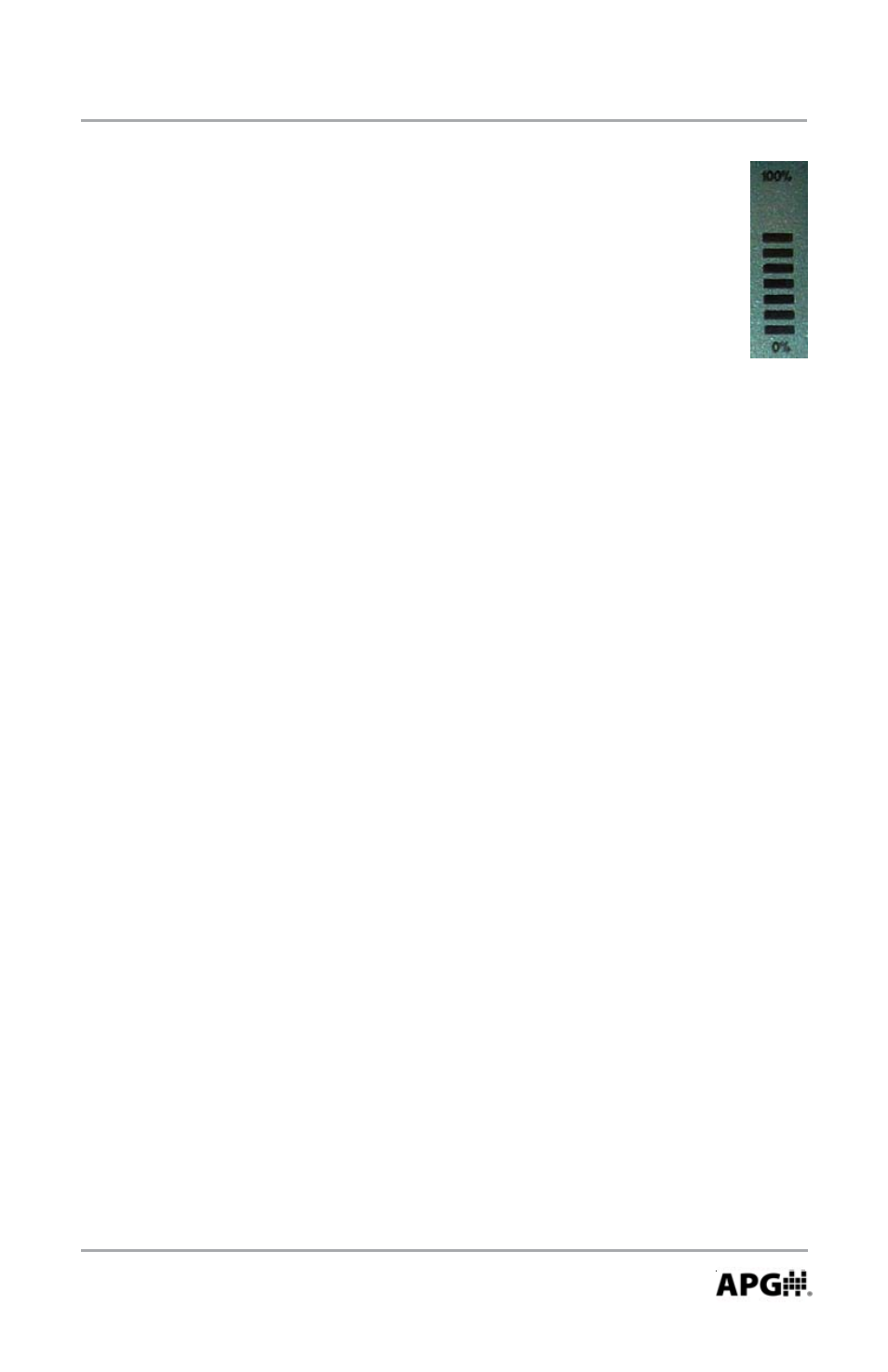

Bar Graph 0% (bAR 0) & 100% (bAR100) Settings:
Allows the user to define the reading values associated with 0% and
100% on the display bar graph. Bars will appear/disappear in 10%
increments of the total span between the two values.
NOTE: The 0% reference does not have to be the lower pressure
setting; 0% can be set as the higher pressure setting, thereby
causing the bar graph to increase as the pressure decreases.
Negative pressure settings can also be used as either the 0% or 100%
reference points.
Setting the Display Bar Graph:
Step 1: Press the On/Off button once to enter the main setup menu.
Step 2: Press (Z) to cycle through the options until AdVSET is displayed.
Step 3: Press (S) to access the Advanced Settings menu.
Step 4: Press (Z) to cycle through the options until BAR 0 is displayed.
Step 5: Press (S) to access the Bar Graph 0% value. A 5-digit number will
appear with the first digit flashing.
Step 6: Press (Z) to change the value of the first flashing digit
(options: 0-9 or “-”).
Step 7: Press (S) to accept the value of the flashing digit and advance to the
next digit......repeat steps 7 and 8 until the desired 0% reading is fully
entered. After the last digit is accepted by pressing (S), the display will
return to the main options menu.
Step 8: Press (S) to reenter the Advanced Settings menu.
Step 9: Press (Z) to cycle through the options until BAR100 is displayed.
Step 10: Repeat Steps 5-7 to enter the Bar Graph 100% value.
