Tare (TARE):

Enabling the Tare function will set the current pressure reading as the zero
reference pressure in order to measure a net change in pressure as opposed to
measuring the gross pressure.

Enabling the Tare feature:

Step 1: Press the On/Off button once to enter the main setup menu.
Step 2: Press (Z) to cycle through the options until TARE is displayed.
Step 3: Press (S) to access the Tare setting options.
Step 4: Press (Z) to toggle between OFF and ON.
Step 5: Press (S) button to apply the displayed options and return to main

setup menu.

NOTE 1:

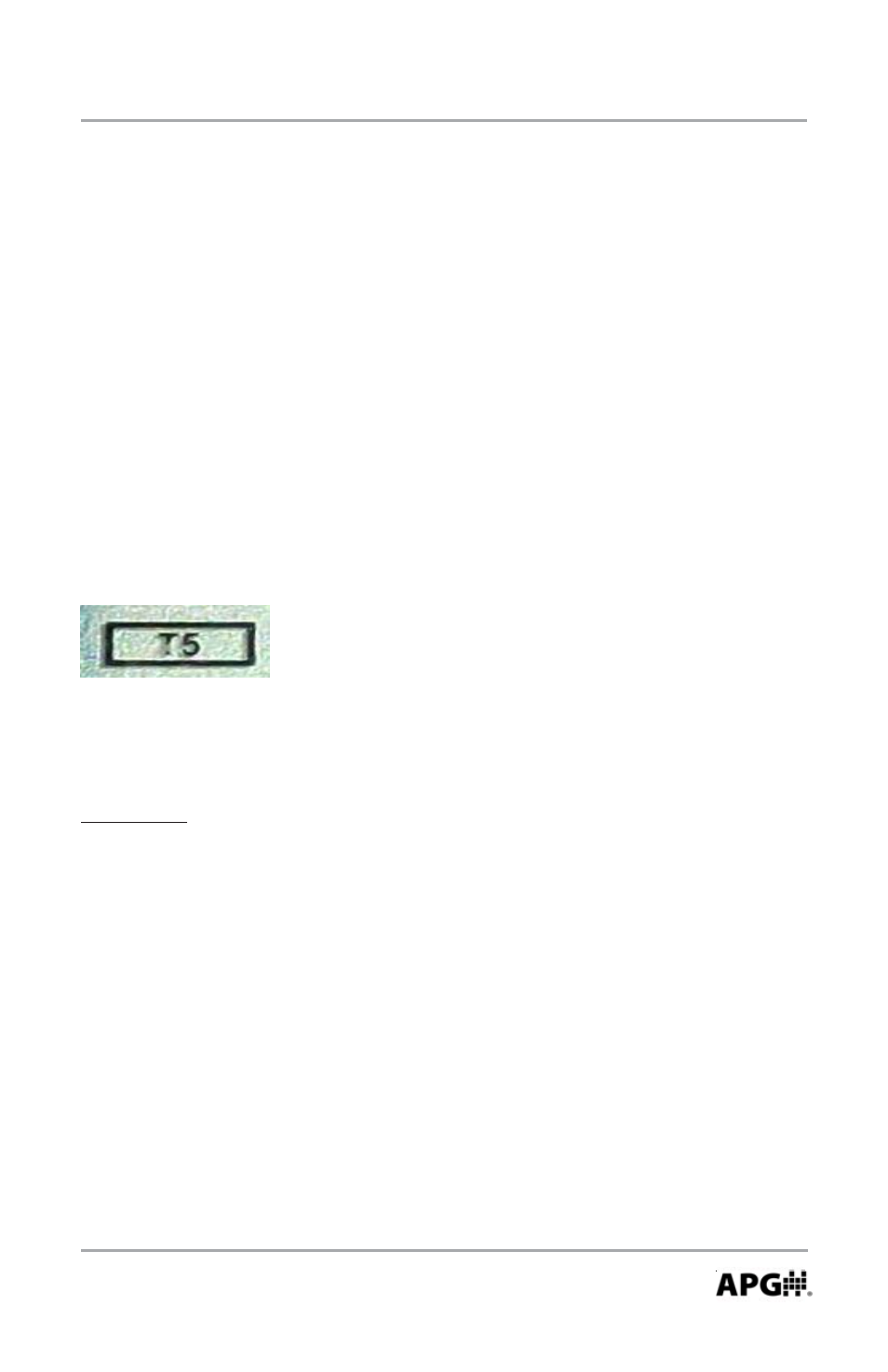

When tare function is enabled, the T5 symbol will appear in the lower

left corner of the display.

WARNING:

Do NOT disconnect the gauge from the pressure fitting while the

tare function is enabled. The gauge may still be under pressure
even though the reading shows 0.

NOTE 2:

If the maximum gross full-scale pressure value is reached while the

Tare feature is enabled, the PG5 will automatically disable the Tare
feature and return to reading the gross pressure in order to help
prevent the user from unwittingly overpressuring the gauge.
