Peak-Hold (P HOLd):

When the Peak-Hold is enabled, the gauge will display the “peak” or maximum
pressure reading since the gauge was powered on or the Max/Min value was
reset.

NOTE 1:

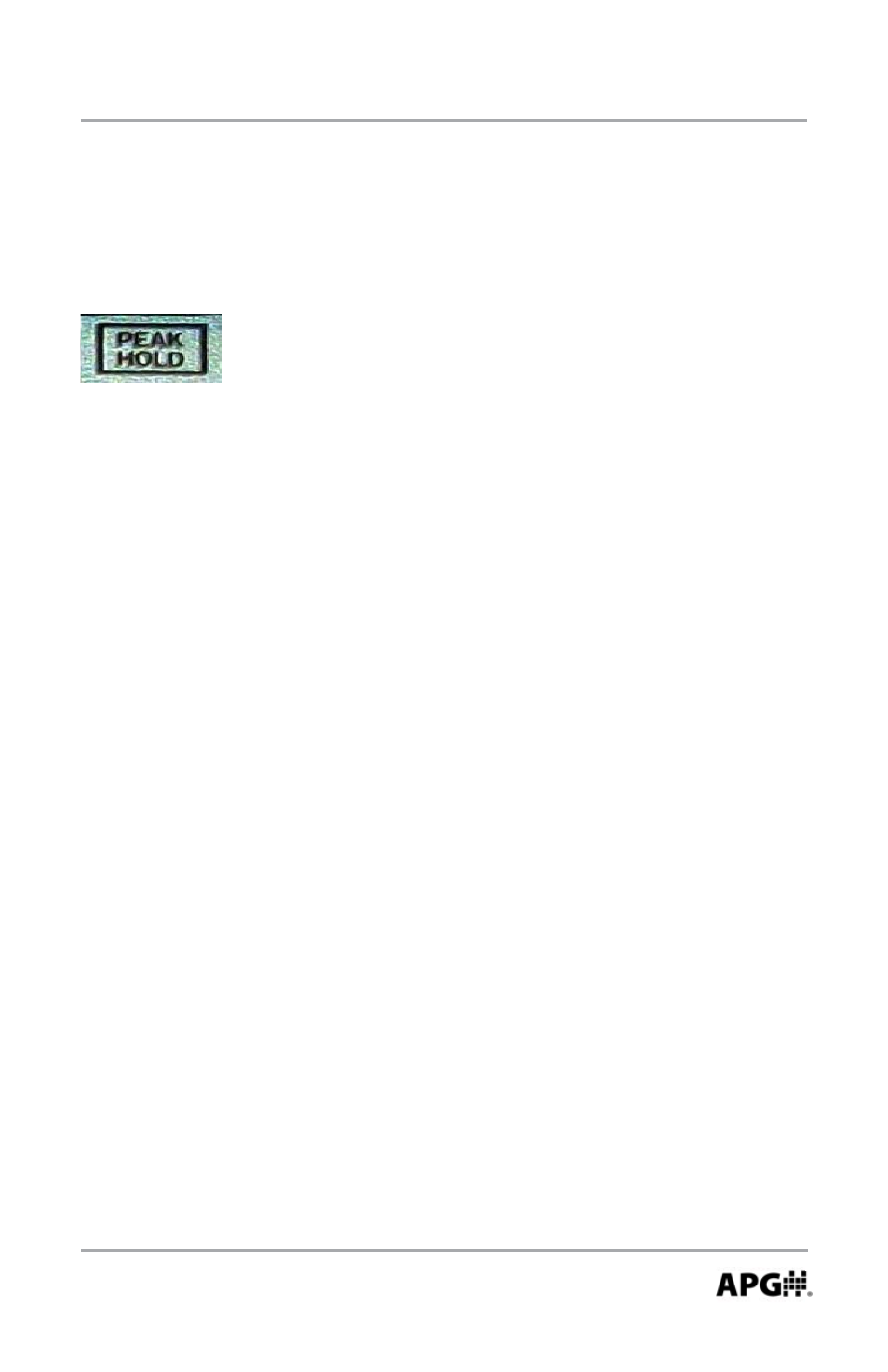

When the Peak-Hold feature is enabled, a small box containing the

words PEAK HOLD will be displayed in the upper left corner of the
display.

Options: Off or On

Enabling the Peak-Hold feature:

Step 1: Press the On/Off button to enter the main setup menu.
Step 2: Press (Z) to cycle through the options until P HOLd is displayed.
Step 3: Press (S) to access the Peak-Hold setting options.
Step 4: Press (Z) to toggle between OFF and ON.
Step 5: Press (S) to apply the displayed setting and return to main setup menu.

NOTE 2:

The peak value can be reset by pressing (S) with the Peak-Hold

function enabled.
