Anchor F3 FRAME TENT User Manual
Page 7
7

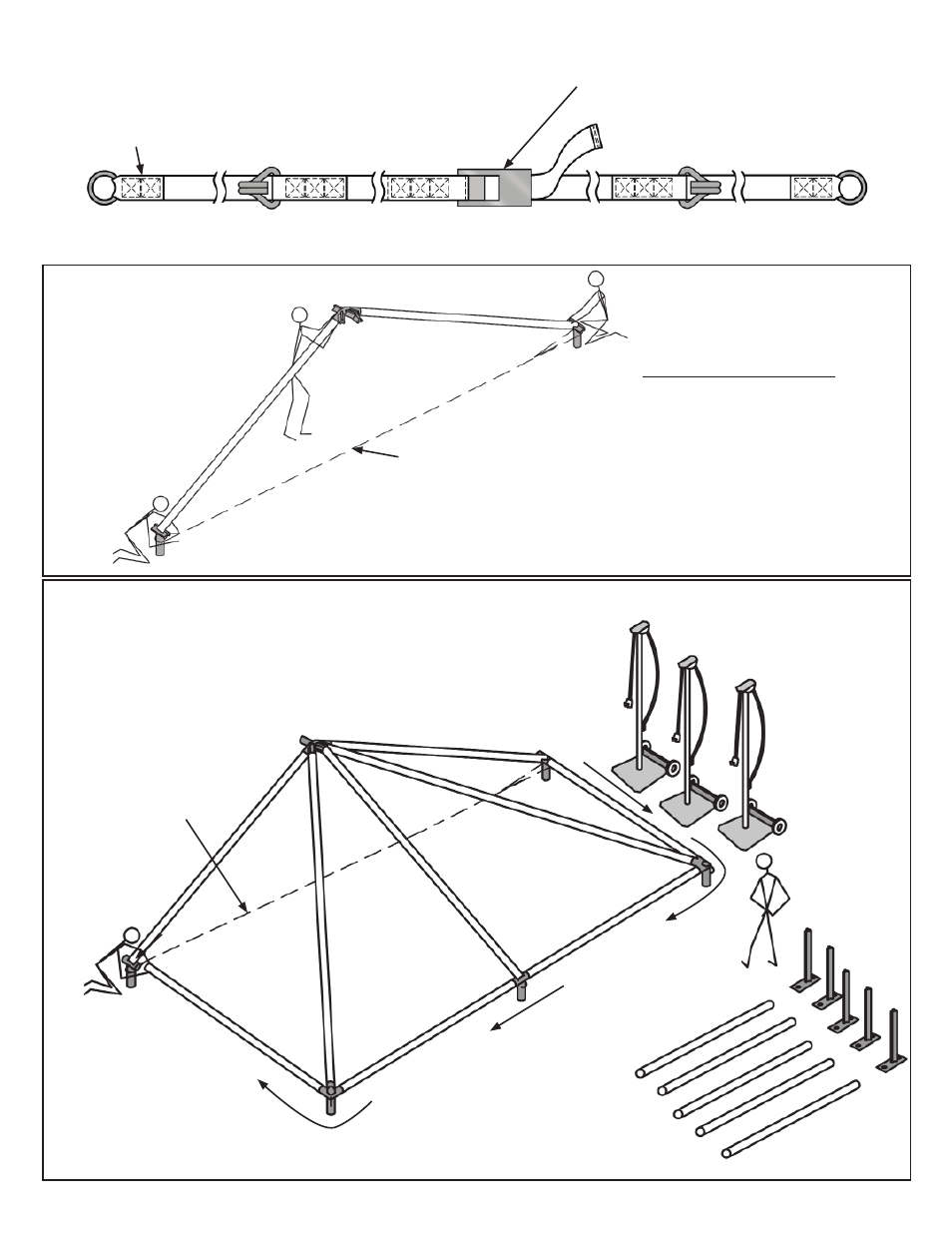

Installation Cross Web
STEP 3 Connect eave purlins to weldments
START HERE
END
HERE
After rafters and hips are connected to weldments, Start at one of the rafters and
connect eaves to weldments going from one side to the other all the way around.
Figure 3
Figure 2c
After ends are attached, tension the
strap using the cam buckle.
Important Dismantling Note: For
Ease in Dismantling (30’ model),
Installation Cross Web must be
reinstalled.
For 30’ Frame only
Installation Cross Web
Figure 2b
Installation Cross Web Installed
on 30’ Frame.
Installation Cross Web
Installed on 30’ Frame.
Cross web is installed by running ends
of Cross web around Int. weldment and
thru U-Bolt on outside of weldment.
Attach ring back to hook.
