Anchor NAVI-TRAC LITE 30 WIDE - Manual (Page 5)

5
E-15
RG-15
R-30
RH-30
H-30
P-15
RB
U-8
U-8
BA
CW
EW
RW

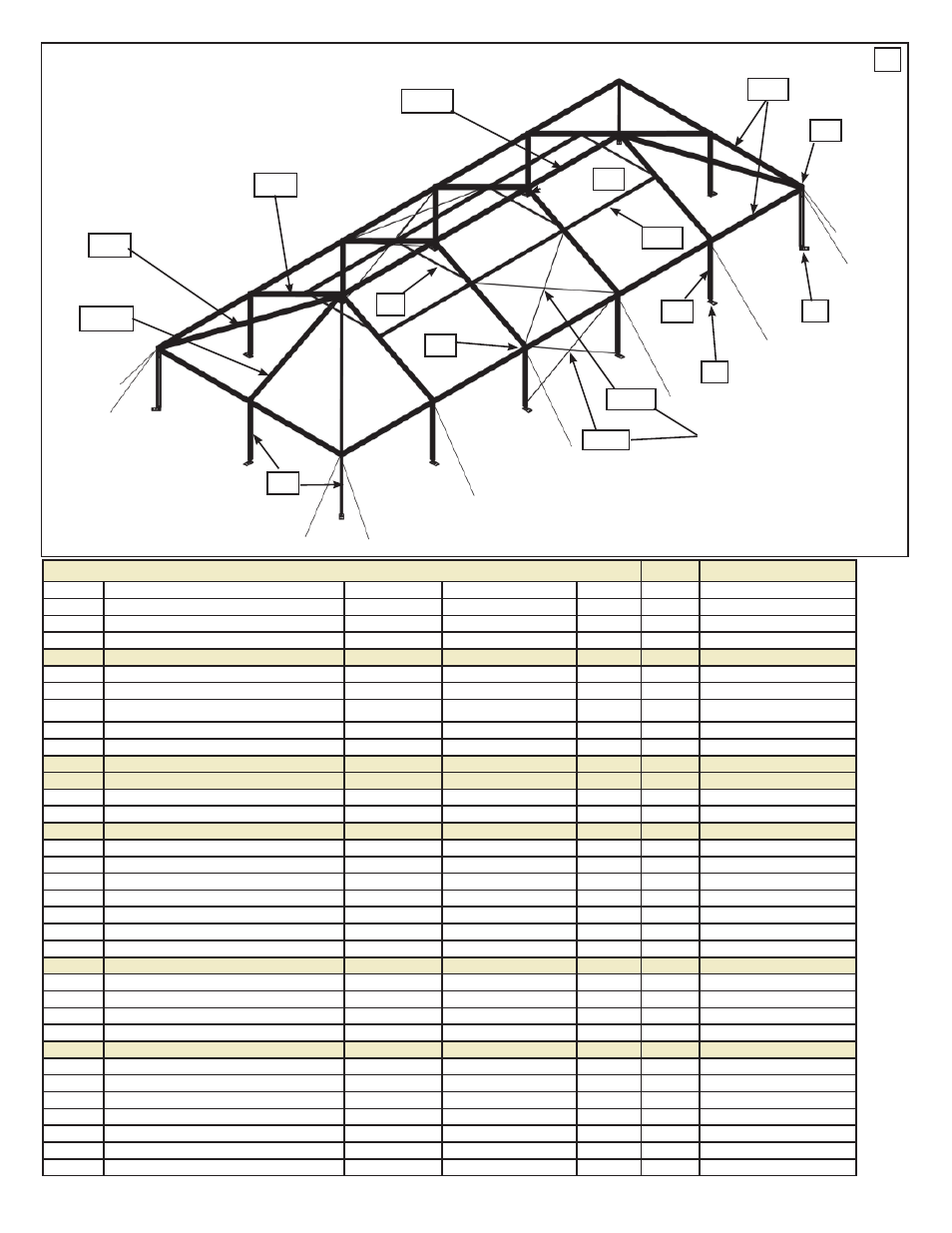

30’ NAVI-TRAC LT FRAME TERMINOLOGY
3
BA
X8-15
XR-15
REQUIRED ONLY
ON UNITS 60 FT OR
MORE IN LENGTH
COMPONENT CHART QTY QTY
LABEL PARTS FOR HIP END UNITS 30’ x 30’ 15’
(LETTER (For Gabled End, see Appendix 1) POSITION ID PART HIP EXTENSION
ON DWG) COMPONENT DESCRIPTION CODE CODE # END MID
TOP EXTRUSIONS WITH CHANNELS:
E-15 EAVE - 15’ 8004410 8 2
RG-15 RIDGE W/ HOOKS - 15’ 8004415 0 1
R-30 RAFTER 30’
WHITE BRACE
HOLE
8004440 2 2
RH-30 RAFTER 30’ W/ HOOKS 8004445 2 0
H-30 HIP - 30’ W/ HOOKS 8004435 4 0
PURLINS AND BRACES:
P-15 PURLIN, 15’ 80420 0 2
RB RIDGE BRACE 3580660 1 1
UPRIGHTS:
U-8 UPRIGHT - 8’ 8004450 8 2
WELDMENTS, FITTINGS & PLATES:
BA BASEPLATES, ADJUSTABLE, 2-HOLED 8004505 8 2
CW CORNER WELDMENTS W/ PINS 8004525 4 0
RW RIDGE WELDMENTS W/ PINS 8004545 1 1
EW EAVE WELDMENTS W/PINS 8004530 4 2
CABLES AND MORE
TP TENSION LOCK PIN 3102865 2 2
X8-15 X-CABLE, 8’ UPRIGHT 15’ BAY GREEN NAVLTCS-BAY15-U8 8004560 0 4 (OVER 60’L ONLY)
XR-15 X-CABLE, RAFTER 15’ BAY BLUE NAVLT-BAY15 8004570 0 4 (OVER 60’L ONLY)
INSTALLATION TOOLS:
LONG LIFTING BAR W/ CRADLE 80702
SHORT LIFTING BAR W/ CRADLE 80701
FABRIC PULL ROPES 80730
WHEELED PANEL GUIDE/ ASSEMBLIES 80731
PUSH POLE ASSEMBLY 80707
FABRIC END FITTING FOR PUSH POLE 80732
DROP CLOTH (8’ x 30’) 80705
OTHER COMPONENT NOTES:
STAKES AND GUYS ARE NOT INCLUDED IN THIS TABLE. (1) 1” X 30” STAKE
MUST BE USED FOR EACH BASE PLATE. EACH GUY REQUIRES THE USE OF A
1 1/8” X 42” STAKE.
