APPENDIX #2
30’ NAVI-TRAC LT CLEARSPAN
10’
60’
30’
30’
10’
70’
59 60
SINGLE OPPOSING
CABLES ON
OPPOSITE SIDES
OF BOTH END BAYS.
X-CABLED BAY FOR
EACH ADDITIONAL
60 FT OF LENGTH

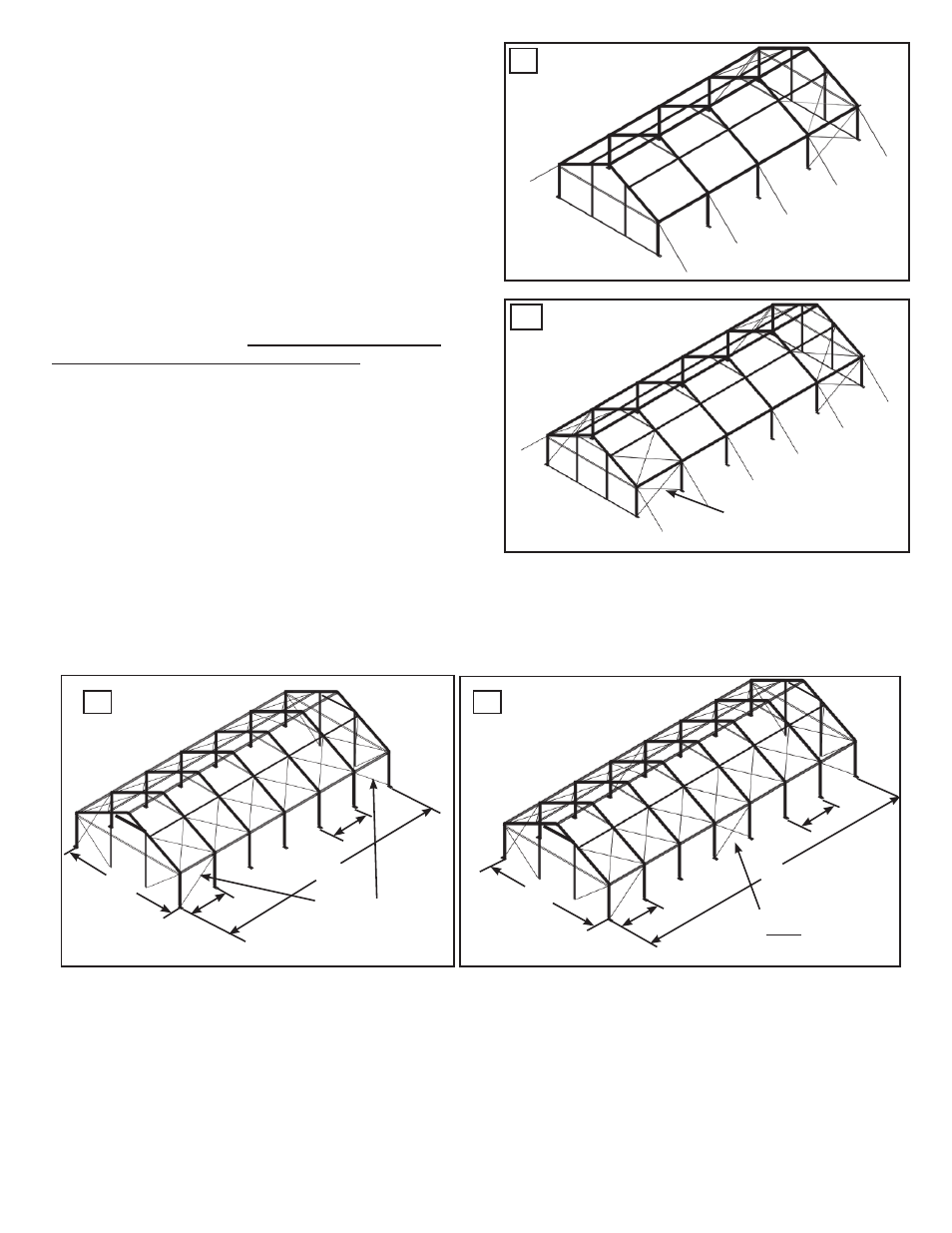

CLEARSPANS UP TO 60 FT IN LENGTH CLEARSPANS EXCEEDING 60 FT IN LENGTH
Caution: While standing beams, be sure to “foot”
the baseplate so that the beam does not slide out from
under the workers pushing it up.
After the first bay has been X-cabled, the installation
safety guys can be removed.
Gabled Ends are installed in the same way as the Hip-
Gabled units described above.
As before, be sure to guy out the frame before installing
fabric.
Note: When the overall length of the unit exceeds 60 ft,
an additional bay must be X-cabled for stability (see fig.
58). To meet design loads, no more than 60 ft of con-
secutive length can remain non-X-cabled.
Additional
X-Cabled Bay
57
58
