20
Groundbar keeper for interme-
diate upright. Groundbar keeper for Corners.
Prong with no hole in-
serts up into upright.
Cross sectional view of upright.
This end to outside of tent.
Upright prong fi ts into this part of
upright.
Corner Upright
Wall with kedar already slid
into upright.
Groundbar slid into
pocket.
Inserting keeper up into
bottom of upright on outside
corner of tent.
Slide groundbars onto
prongs and pin into place as
shown.
Bottom View looking up
into upright with Groundbar
keeper inserted.

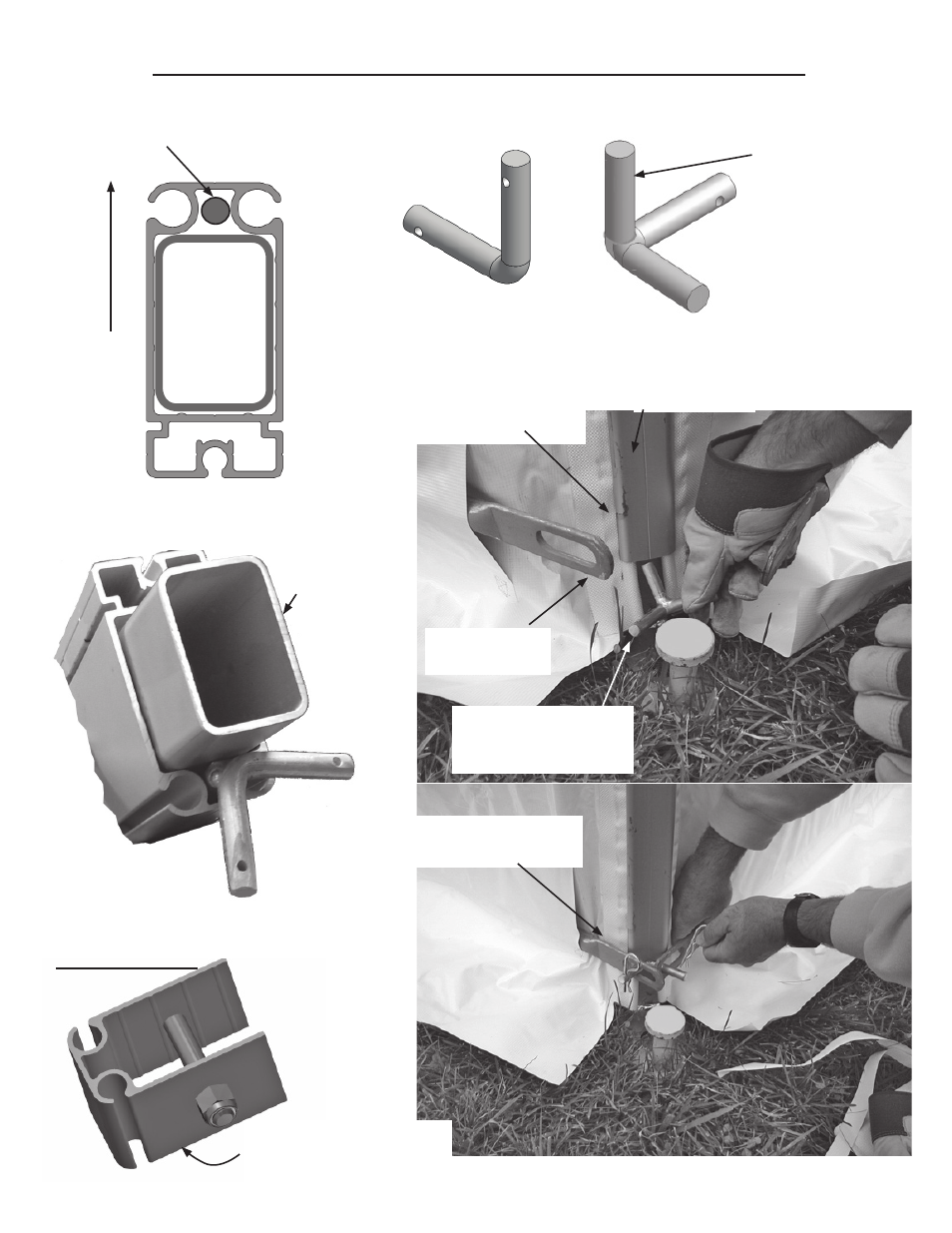

Navi-Trac Ground Bar Keeper Instructions
Base Plate Inserted
into upright.
For Gable End Uprights, This
Gable End Leg Cover may be
attached at bottom of uprights
for use with groundbar keepers.
Gable End Leg Cover
