Anchor NAVI-TRAC 50 WIDE GABLE-END User Manual
Page 16
16

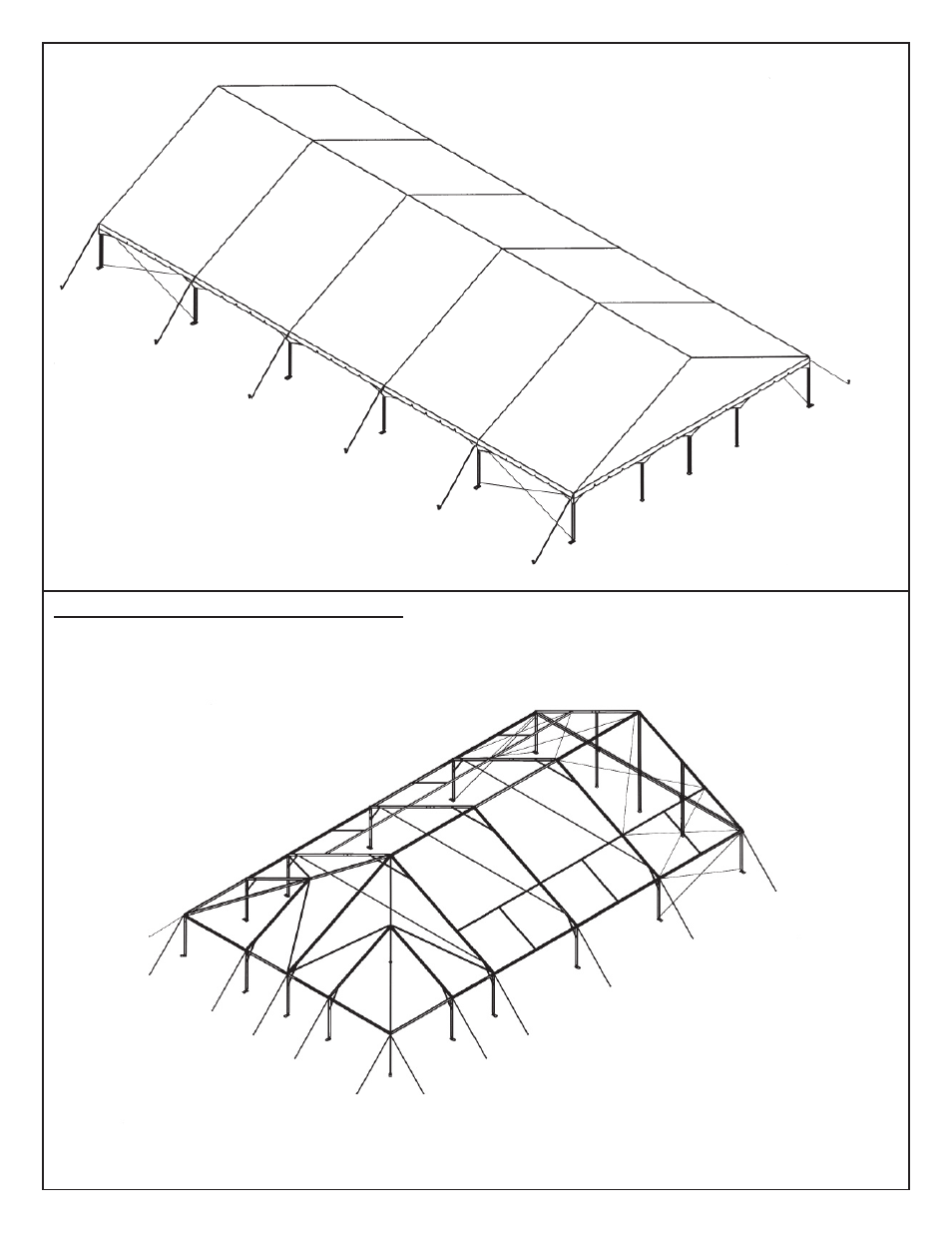

50’ x 100’ GABLED END NAVI-TRAC
ALTERNATE HIP/GABLED END COMBINATION USING KIT
#3 FOR THE HIP COMPONENTS (SEE THE FOLLOWING
PAGE FOR ASSEMBLY REFERENCE)
COMPLETED 50’ GABLED END NAVI-TRAC WITH
FABRIC INSTALLED AND TENSIONED, GUY
WEBS STAKED AND RATCHETED TIGHT. TO
MEET ENGINEERING REQUIREMENTS WALLS
SHOULD BE INSTALLED ON ALL (4) SIDES.
