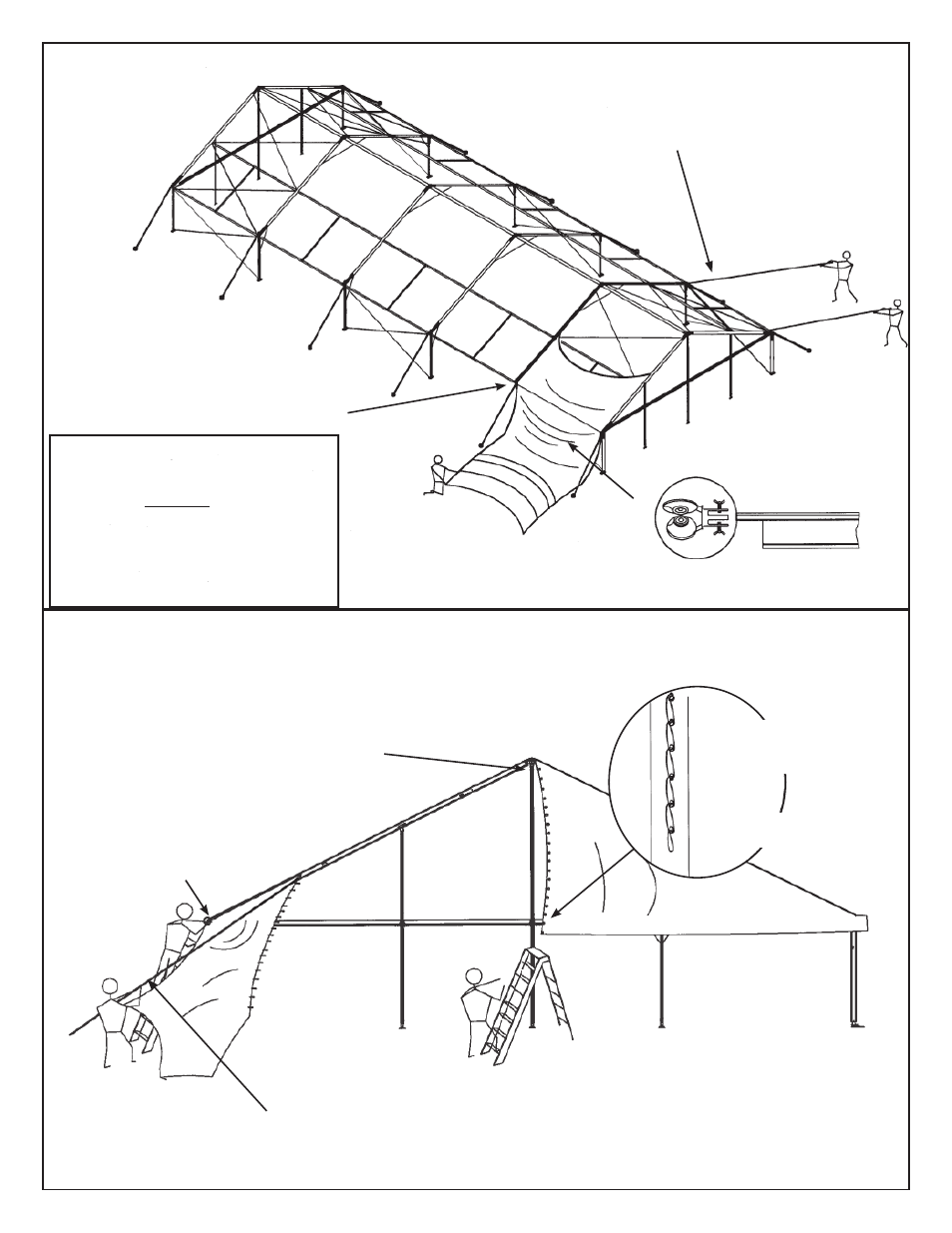

INSTALLING MID PANEL
PULL MID PANEL UP AND OVER THROUGH
CHANNELS IN RAFTER EXTRUSIONS.
WHEELED PANEL
GUIDE
RAFTER
INSERT FINGERS OF WHEELED PANEL GUIDE
INTO THE OPEN END OF THE RAFTER AND
WELDMENT. TIGHTEN THE BUTTERFLY NUT.
REVERSE FOR OPPOSITE SIDE OF BAY.
INSTALLING 2-PC GABLED END
USE LONG LIFTING
POLE TO PUSH EACH
HALF TO PEAK.
WHEELED PANEL
GUIDE AT EAVE
SECURE LACE LINE AT TOP
& BOTTOM WITH FASTEX
BUCKLES
NOTE: TO ENSURE THAT MID
FABRIC GOES IN SMOOTHLY AND
TO MINIMIZE CHANCE OF DAMAGE
TO FABRIC, ALWAYS USE THE
WHEELED PANEL GUIDE TO FEED
KEDAR INTO FRAME CHANNELS.
SEE PAGE 15 FOR INFORMATION ON
HOW TO ATTACH PULL ROPES TO
FABRIC.
TIE OFF BOTTOM
LOOP
STANDARD LOOP
& GROMMET
LACING
