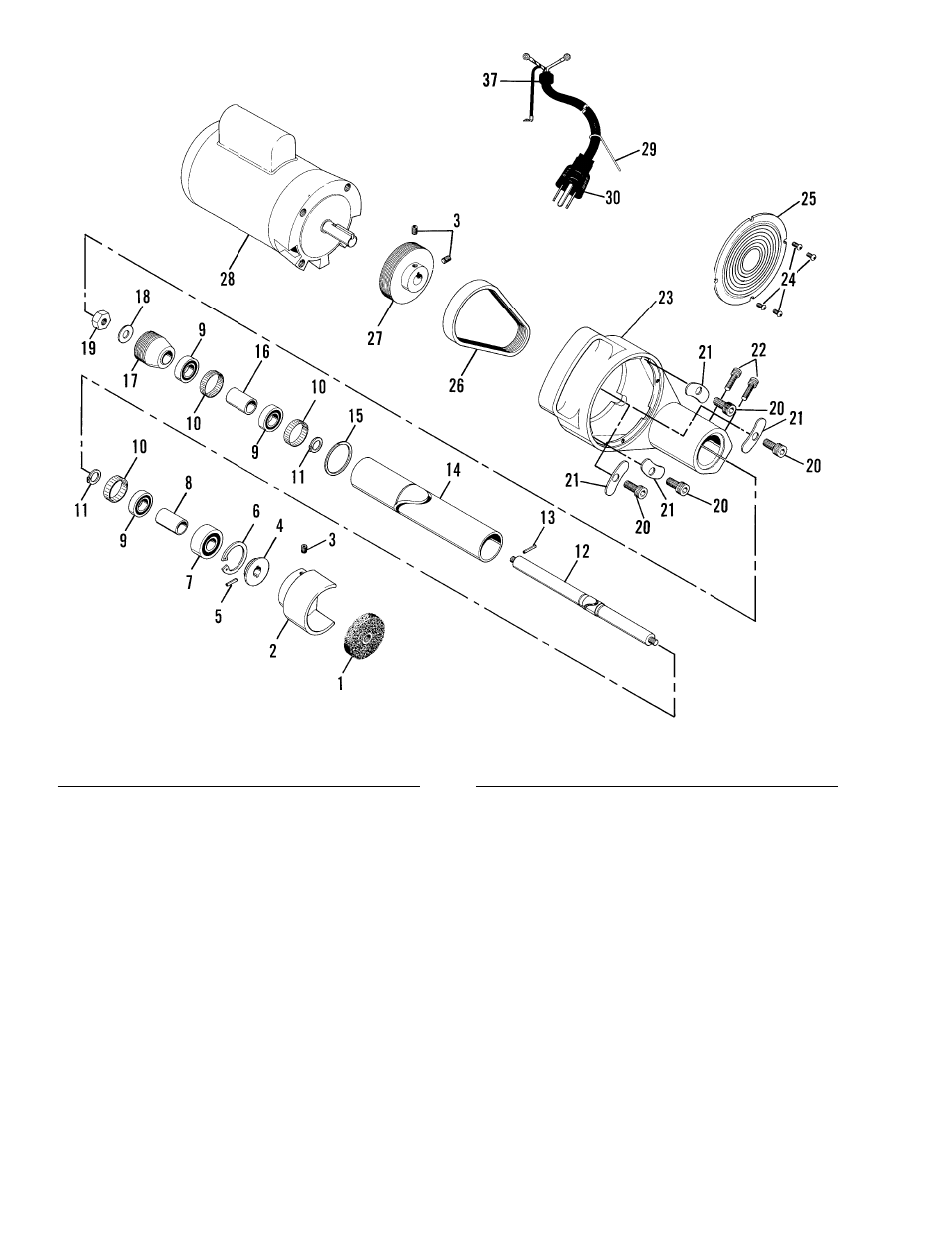

AMMCO 4850 Brake Drum Grinder User Manual
Page 4
PART
ITEM
NO. QTY. DESCRIPTION
*1
910245
1
Grinding Wheel
2
910990
1
Grinding Wheel Guard
3
902308
3
Set Screw
4
921202
1
Seal Washer
5
904006
1
Roll Pin
6
921041
1
Retaining Ring
7
927103
1
Bearing
8
927104
1
Bearing Spacer
9
927562
3
Bearing
10
921045
3
Ring
11
921043
2
Retaining Ring
12
921188
1
Drive Tube Assembly
13
901963
1
Roll Pin
14
921187
1
Spindle Housing
15
903093
1
Retaining Ring
16
921018
1
Bearing Spacer
17
921028
1
Driven Pulley
18
900278
1
Washer
19
903184
1
Nut
PART
ITEM
NO. QTY. DESCRIPTION
20
921046
4
Screw
21
921022
4
Shoe
22
900207
2
Screw
23
921031
1
Drive Case
24
920615
4
Screw
25
921029
1
Cover
26
921044
1
Belt
27
921027
1
Drive Pulley
MOTOR ASSEMBLY #921196:
28
921200
1
Motor, w/switch
29
920287
1
Wheel Removal Tool
30
910749
1
CordSet
31
921200-1
1
Switch
37
8150128
1
Connector
921203 07 10/06
©Copyright 1998 Hennessy Industries and AMMCO Tools All Rights Reserved Printed in U.S.A.
* Replacement Wheel: #905393 (Pkg. of 3)
