American Lighting PLR-36RGB-150 - Manual

Polar RGB
WARNING: These products may represent a possible shock or fire hazard if improperly installed or attached in any way.
Products should be installed in accordance with these instructions, current electrical codes and/or the current National
Electric Code (NEC).
WARNING: To avoid electrical shock, disconnect or disable power at the source prior to installation or maintenance.
IMPORTANT SAFETY INSTRUCTIONS
1. All units must be disconnected from power source before installing or servicing in any way.
2. Do not route cords or units through walls, doors, windows or any similar part of a building structure.
3. When using outdoors, all connections and caps should be tightly secured with silicone or the like to
preclude the entrance of water. Controller must be secured in a weatherproof enclosure when used
outdoors.
4. Do not use if there is any damage to the unit or power cord’s insulation. Inspect periodically.
5. Do not submerge in water or liquids. Do not use in the vicinity of standing water or liquids.
6. Secure units using clips and/or track designed for this product. Do not secure unit or its power cord with
staples, nails or
the like that may damage insulation.
7. Do not subject the product to continuous flexing.
Installation instructions for PLR-36RGB-150, 120V Reels
www.americanlighting.com
*The LED-RGB-3S-1/30-120 controller has a polarized plug (one blade is wider than the other) as a safety feature to
reduce the risk of electric shock. This plug will fit in a polarized outlet only one way. If the plug does not fit fully in
the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Never use with an extension cord
unless plug can be fully inserted. Do not alter the plug.

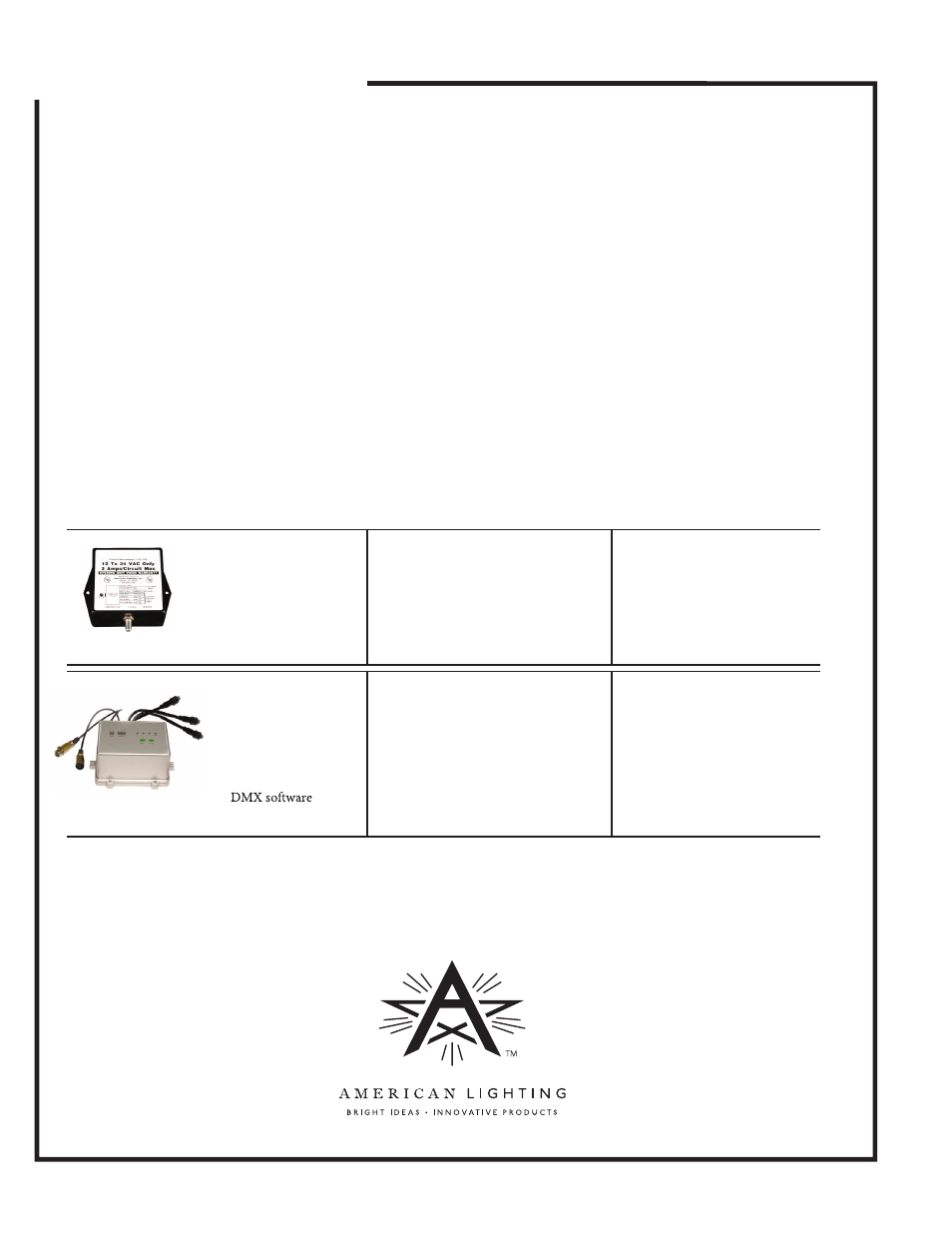

Controller Features + Required Accessories = Maximum Run
• Color select
(stop switch)
• Color fade
• Polarized plug
• Fade speed
control (dial)
• DMX in + out leads
• Dual output
• Programmed presets
• Fade speed control
• Grounded power cord
via mode/value
buttons on unit or
PLR-RGB-EC(LENGTH)
Available LENGTHs include:
3 foot, 10 foot and 20 foot
Available LENGTHs include:
3 foot, 10 foot and 20 foot
150.9 feet
150.9 feet x 2
(dual output)
PLR-RGB-EC(LENGTH)
for each output used
LED-RGB-3S-1/30-120*
LED-4WR-490CTRL
RV1428
