American Lighting LVPX Series - Manual

120 Volt Xenon Puck
Light Installation Instructions for LVPX Series

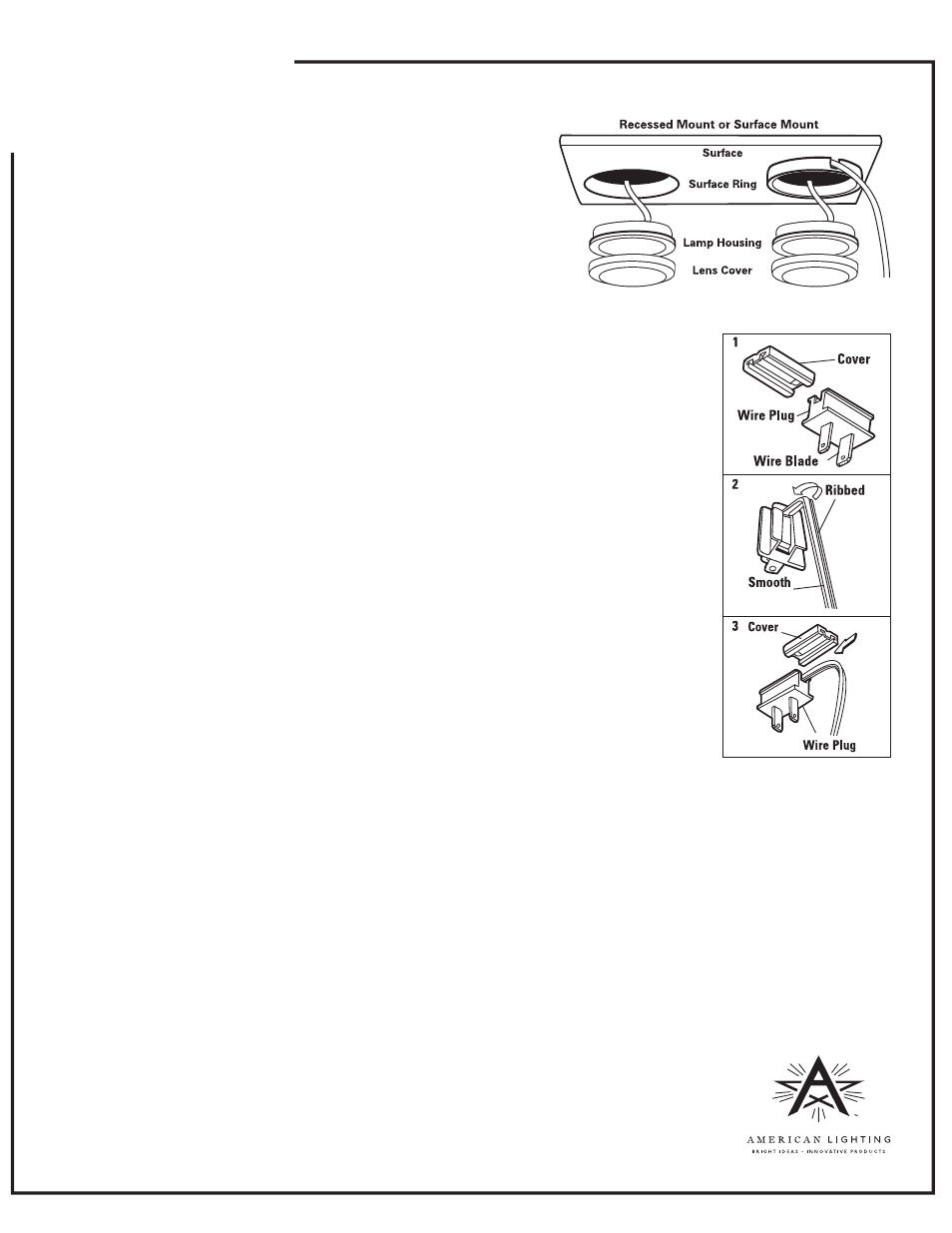

Surface Mounting Instructions:
1. Locate desired position for the cabinet light.
2. Remove the lens cover from housing by rotating counter-clockwise.
3. Route the wire through surface ring notch, or if desired drill a hole
through the mounting surface and route wires through hole.
4. Make sure there is no contact between the hot lamp, lampholder, or
reflector, and any combustible material such as plastic or paper goods,
or the wire insulation.
5. Mount surface ring and housing assembly with the three wood screws provided.
6. Replace lens cover by rotating clockwise.
7. Route unit's wire to "Wire Plug". CAUTION: Do not route wires and extension
cords through walls. Use for external cabinet applications only.
8. When installing pucks inside entertainment centers, china cabinets or other
similar portable furniture, do not hardwire.
9. Do not conceal power supply cord (or power supply) inside a wall, ceilings, or floors.
10. To attach plug, Insert trimmed end of cord into plug pocket, nearest the polarized blade (wide blade).
Be sure that the ribbed side of cord goes over the right piercing point, and smooth side
of cord goes over the left piercing point. (See Illustration 2)
11. Slide plug cover back onto wire plug (Illustration 3), and route plug to nearest convenience outlet.
12. Multiple pucks can be linked together with 12" and 24" extensions.
Recessed Mounting:
CAUTION! Risk of fire! Install as recessed only where top of cabinet is not enclosed.
1. Drill a 2
1/8 inch hole in the desired location.
2. Remove the lens cover from housing by rotating counter-clockwise.
3. Do not use surface can for recessed applications.
4. Feed wires through hole and push light housing into hole. Make sure there is no contact between
the hot lamp, lampholder, or reflector, and the wire or any combustible material such as plastic or
paper goods. Secure the light supply leads to avoid the likelihood of the leads contacting the
cabinet light.
5. Replace lens cover by rotating clockwise.
6. Route unit's wire to "Wire Plug". CAUTION: Do not route wires and extension cords through walls. Use
for external cabinet applications only.
7. If wire plug cover is still attached to plug, slide cover off by pushing away from plug. (See illustration 1)
8. Insert trimmed end of cord into plug pocket, nearest the polarized blade (wide blade). Be sure that the ribbed
side of cord goes over the right piercing point, and smooth side of cord goes over left piercing point. (See Illustration 2)
9. Slide plug cover back onto wire plug (Illustration 3), and route plug to nearest convenience outlet.
IMPORTANT SAFETY INSTRUCTIONS: PLEASE SAVE!
This fixture has a polarized plug (one blade is wider than the other) as a safety feature to reduce the risk of electric shock. This plug will fit in a
polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Never
use with an extension cord unless the plug can be fully inserted. Do not alter the plug.
WARNING! To reduce the risk of fire, electric shock, exposure to excessive UV radiation, or injury to persons: LIGHTED LAMP IS HOT!
TO REPLACE BULB:
1. Unplug unit or turn roll switch to "off" position and allow lamp to cool before replacing bulb.
2. Use only 20 watt/120 volt maximum Xenon bulb (type JCDGY8 or G-8).
3. Twist lens cover counter-clockwise to remove.
4. Insert bulb.
5. Replace lens with a slight clockwise motion.
ADDITIONAL SAFETY MEASURES:
1. Bulb gets hot quickly. Contact only switch/plug when turning on.
2. Do not touch hot lens, lens holder or enclosure.
3. Do not remain in light if skin feels warm.
4. Do not look directly at lighted bulb.
5. Keep lamp away from curtains, draperies and similiar materials that may burn.
6. Do not operate lamp with a missing or damaged lens.
