This plug contains electrical fuses as a safety feature.

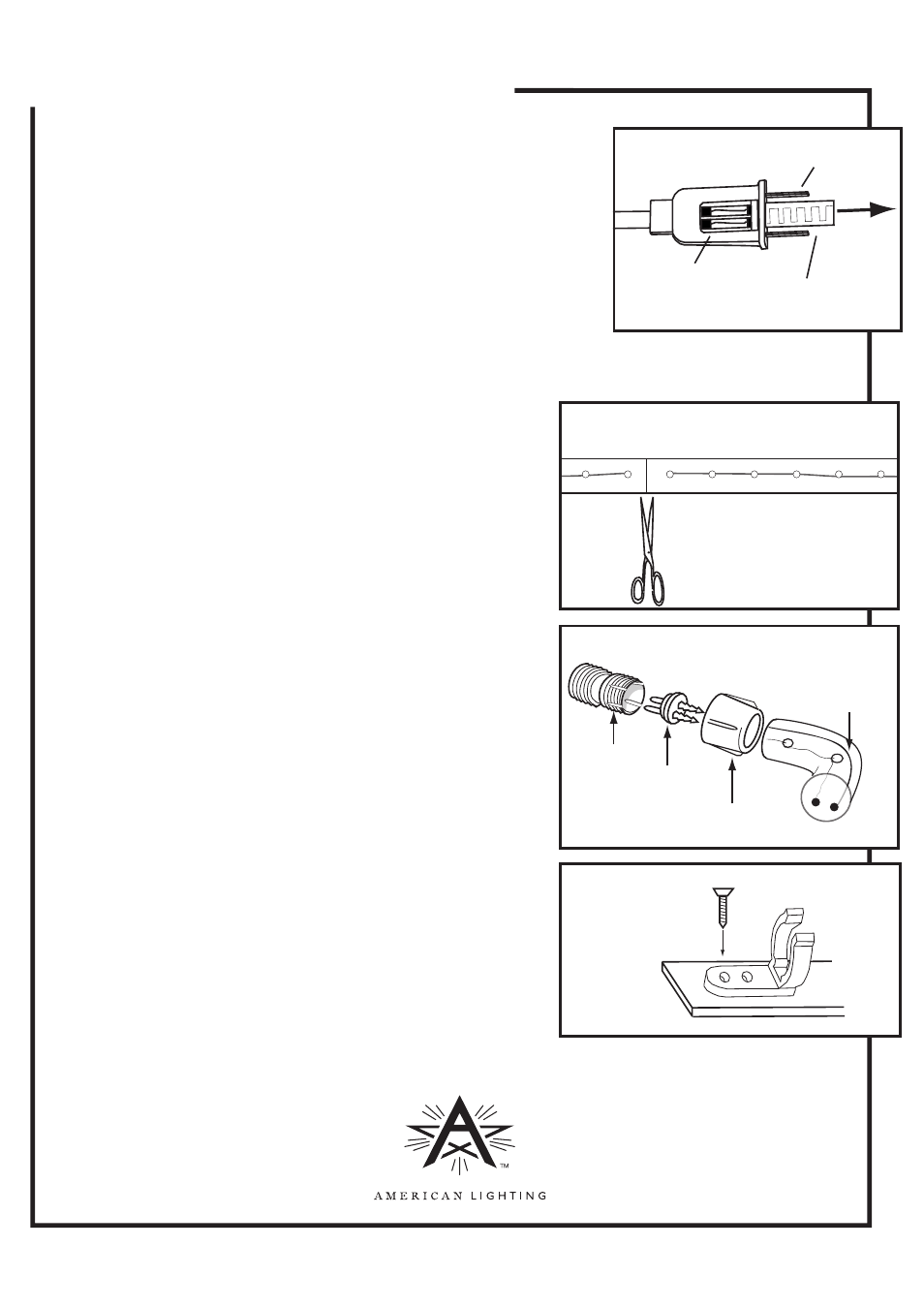

To replace the fuses (see Figure 1):
1. Disconnect power before replacing the fuses.
2. Grasp plug and remove from the receptacle or other outlet device.
3. Do not unplug by pulling on the cord.
4. Slide fuse access cover towards prongs of plug to open (see Figure 1).
5. Remove old fuses carefully by turning over plug to empty the fuseholder.
6. Never attempt to replace the fuse with a higher wattage fuse.
Risk of fire. Replace only with 5 Amp 120V fuses (provided with set).
7. Place new fuses in holder.
8. Close the fuse access cover on the plug by sliding fully to original closed position.
WARNING: Risk of fire. Do not replace attachment plug!
Plug contains a safety feature (fuses) that should not be removed.
Discard cord set if the attachment plug is damaged.
CUTTING ROPE LIGHT (see Figure 2)
NOTE: Do not exceed 150 foot maximum run distance in
any single run!
1. Determine the required length for Rope Light.
2. Cut the Rope Light at the end/beginning of the nearest series
increment. NOTE: Rope Light is wired in series parallel and
every 24” comprises a series increment. Cutting anywhere other
than the end/beginning of a series increment will result in a loss
of 24” (total) of light. See Figure 2.
3. Attach power connector to cut Rope Light section per Figure 3.
4. Attach the plastic cap on the other end of the cut section of
Rope Light by pressing firmly until seated. For outdoor
applications, use dielectric grease inside the end cap before
attaching and seal the connection with heat shrink tube.
INSTALLING ROPE LIGHT
1. Attach mounting clips with nails or screws onto wooden surfaces.
Be sure that surface is mechanically sound. See Figure 4.
2. For best results, mounting clips should be evenly spaced and be
a maximum of 12” apart.
3. Make sure that the distance between any two lines of Rope Light
are at least 1/2" apart.
4. Gently press rope light into clips so that it snaps into place.
PROP 65 WARINING
Handling the coated electrical wires of this product exposes you to lead, a chemical known to the State
of California to cause cancer, birth defects and other reproductive harm.
WASH HANDS AFTER USE.
Figure 2
Figure 3
Figure 4
Incandescent Rope Light
Safety instructions for 033
Figure 1
Fuses
Fuse access cover
Prongs
www.americanlighting.com
RV1314
AMERICAN LIGHTING 12/11 2FT SERIES
120VAC 5W/FT MAX 150FT
Cut marks are located every
24”. Make sure power is off
at source before cutting!
Housing
Power
Connector
Rope Light
Retainer
Ring
