LED Linear Wall Washer
Safety instructions for LW12X1-WW, LW24X1-WW and LW36X1-WW
www.americanlighting.com
RV-1332 Page 2 of 2
INSTALLATION CONSIDERATIONS
1. Determine the number of fixtures to be used.
2. Consider the locations of all fixtures and provide a grounded receptacle for within 5’ of each fixture’s
location. If using outdoors, outlet(s) must also be GFCI and weatherproof.
FIXTURE INSTALLATION
1. Consider what mounting hardware will be used. The mounting surface will dictate the
type of fastener. The base has through-holes for mounting. See Figure 2 for details.
2. Mount the fixture securely to the mounting surface using appropriate fasteners.

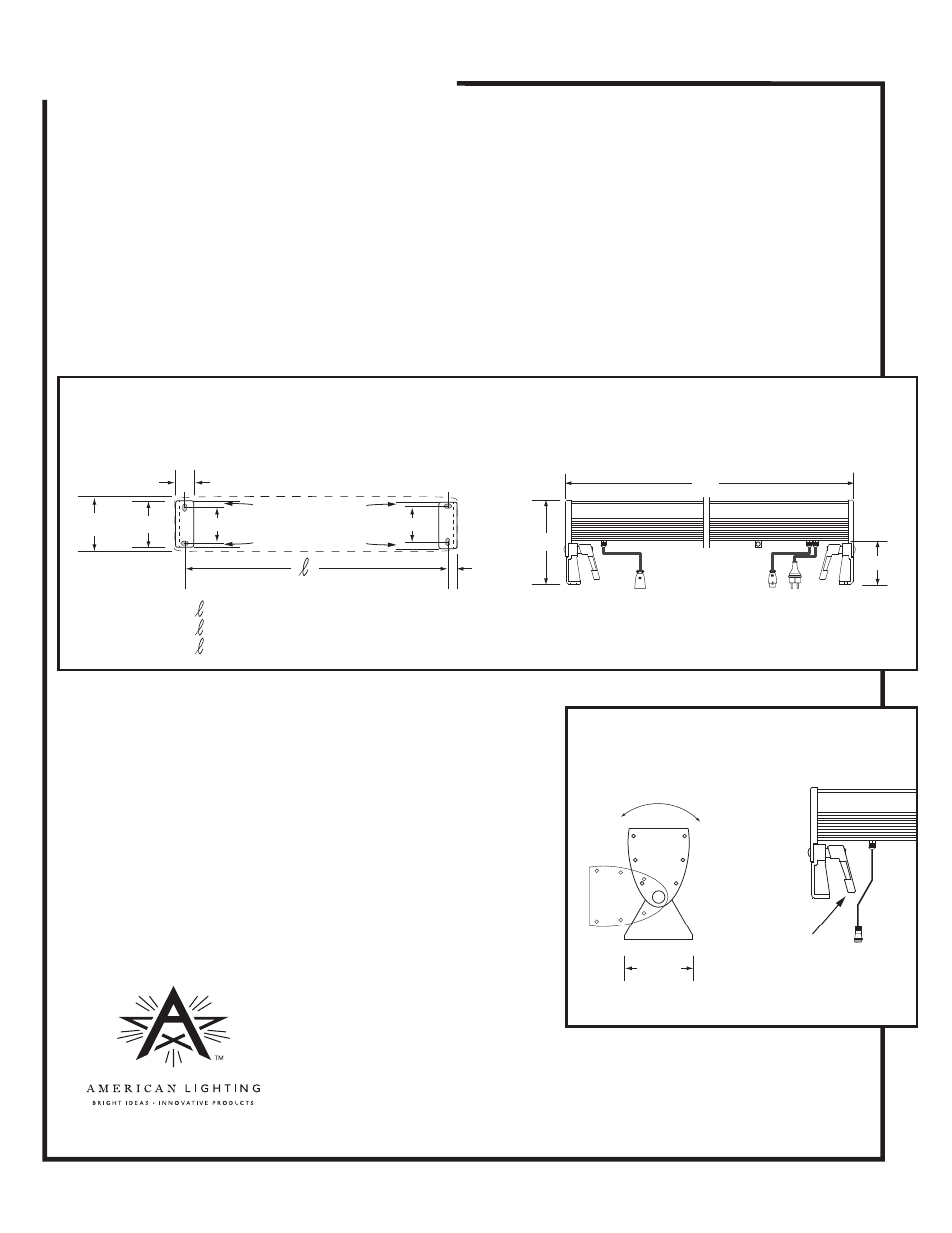

Figure 2
CONTINUED FROM PAGE 1
L
5”
2-1/2”
L = 15-3/4” for LW12X1 Series
L = 31-1/2” for LW24X1 Series
L = 47-1/4” for LW26X1 Series
2-1/16” 2-3/16” 1-1/2” between centers 1-1/2”
3/4”
.30”
3/8”
Top View
Looking toward mounting surface through
housing body showing holes in mounting brackets
= 13-13/16” for LW12X1 Series
= 29-7/16” for LW24X1 Series
= 48-1/8” for LW26X1 Series
.22” .30”
.22”
Side View
3. Loosen adjustment handles on each end, rotate and hold
the light in the desired position with the LED Wall Washer
facing the surface to be lighted, then re-tighten the
handles to hold the tilt angle. Repeat for any additional
fixtures. See Figure 3.
4. Plug fixtures and controller into grounded AC outlets.
The aiming angle can be adjusted
0~300˚
2-1/16”
End View
Figure 3
Tilt angle
adjustment handle
(one on each end)
Side View
