AirLive WN-151ARM User’s Manual 86
Routing Screen
The routing table is accessed by the Routing link on the Administration menu.
Using this Screen
Generally, you will use either RIP (Routing Information Protocol) or the Static Routing Table, as explained
above, although is it possible to use both methods simultaneously.
Static Routing Table
• If RIP is not used, an entry in the routing table is required for each LAN segment on your Network,
other than the segment to which this device is attached.
• The other Routers must also be configured. See Configuring Other Routers on your LAN later in
this chapter for further details and an example.

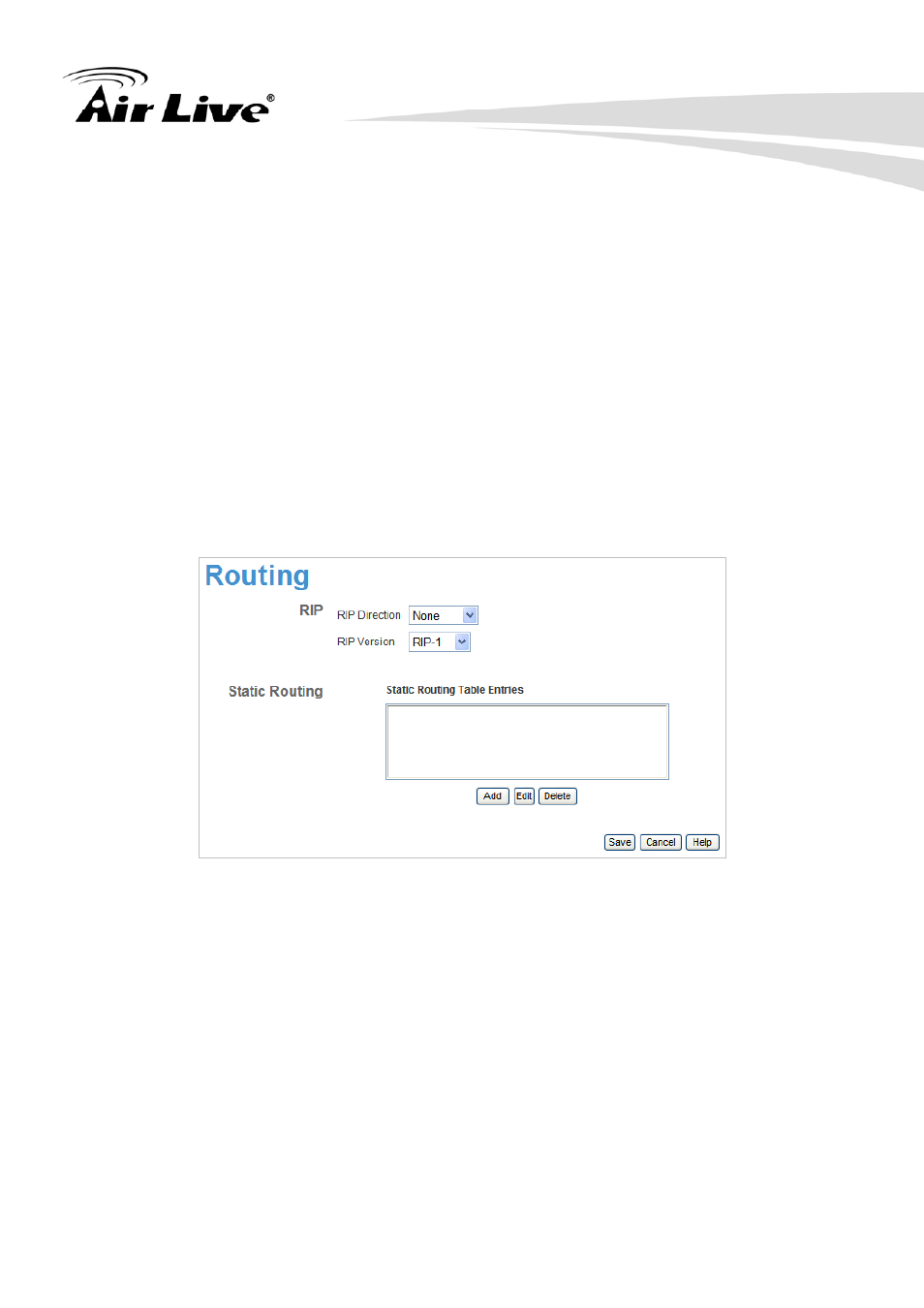

Figure: Routing Screen
