2.4.2.2 802.1Q VLAN Configuration

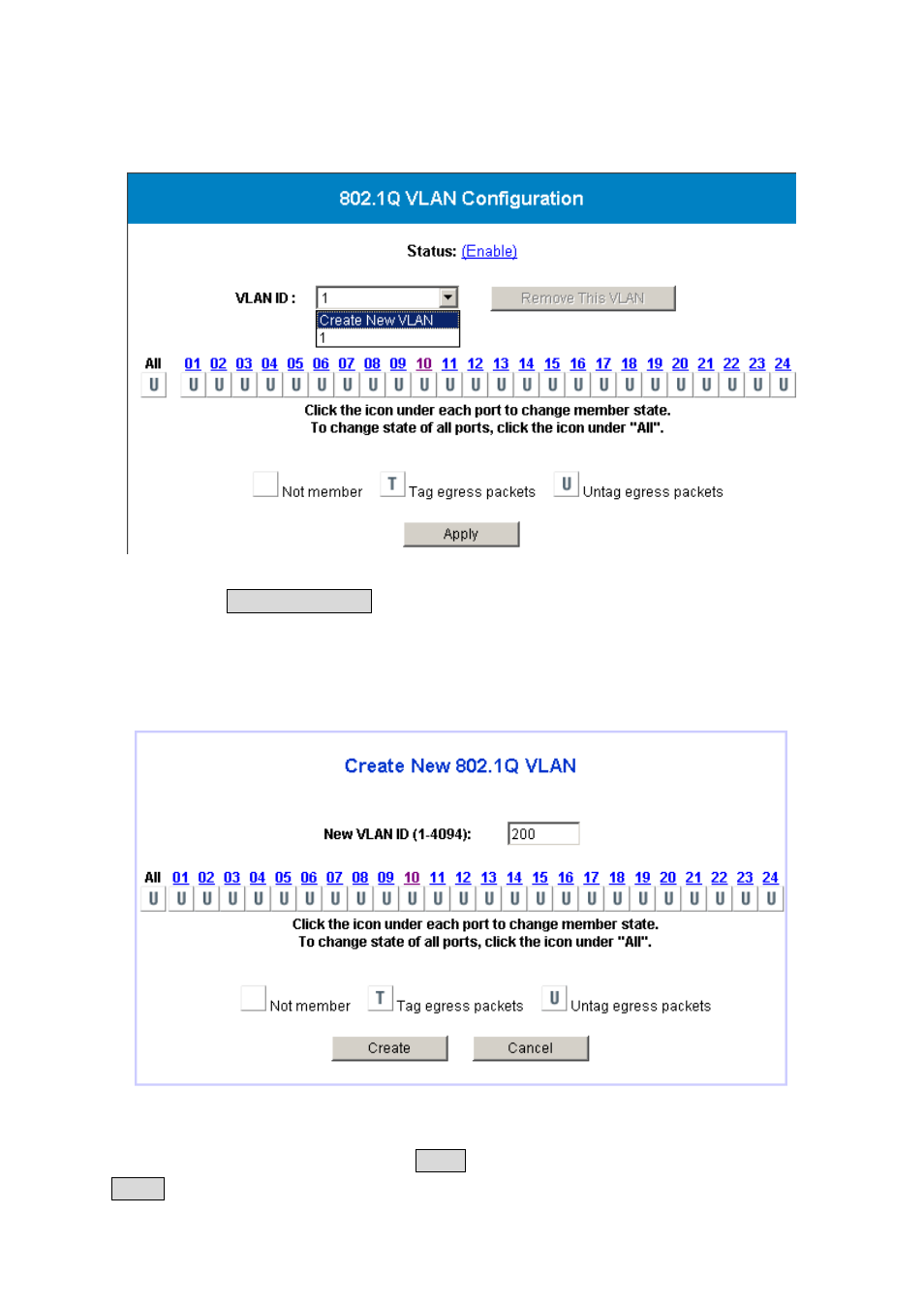

The following figures are the pages to add/delete/edit the 802.1Q VLAN entry. Each VLAN entry
has 2 parameters, VLAN ID (VID) and Port Member to be assigned.
After selecting the Create New VLAN, the figure shown as below will show up:
¾
VID – a unique VLAN ID, range is from 2 to 4094 (ID No.1 is reserved for default group)
¾ Port Member – Click the images just below the port number which wants to be grouped.
Select one of three member options (Not/Tag/ Untag) by clicking the image.
Input the VID and check the member row to select the ports which belong to this VLAN group.
After these settings are completed, click the Create button to submit these data to the switch. Click
the Cancel button to abort the actions and back to the previous page.
