2.4.1.3

Edit Port-Based VLAN Groups

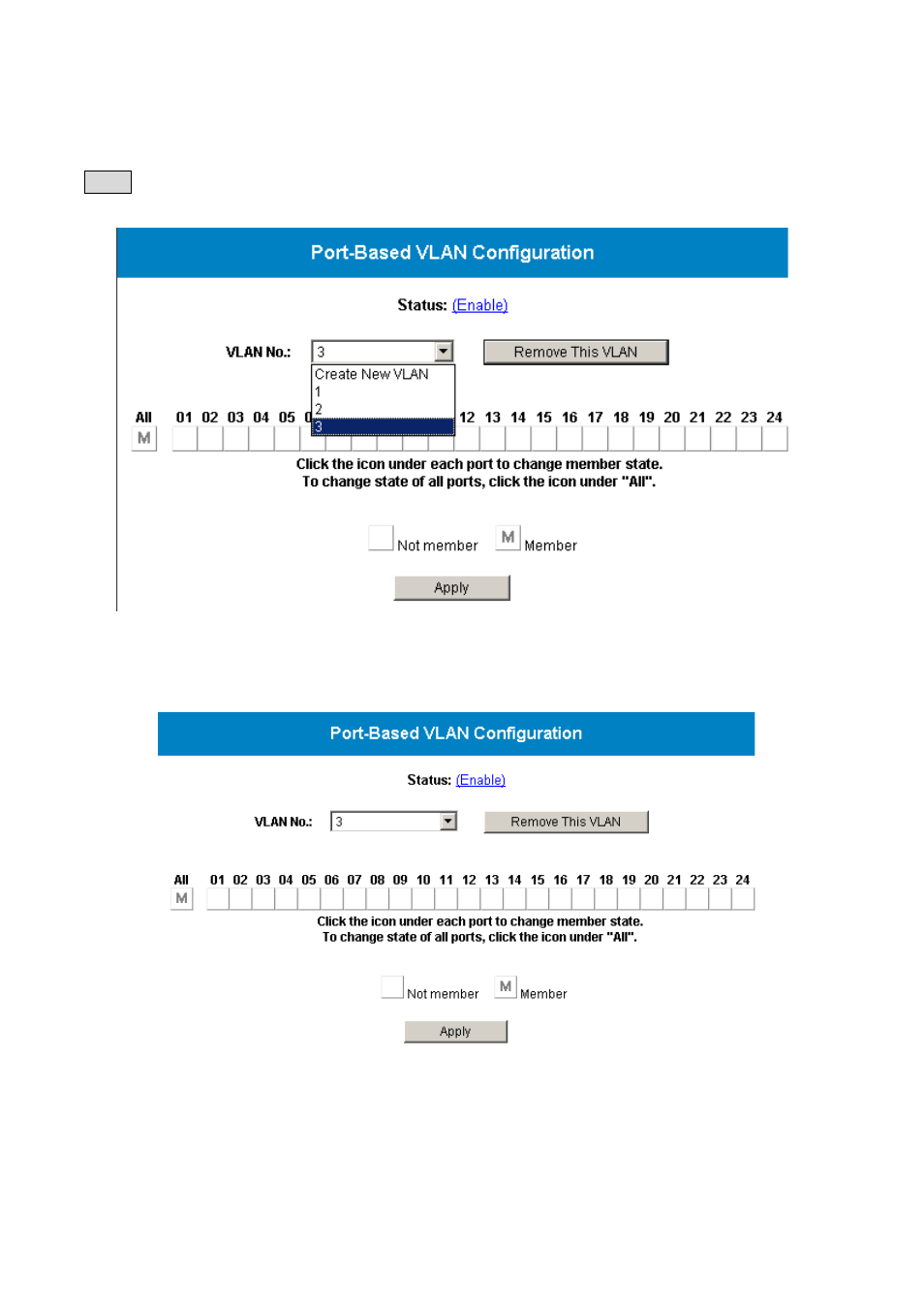

To edit the current port-based VLAN group, first select the existing group (e.g. group No.3 with
members from Port9 to Port12) you want to edit (to add Port7 & Port8 as members) and click the

Apply button to activate the setting.

The following figure shows the latest configuration for the selected group (e.g. No.3).
