AirLive ARM-201 User’s Manual
Descriptions of LED status
ADSL
When connection with Internet (ADSL Connected) is established, this LED will light up.
When this LED is flashing: NO ADSL physical connection
DATA When router is transferring data between Internet and router, this LED will be flashing.
LAN
When connection 10/100MB with end user is established, this LED will light up. When
router is transferring data between router and end user, this LED will be flashing.
USB
When an active USB cable is connected with router, this LED will light up.
PWR
When an active power adapter is connected with router, this LED will light up.

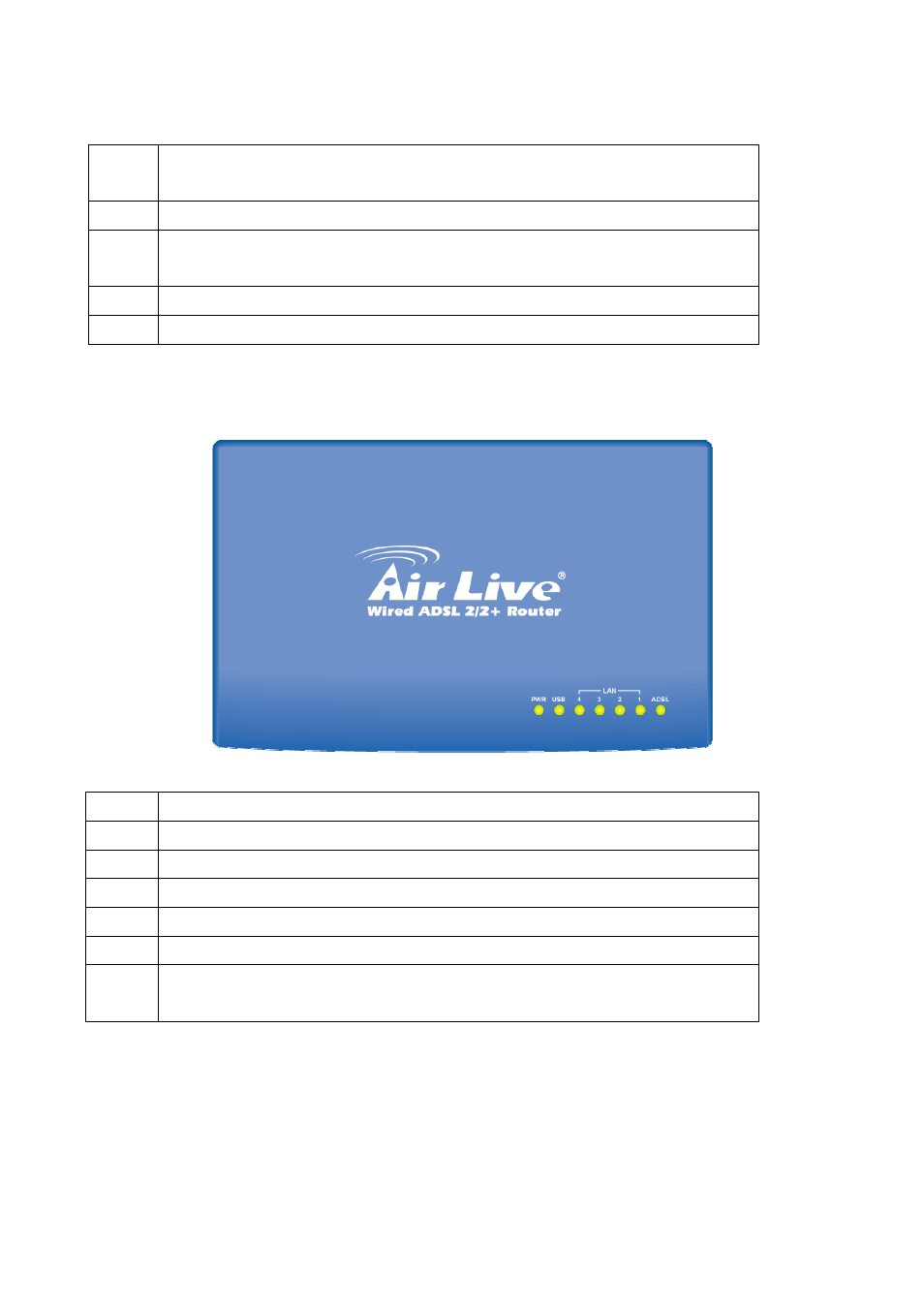

Four-Port ADSL Router Front Panel (ARM-204 v2)
Descriptions of LED status
PWR
When an active power adapter is connected with router, this LED will light up.
USB
When an active USB cable is connected with router, this LED will light up.
LAN4
When port 4 connection with PC or Switch / Hub is established, this LED will light up.
LAN3
When port 3 connection with PC or Switch / Hub is established, this LED will light up.
LAN2
When port 2 connection with PC or Switch / Hub is established, this LED will light up.
LAN1
When port 1 connection with PC or Switch / Hub is established, this LED will light up.
ADSL
When connection with Internet (ADSL Connected) is established, this LED will light up.
When this LED is flashing: NO ADSL physical connection
