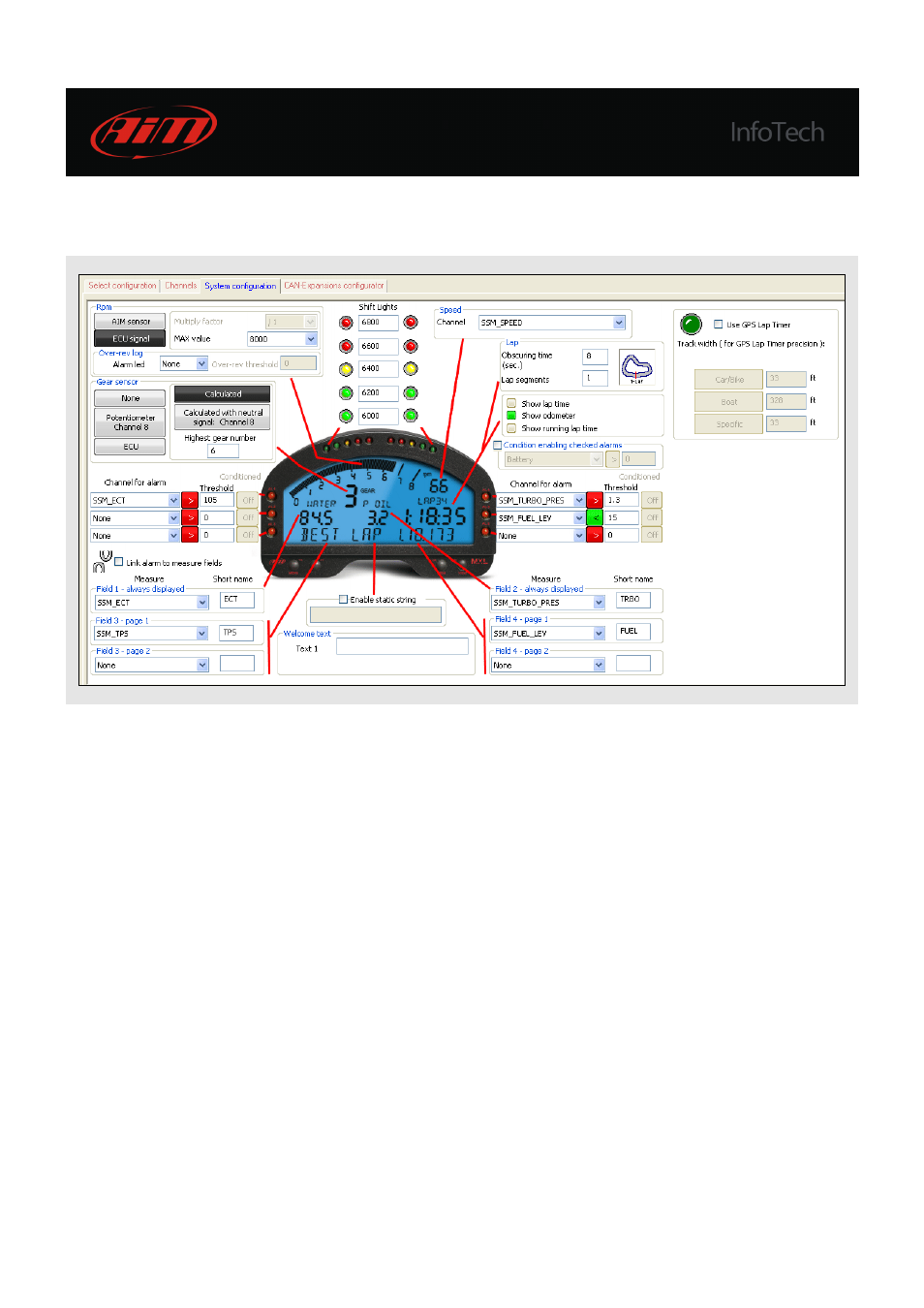

Your MXL display is already configured and the image here below shows the default values.
Set channels of the default configuration are:
•
RPM: set on ECU with Max value 8.000 RPM;
•
Gear sensor: set on “Calculated”; it needs to be calibrated as explained in chapter 4;
•
Shift lights: set expecting a speed limiter at 6900 RPM. If your engine has a limiter set on higher
values modify these values so that they switch on shortly before the limiter intervention. Here
follow limiter value of some Subaru models.
o
STI spec C 2000 cc 280cv limiter is set at 7.900 RPM;
o
STI 2000 cc 265 cv limiter is set at 7.500 RPM.
Alarm thresholds set for these channels (“Channel for alarm”) are:
•
ECT (water temperature): threshold value at 105°C
•
TURBO PRESS (over charging pressure): threshold fixed at 1.3 bar;
•
FUEL_LEV (fuel level): threshold value set at 15% of the left fuel.
