AiM Plug & Play Kit MXL Subaru User Manual
Page 11
10

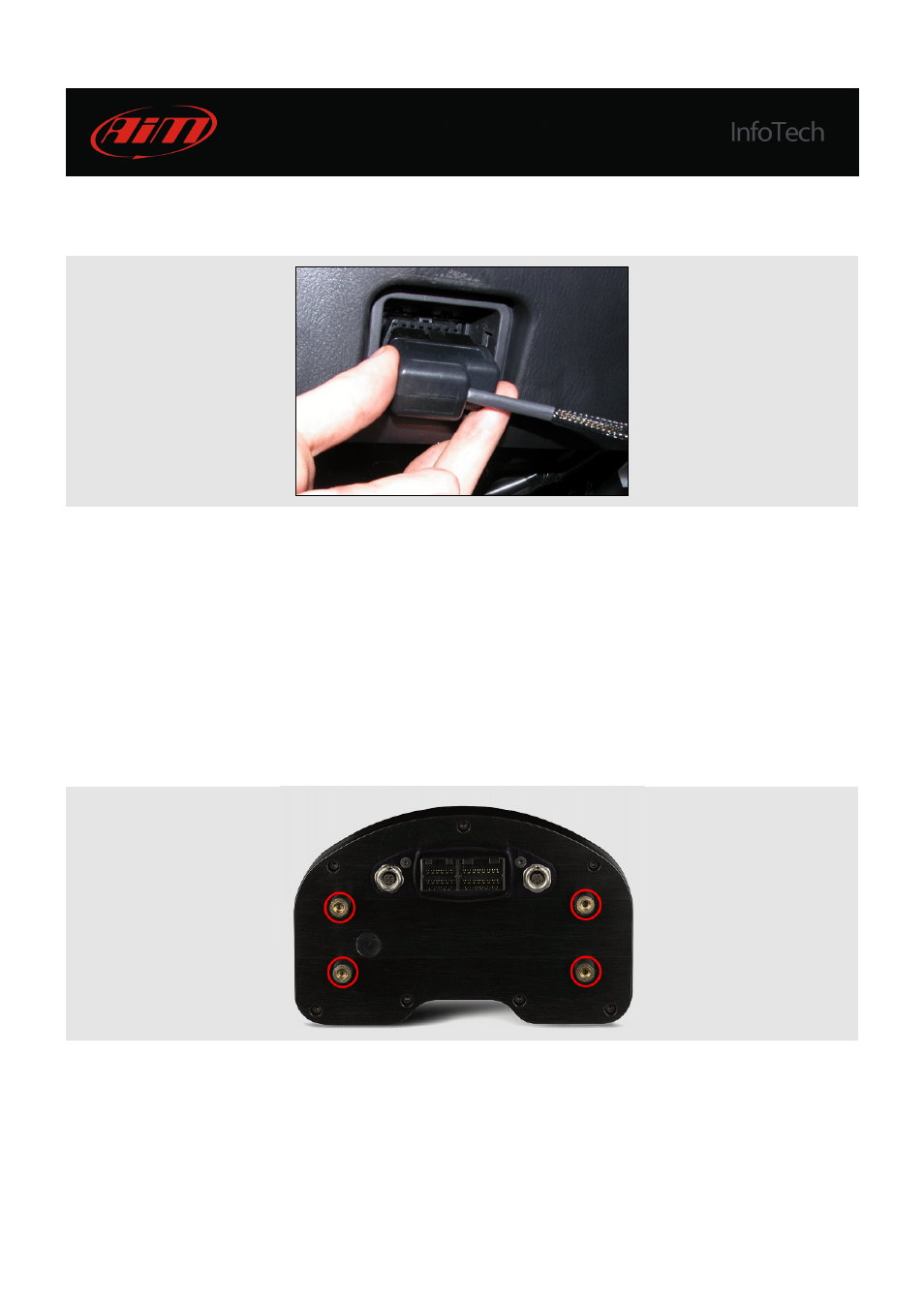

The image here below shows the Subaru interface wiring connector plugged in the OBDII plug.
Now the system is powered and connected to the vehicle. It is only necessary to make MXL receive
data from the ECU: connect the female plastic connector of the interface cable to:
•
the male plastic connector of MXL basic cable if you bought a basic kit;
•
the male plastic connector labelled RS232 of the complete wiring if you bought a complete kit.
It is now necessary to firmly fix MXL on the vehicle dashboard. Use the four rear anchor plugs of MXL
shown here below.
