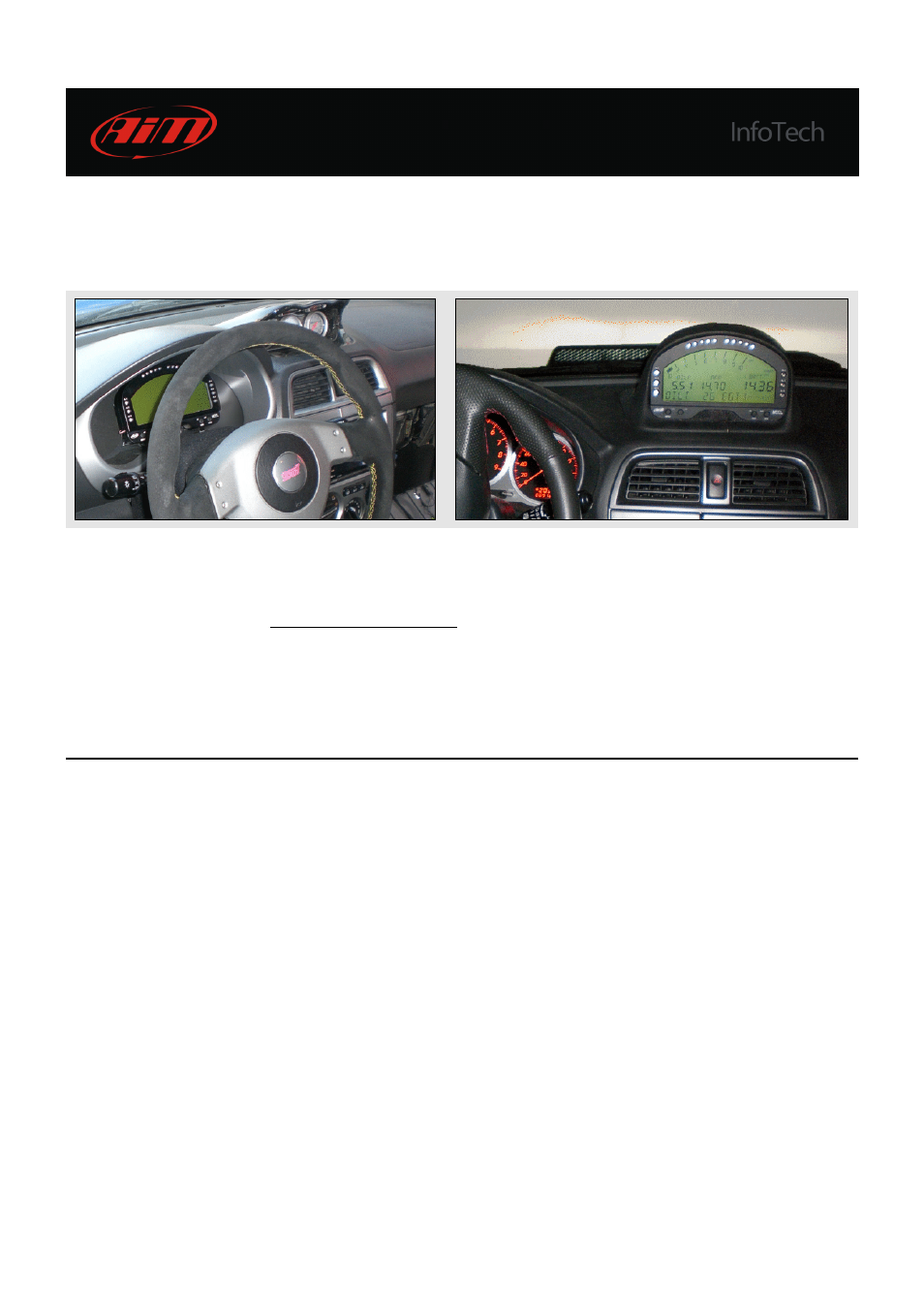

Here below two possible MXL installations are shown.
If you bought a complete kit you have a complete wiring and you can connect other sensors, optical
lap receiver included. Please refer to MXL user manual, freely downloadable from area download,
documentation section of www.aim-sportline.com, to know how to connect all sensors.
2.2
MXL Pro/Pro05 kit installation
MXL Pro/Pro05 is not internally powered and takes its power from Subaru interface board. Connect
the plastic connector of Subaru interface cable to any free channel of MXL Pro/Pro05. Channels
available for this purpose are:
MXL Pro:
• Speed 1 – 2
• Channel 5 – 6 – 7
MXL Pro05:
• Speed 1 – 2 – 3 – 4
• Channels 8 – 9 – 10 – 11
