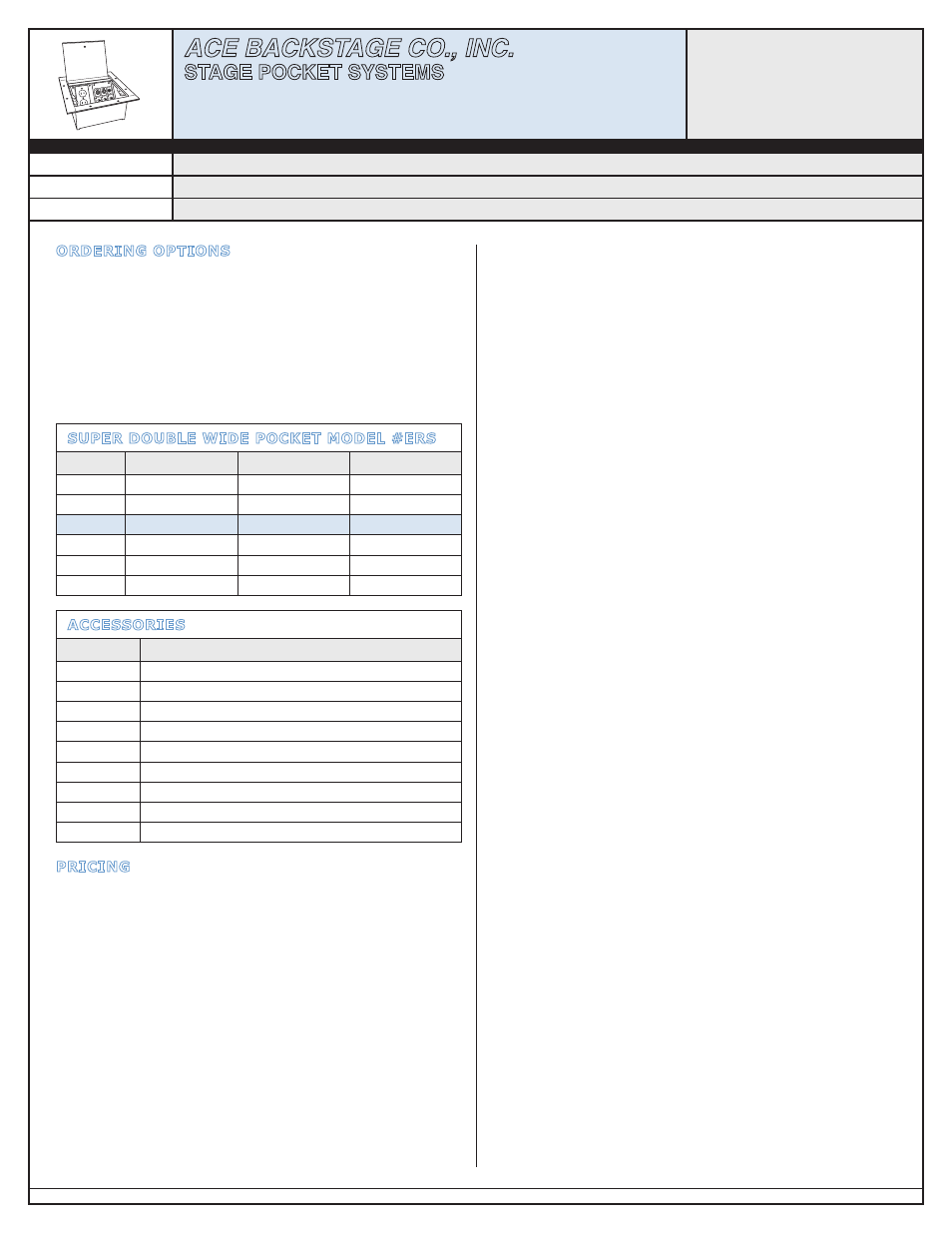

DATA SHEET

Stage Pocket

Data Spec Sheet

Revision: 1A.134-234

Model Numbers:

#134-xxyy, #234-xxyy (xx= Lid Type and yy= Finish Type)

Model Name:

Super Double Wide Stage Pocket - Super Double Capacity Horizontal Panel Pocket

Model Description: Pocket with brushed metal or powder coat finish, choice of lid, with optional panel(s) and connectors

SUPER DOUBLE WIDE POCKET MODEL #ERS

Model # Pocket Size

Lid Type

Finish

#134CLBK 134 = Super Double Wide Pocket CL = Carpet Lid

BK = Black

#134CLCV 134 = Super Double Wide Pocket CL = Carpet Lid

CV = Copper Vein

#134SLBK 134 = Super Double Wide Pocket SL = Standard Lid BK = Black

#134SLCV 134 = Super Double Wide Pocket SL = Standard Lid CV = Copper Vein

#234CLBR 234 = Super Double Wide Pocket CL = Carpet Lid

BR = Brass

#234SLBR 234 = Super Double Wide Pocket SL = Standard Lid BR = Brass

ORDERING OPTIONS

When ordering Stage Pockets please specifiy:

• 1) Stage Pocket Model Number

• 2) Stage Pocket Model Name

• 3) Stage Pocket Finish Type (Lid & Mounting Flange)

• 4) Stage Pocket Lid Type

• 5) Optional Stage Pocket Panel Model Numbers

• 6) Optional Connectors to be loaded into Panels

• 7) Location of Connectors to be loaded into Panels

• 8) Type of Connector Mounts

ACCESSORIES

Model #

Description

#PNL-100

PNL-100 Series Panels mount up to 6 “Connectrix” connectors

#PNL-120

PNL-120 Series Panels mount up to 12 “Connectrix” connectors

#PNL-140

PNL-140 Series Panels mount up to 24 “Connectrix” connectors

#PSW-100

PSW-100 Series Panels mount up to 6 Switchcraft® connectors

#PE

PE Series Panels mount Electric Duplex Switch Boxes

#DB

Steel Single Gang Electric Duplex Cover Panel, Punched Duplex

#DC

Steel Single Gang Electric Duplex Cover Panel, Blank

#CNCTRS

“Connectrix”, Switchcraft®, and Custom Panel Connectors

#CL, #LL, #SL Optional Carpet, Locking, and Standard Lids

PRICING

ACE BACKSTAGE CO., INC.’S Retail Price Guide may

be downloaded as a single Adobe PDF file (.pdf) or as a

Microsoft Excel Spreadsheet file (.xls). Ace’s Retail Price

Guide may only be downloaded and viewed by qualified

contractors and dealers.

Note: Prices are U.S. suggested and provided as a guideline

only. Actual prices may vary from dealer to dealer and are

subject to change without notice. If you are a contractor or

dealer and would like to receive Ace Backstage Co., Inc.’s

Confidential Dealer Price Guide call 661-295-5760 so that

we may begin the qualification process.
