ACE BACKSTAGE CO., INC.
STAGE POCKET SYSTEMS
24846 Avenue Rockefeller • Suite 200 • Valencia, CA 91355 • Telephone: 661-295-5760 • Fax: 661-295-1122 • Web: www.acebackstage.com

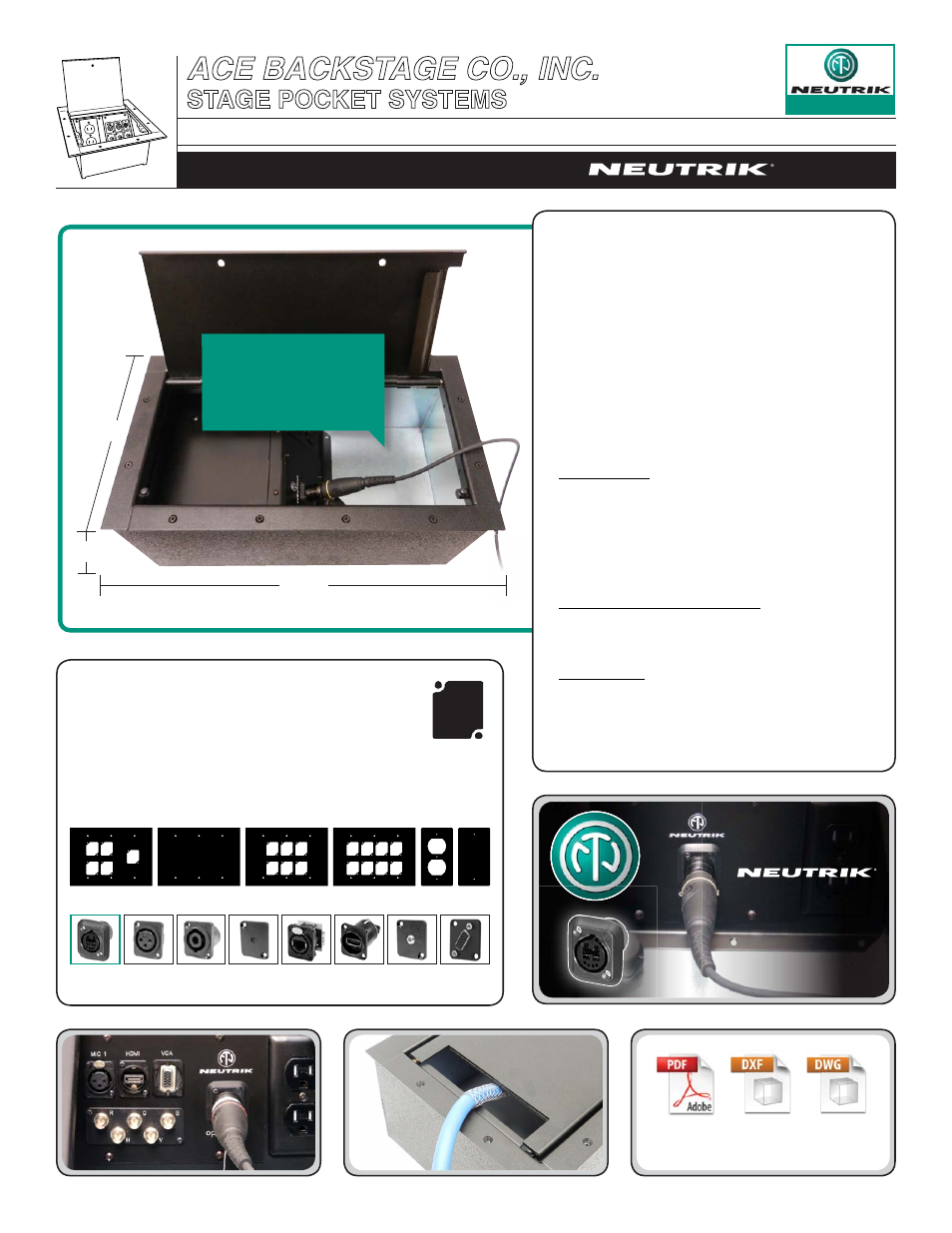

154SLBK STAGE POCKET - FOR USE WITH opticalCON
CONNECTRIX
SYSTEM PANELS & CONNECTORS
#C-15136
#C-15142
#C-25130
#C-25143
#C-15100
#C-15133
#C-15111
#C-15112
CONNECTRIX Connectors utilize the popular mounting
pattern of Neutrik¨ Ò DÓ Series connectors on
CONNECTRIX
Panels. The
CONNECTRIX System allows the placement of
any
CONNECTRIX Connector into on of many CONNECTRIX Panels to
provide ground isolation and a custom panel result with off-the-shelf
prices and delivery.
See all CONNECTRIX Panels and Connectors on
our website at www.acebackstage.com.
Download spec info at
acebackstage.com
Partnering with
to support
opticalCON
SUPPORT
FOR BELOW SURFACE FLOOR - PERMANENT INSTALLATION
#WP-305
#WP-300
#WP-306
#WP-308
#DB
#DC
The
ACE Backstage 154-SL-BK Stage Pocket supports
the ANSI recommended bend radius for fiber optic,
digital, and control cable reducing mechanical
destruction as well as minimizing microbending and
macrobending losses. Large sized panel mount
connectors sit at a 70* angle giving ample behind panel
termination clearance, as well as allowing room for
cable-end receptacles. Specialty cables exit the pocket
without bending, eliminating strain.
The generous Panel Bracket Assembly allows
connectivity possibilities for up to 6 fiber optic, audio, or
video connectors as well as one single gang A/C
receptical located opposite the isolated raceway divider.
The basic construction incorporates 3 sub-assemblies:
#1. BACK BOX Ð Welded 14 ga. steel, dipped in zinc
corrosion retardant and polyurethane sealed. The 6Ó
depth allows for work clearance behind the panel
bracket. Punched and sealed combination knockouts are
positioned (2) places and (1) place typical on opposing
sides. Electrical raceway compartment has ample
clearance for installer to punch additional knockouts as
needed.
#2. PANEL BRACKET ASSEMBLY Ð Made from 18 ga.
steel with electrostatic applied powder coat finish, this 3
piece assembly can be installed before or after back box
installation.
#3. LID/BEZEL Ð Heavy duty welded 10 ga. steel lid and
11 ga steel bezel, finished in texturized, professional
grade, black powder coat. A unique assembly with spring
loaded hinge pins and hinged cableway slot closure that
mounts directly to the back box. Standard flush lid or
optional locking lid is available.
Extra clearance
to eliminate
strain on cable
18.5”
10.5”
6”
