ACE BACK

STAGE CO., IN

CLEAR C

DMX12

PUSH

3 of 6

#PNL-120 SERIES PANELS: Any 4 Panels in this series or

#PNL-120

#PNL-124

#PNL-126

#PNL-128

#PNL-1210

#PNL-1212

#PSW-100 SERIES PANELS: Any 8 Panels in this series or

#PSW-100

#PSW-102

#PSW-103

#PSW-104

#PSW-105

#PSW-106

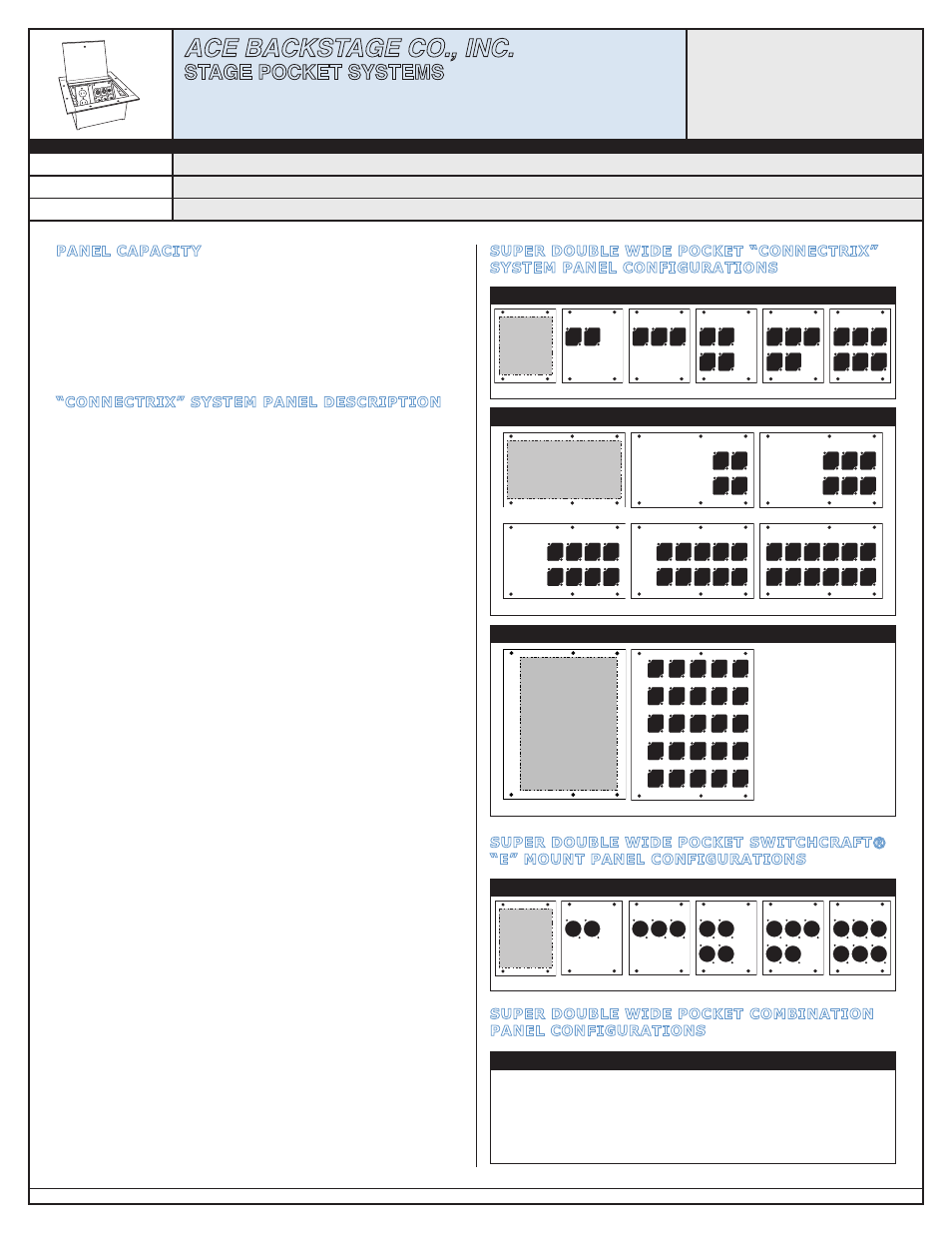

SUPER DOUBLE WIDE POCKET “CONNECTRIX”

SYSTEM PANEL CONFIGURATIONS

#PNL-100 SERIES PANELS: Any 8 Panels in this series or

#PNL-100

#PNL-102

#PNL-103

#PNL-104

#PNL-105

#PNL-106

SUPER DOUBLE WIDE POCKET SWITCHCRAFT®

“E” MOUNT PANEL CONFIGURATIONS

SUPER DOUBLE WIDE POCKET COMBINATION

PANEL CONFIGURATIONS

Various multi-panel combinations from panels listed below

Various combination of Panel Series

#PNL-100, #PNL-120, #PNL-140, #PE, and

#PSW-100

ACE BACKSTAGE CO., INC.

STAGE POCKET SYSTEMS

24846 Avenue Rockefeller | Suite 200 | Valencia, CA 91355

Tel: 661-295-5760 | Fax: 661-295-1122

Email: [email protected] | Web: www.acebackstage.com

DATA SHEET

Stage Pocket

Data Spec Sheet

Revision: 1A.134-234

Model Numbers:

#134-xxyy, #234-xxyy (xx= Lid Type and yy= Finish Type)

Model Name:

Super Double Wide Stage Pocket - Super Double Capacity Horizontal Panel Pocket

Model Description: Pocket with brushed metal or powder coat finish, choice of lid, with optional panel(s) and connectors

#PNL-140 SERIES PANELS: Any 2 Panel in this series or

#PNL-140

#PNL-1425

PANEL CAPACITY

ACE Super Double Wide Stage Pockets Panel

Capacity:

• (8) #PNL-100 Series “Connectrix” Panels OR

• (8) #PSW-100 Series Switchcraft® Panels OR

• (4) #PNL-120 Series “Connectrix” Panels OR

• (2) #PNL-140 Series “Connectrix” Panels OR

• Various multi panel combinations from panels listed above

“CONNECTRIX” SYSTEM PANEL DESCRIPTION

Many pre-cut stock #PNL-100 Series, #PNL-120 Series,

#PNL-140 Series “CONNECTRIX” System connector panels

and #PSW-100 Series Switchcraft® connector panels are

available for the Super Double Wide Stage Pocket. Standard

“CONNECTRIX” and Switchcraft® Panels are created from

high strength, tough, aircraft aluminum alloy (6061-T6)

that is 1/16” (.062”) or 1/8” (.125”) thick.

The standard panels mount with (4 or 6) self-tapping screws.

Each panel is CNC machined to precisely mate with the

designated connectors and in the pocket mounting holes.

Each Standard “CONNECTRIX” and Switchcraft® Panel is

finished with oven cured semi-gloss black powder coat.

Most panels provide header space for custom engraving

which is fast and easily accomplished on a separate dedi-

cated CNC engraving machine. The finished panels show

bright aluminum in the engraved characters and need not

be back filled. ACE standard panels are flat, strong, and

rigid like the typical thinner mild steel panels. Because

the panels are machined and not punched they stay flat

and undistorted unlike punched panels which distort in the

punching process.

The machined “CONNECTRIX” style cutouts combine popular

mounting patterns of the Neutrik “D” series and Switchcraft

“E” series connectors with a generous rectangular cutout

that mates with a growing array of adapter-mounted

standard connectors. The adapter mount is plastic and

provides ground isolation between the panel and connector.

Using the “CONNECTRIX” system panel it is possible to

mount any combination of modular jacks (RJ45, RJ11 etc.),

BNCs, dual RCAs, mic jacks, speaker jacks and numerous

other standard connectors without a single custom punch.

This system provides for more connectors and mounting

options in stock standard ACE panels. The benefit is faster

order turn around and lower cost. Less custom fabrication

for custom spec results with off-the-shelf stock prices.
