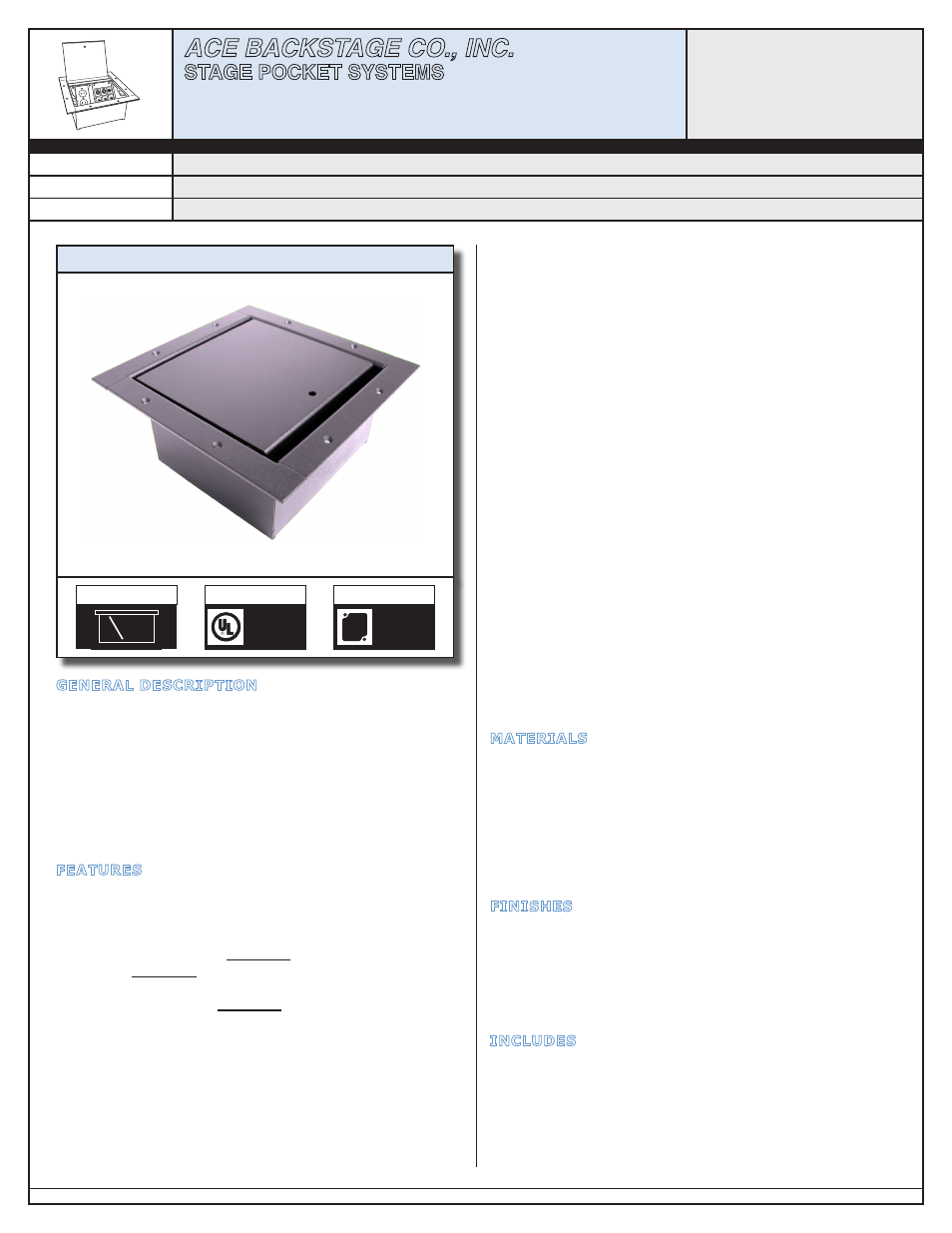

DATA SHEET
Stage Pocket
Data Spec Sheet
Revision: 1B.122-222
Model Numbers:
#122-xxyy, #222-xxyy (xx= Lid Type and yy= Finish Type)
Model Name:
Full Stage Pocket - Large Capacity Standard general use Vertical Slant Panel Pocket
Model Description: Pocket with brushed metal or powder coat finish, choice of lid, with optional panel(s) and connectors
Model Name: FULL STAGE POCKET
GENERAL DESCRIPTION
Ace Backstage Co. Inc.’s large-sized Stage Pocket, the Full
Stage Pocket, is a standard general use vertical slant panel
flush stage pocket. The Full Stage Pocket is made of heavy
duty steel and may be used to conceal audio, communica-
tions, data, electric AC power, switches, video, and voice
connections etc. below the floor surface for easy access
and to prevent connector damage. The Full Stage Pocket
has a larger capacity interchangeable panel system which
permits easy custom connector/panel configurations.
FEATURES
• LARGE CAPACITY: The Full Stage Pocket accomodates
#PNL-100 Series Panels, #PSW-100 Series Panels, #PNL-
120 Series Panels, and #PE Series Panels in an inter-
changeable multi-panel system making for easy custom
configurations. Two (2) optional #PNL-100 Series Panels
or one (1) optional #PNL-120 Series Panel will mount up
to 12 “CONNECTRIX”, Neutirk®, and/or Switchcraft® type
connectors*. Two (2) optional #PSW-100 Series Panels
will mount up to 12 Switchcraft® type connectors.
• DURABLE CONSTRUCTION: Welded steel construction
of Full Stage Pocket Lid, Mounting Flange, and Pocket Body
resist bending under even the most severe stage loads. The
Lid and Mounting Flange is made from 1/8” (nominally 11
ga. (.120”)) thick CRS steel while the Pocket Body is made
from 16 ga. (.062”) thick CRS steel.
• SPRING LOADED HINGE PINS: Removable spring
loaded hinge pins permit easy exchange of lids for Carpet
Lid (CL), Locking Lid (LL), Standard Lid (SL) and other
custom application lids.
• CABLE WAY SLOTS: Generous 3/8” x 8” Cable Way Slots
permit easy cable exit from pocket(s), even for large gauge
cables. A Cable Way Slot Closure channel closes the slot
when not in use.
• EASY INSTALLATION: Easy installation into 8.5” x 8.5”
square cutout in stage floor. Open easy access from the top
or back of the stage pocket allows simple connector/panel
terminations.
• DECORATOR FINISHES: Scratch/wear resistant finish,
oven cured powder coat electro-static applied inside and
outside entire Full Stage Pocket. Decorator neutral Antique
Copper Vein and Textured Black finishes are standard. A
Solid Brass Lid and Mounting Flange with a brushed finish
is also available by special order.
• RUBBER LID STOPS: Rubber lid stops set into recessed
mount cradle the lid to prevent lid rattle.
• UL LISTED: Full Stage Pockets compliance Standard
514A file FLOOR BOX 44LK Suitable for raised floor
applications.
MATERIALS
ACE Full Stage Pocket Lids and Mounting Flanges are made
of 1/8” (nominally 11 ga. (.120”)) thick CRS steel while
the Full Stage Pocket Body is made from 16 ga. (.062”)
thick CRS steel. The exception to this is the Brass Full
Stage Pocket Lid and Mounting Flange which is made of
1/8” (nominally 11 ga. (.120”)) thick Half Hard Solid Brass
with a Stage Pocket Body made from 16 ga. (.062”) thick
CRS steel.
FINISHES
ACE Full Stage Pockets come with a scratch/wear resistant
finish, oven cured powder coat electro-static applied inside
and outside the entire Full Stage Pocket. Decorator neu-
tral Antique Copper Vein and Textured Black finishes are
standard. A Solid Brass Lid and Mounting Flange with a
brushed finish is also available by special order*.
INCLUDES
ACE Full Stage Pockets Include:
• (1) Stage Pocket Body with Mounting Flange
• (1) Lid
• (2) Hinge Pins
• (2) Springs
• (8) #8 Self Tapping Sheet Metal/Wood Screws
• (1) Slot Closure
