ACE BACKSTAGE CO., INC.
STAGE POCKET SYSTEMS
24846 Avenue Rockefeller | Suite 200 | Valencia, CA 91355
Tel: 661-295-5760 | Fax: 661-295-1122
Email: [email protected] | Web: www.acebackstage.com
DATA SHEET
Stage Pocket
Data Spec Sheet
Revision: 1A.134-234
Model Numbers:
#134-xxyy, #234-xxyy (xx= Lid Type and yy= Finish Type)
Model Name:

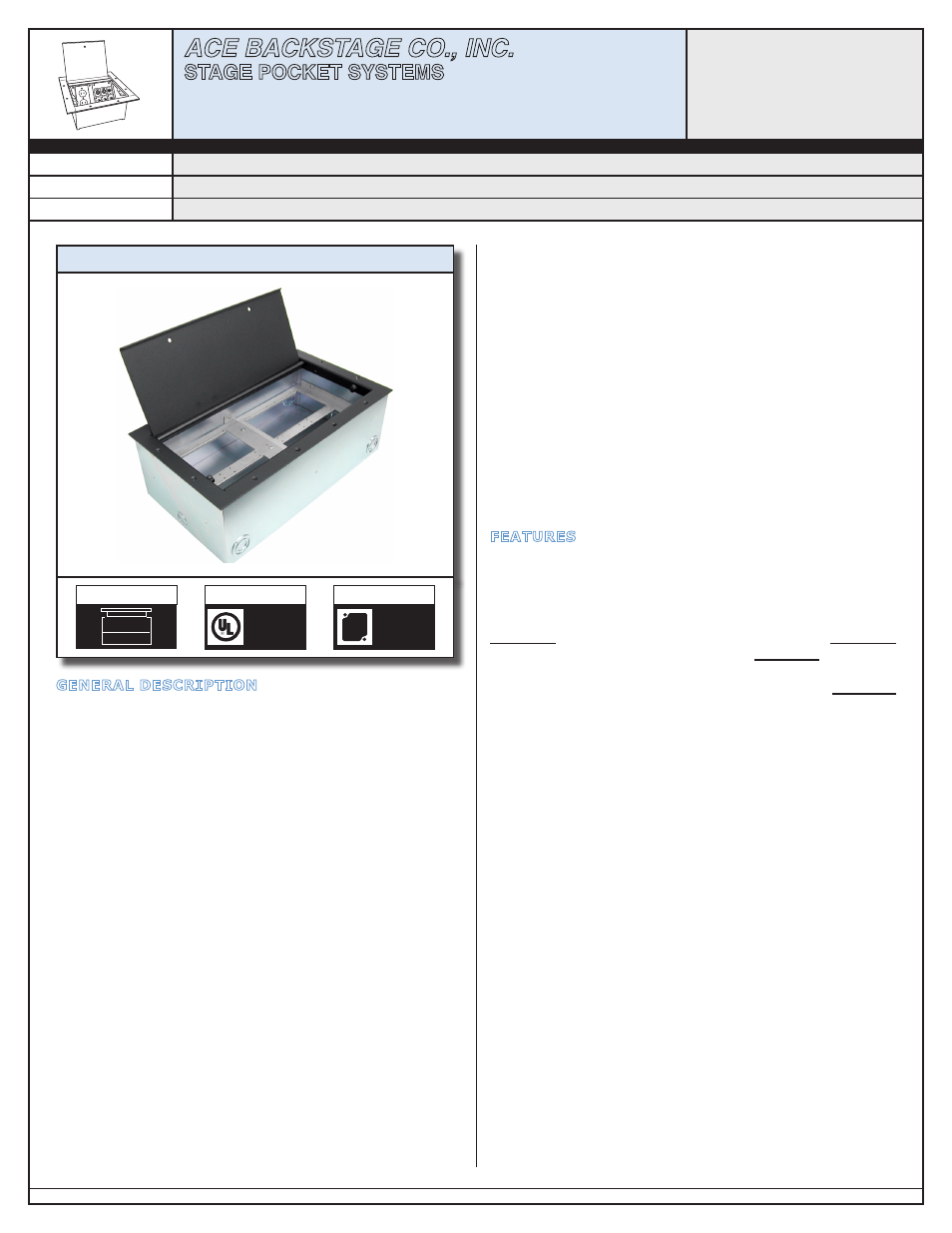

Super Double Wide Stage Pocket - Super Double Capacity Horizontal Panel Pocket
Model Description: Pocket with brushed metal or powder coat finish, choice of lid, with optional panel(s) and connectors
Model Name: SUPER DOUBLE WIDE STAGE POCKET
GENERAL DESCRIPTION
Ace Backstage Co. Inc.’s Super Double capacity Horizontal
Panel Pockets offer a rugged welded steel construction and
durable finishes with a detachable trim bezel-lid, horizontal
panel mounting brackets with included back boxes. Super
Double Wide Pockets provide more than twice the capacity
of our Double Wide vertical pockets in the same space.
The Super Double Wide Pocket is the same size as the ACE
Double Wide Pocket with Back Box except it provides almost
2 times the connectivity capacity using a HORIZONTAL
PANEL design. The basic construction incorporates 3 sub-
assemblies. A unique Trim Bezel-Lid assembly with spring
loaded blind hinge pins and hinged cableway slot closure
that mounts directly to the ACE #104BBX Back Box. As-
sembled in the Back Box is a set of panel mounting and AC
barrier isolation raceway brackets (#BRK104).
The Trim Bezel assembly is a heavy duty welded 11 gauge
(.120 thick) steel or solid brass assembly (Lid is 10 gauge
(.135 thick) steel. Each Bezel is available with either a flat
flush standard lid (SL) or a recessed carpet lid (CL). Steel
Bezels with flush flat lids come in 2 oven cured powder
coat decorator finishes: antique copper vein and textured
black. Solid Brass Trim Bezel Lid assembly has a brushed
finish and is available on a special order basis. The in-floor
appearance is the same as the Double Wide Pocket.
The HORIZONTAL PANEL in the Super Double Wide Pocket
is designed for high capacity connectivity. In less than two
square feet (10.5”x18.5”) the Super Double Wide Pocket
provides abundant panel space for up to 48 “Connectrix”
connectors*. This large connectivity capacity is possible
using a Horizontal Panel Design and a set of panel mounting
brackets. Generous combination conduit knockouts on four
sides provides in-out-and-thru ways for both low voltage
and AC electric cabling.
The Super Double Wide Pocket panel system is unique and
flexible. Use any combination of standard ACE CNC ma-
chined panels designed for ACE Stage Pockets or choose a
custom layout made to order aluminum “Connectrix” panel.
Generous clearances above and below the panel(s) permit
easy termination and access to an array of audio, video,
data, communication and control connections.
FEATURES
• EXTRA DOUBLE LARGE CAPACITY: The Super Double
Wide Stage Pocket accomodates #PNL-100 Series Panels,
#PSW-100 Series Panels, #PNL-120 Series Panels, and
#PNL-140 Series Panels in an interchangeable multi-panel
system making for easy custom configurations. Two (2)
optional #PNL-140 Series Panels, eight (8) optional
#PNL-100 Series Panels or four (4) optional #PNL-120
Series Panels will mount up to 48 “Connectrix”, Neutirk®,
and/or Switchcraft® type connectors*. Eight (8) optional
#PSW-100 Series Panels will mount up to 24 Switchcraft®
type connectors.
• DURABLE CONSTRUCTION: Welded steel construction
of Super Double Wide Stage Pocket Lid, Mounting Flange,
and Pocket Body resist bending under even the most severe
stage loads. The Trim Bezel Mounting Flange is made from
1/8” (nominally 11 ga. (.120”)) thick CRS steel, the Lid is
made from 10 ga. (nominally .135”) thick CRS steel, and
the Pocket Body Back Box is made from 14 ga. (.071”)
thick CRS steel.
• SPRING LOADED HINGE PINS: Removable spring
loaded hinge pins permit easy exchange of lids for Carpet
Lid (CL), Locking Lid (LL), Standard Lid (SL) and other
custom application lids.
• CABLE WAY SLOTS: Generous 3/8” x 16” Cable Way
Slots permit easy cable exit from pocket(s), even for large
gauge cables. Cable Way Slot Closures close channels when
slot is not in use.
• EASY INSTALLATION: Easy installation into 10” x 18”
rectangular cutout in stage floor. Open easy access from
the top of the stage pocket allows simple connector/panel
terminations.
• DECORATOR FINISHES: Scratch/wear resistant finish,
1 of 6
