32

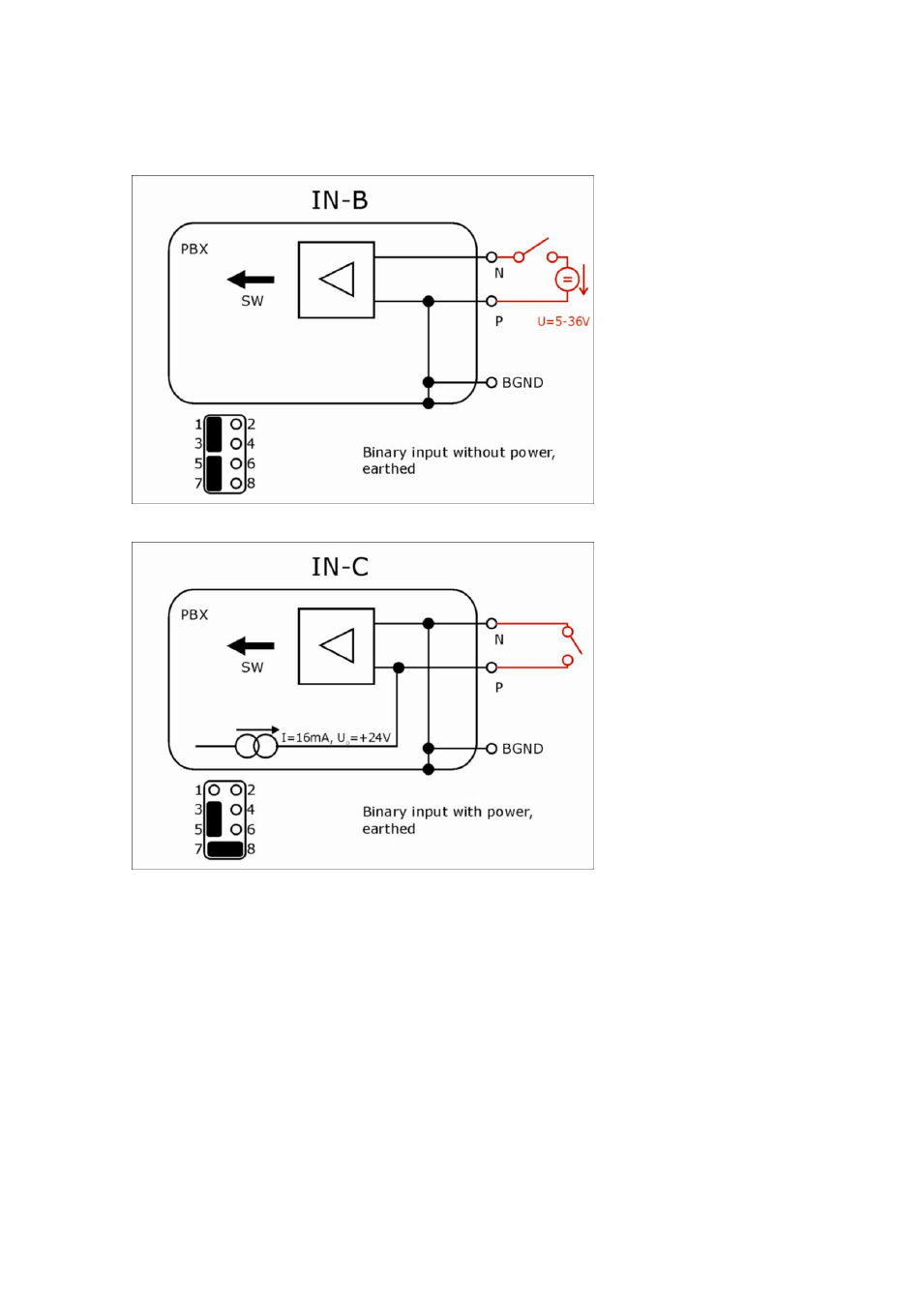

Connection number 5
Connection number 6
5.11. Module VoIP (Order No 1880021)
The VoIP Module is designed exclusively for 2N
®
Omega Lite PBXs as a VoIP
module for LAN and Internet voice services.
The VoIP Module is to be installed to the left from the power supply unit, above
the main board. To connect the module, use the two connecting cables packed in
the separate plastic bag (insert them to the J15/J26 connectors on the main board)
and the two spacers (also packed in the separate plastic bag). Use the remaining
two M3 screws to screw the VoIP Module to the spacers.
Remove the two J8/J9 links on the PBX base plate for appropriate operating
efficiency.
