6.1. Module 2x internal line (order No 1880030)
The internal line interface works with a line voltage of 24V and line current of
approximately 30 mA. It is symmetrical, which guarantees good resilience against
line cross-talk. The nominal impedance is 600
Ω
. The module allows caller
identification (Caller ID – CLIP). This module supports the receipt of identification
using DTMF between the first and second ring.

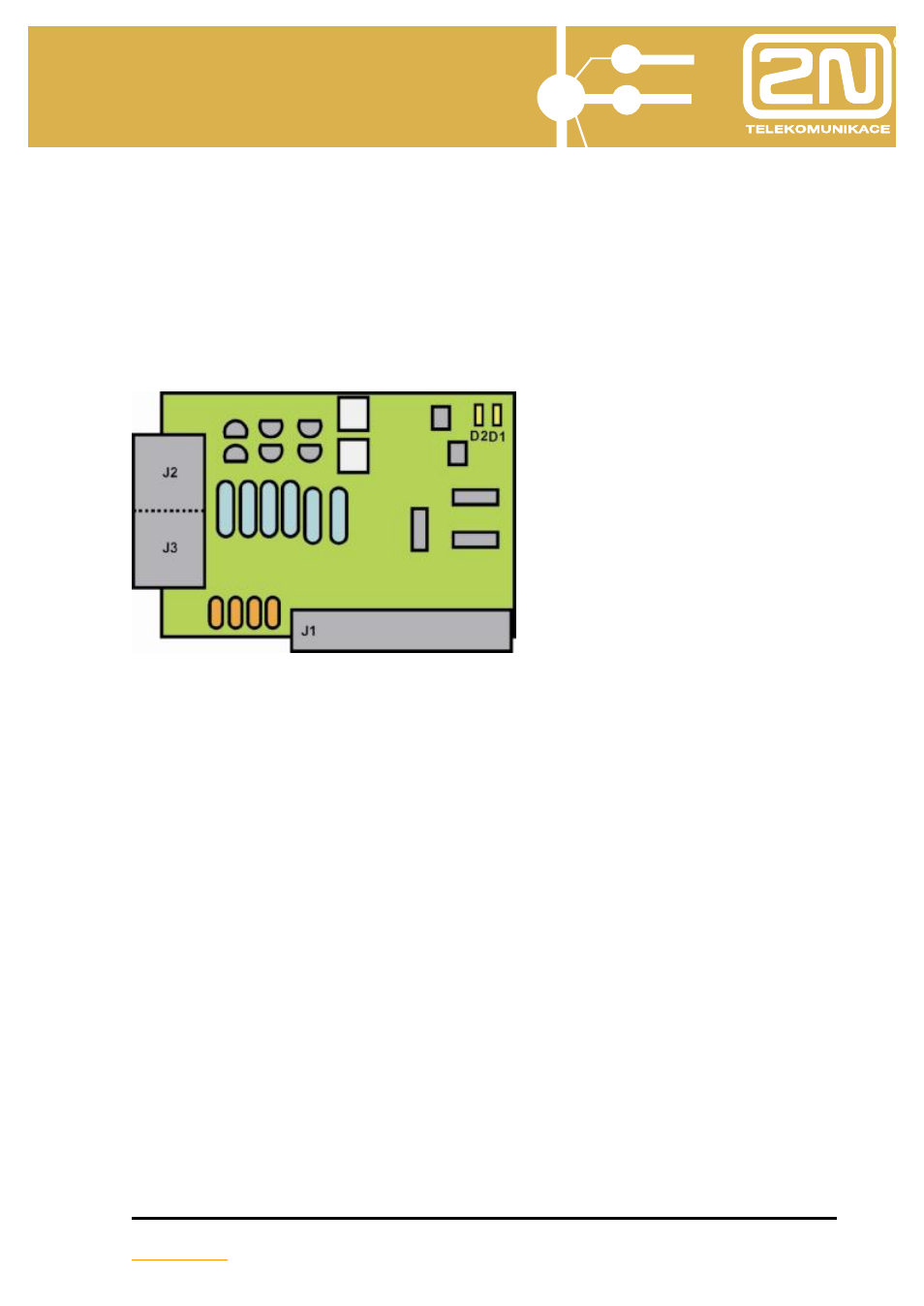

J1 - connector for connecting to motherboard (or to extender module)
(connector is secured against incorrect connection by the blanking off
of PIN 5,6,7,8)).
J2 - connector RJ-45 (PIN 4,5) for connecting analogue external line
(PORT 1).
J3 - connector RJ-45 (PIN 4,5) for connecting analogue external line
(PORT 2).
D1 - signalling LED (busy, ringing on VL PORT 1).
D2 - signalling LED ( busy, ringing on VL PORT 2)
