Lift Cabin Audio Unit
– Compact
2.3
38
Instructions
1. Insert the hex wrench (included in the delivery) in
the bottom unit edge hole; turn left about 10 times
until it puts up resistance.
2. The window slides down by itself or with little
assistance, showing its upper brim.
3. Tilt the window forwards and remove.
4. Set the audio unit address using a screw driver:
left rotary switch:
0 or 4 … machine room
1 or 5 … shaft bottom
2 or 6 … lift cabin
3 or 7 … lift cabin
ceiling
right rotary switch:
1–8 = lift number
Caution
 Right rotary switch: 1 to 8 print, i.e.
set 1 for lift number 2 etc.
Note
 Left rotary switch: If you use the
CANCEL input and the contact is open
with the door closed, set the left switch
into one of positions 0 to 3; if the
contact is closed with the door closed,
set the left switch into one of positions
4 to 7.
5. Replace the window.
6. Insert the hex wrench (included in the delivery) in
the bottom unit edge hole, turn right about 10 times
until the window slides under the panel edge and
tighten applying light force.

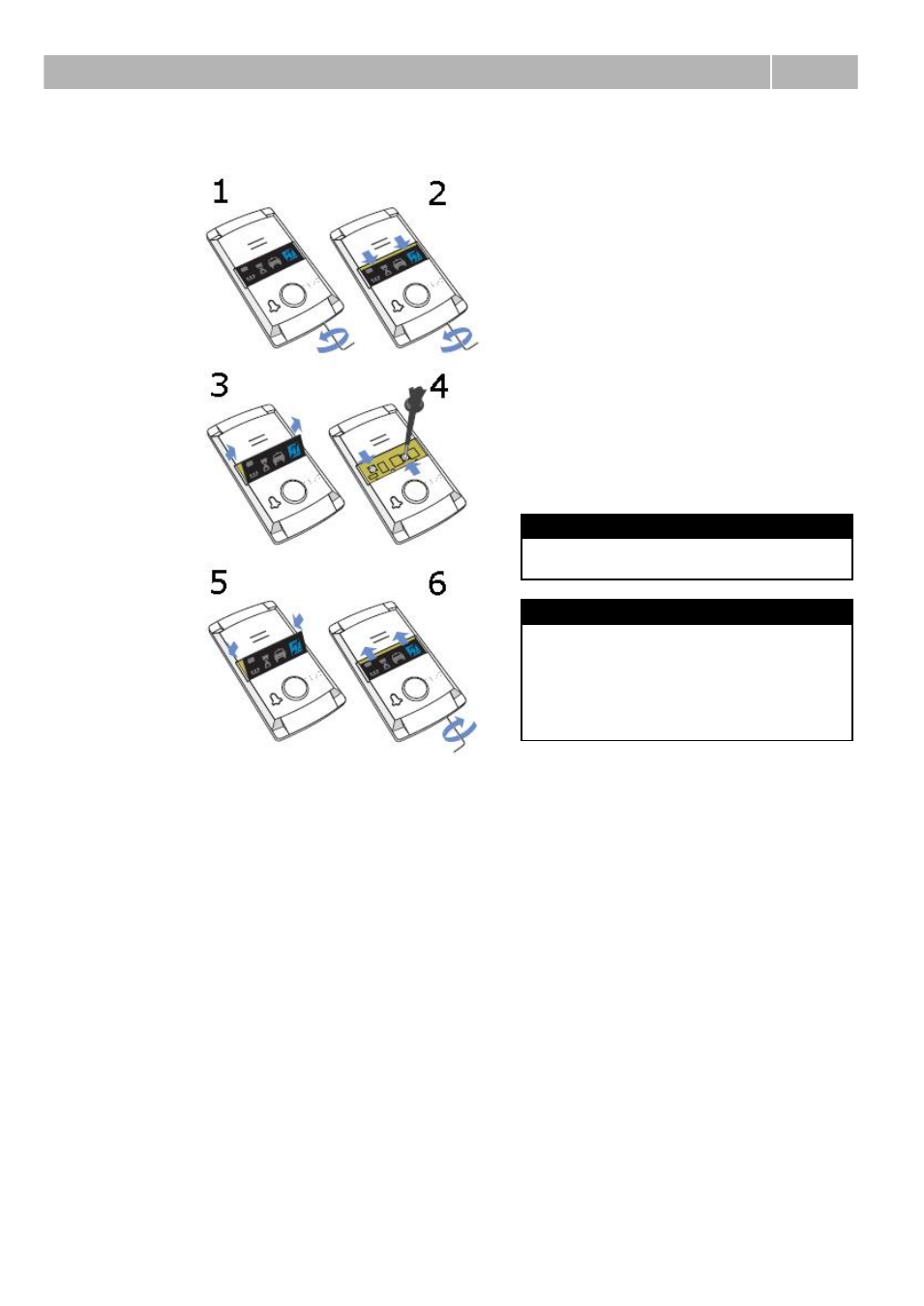

Figure 2.10 Address Setting for
Lift Cabin Audio Unit – Compact
