2.1 Description
2N ® EasyRoute consists of a plastic-encased GSM/UMTS gateway, removable antenna
and telephone network/LAN connecting cables.
The 2N ® EasyRoute status is indicated by the LED on its front side. All possible states
are described in the following figure.
Power Supply
Blue light Power supply is
connected.
No light Power supply is not
connected.
GSM
Yellow flashing Network is active. *)
Yellow, no light Network is inactive.
WiFi network
Green flashing WiFi network is active. *)
Green, no light Network is inactive.
*) The LED lighting time depends on the data
traffic intensity:
short flash … active network, low traffic;
up to 1s flash …peak network data traffic.
Telephone line
No light Standby (relax, on-hook)
Quick flashing Off-hook or ringing
Light Active call
Signal
Blue light Recieving GSM/UMTS
signal
Progressive flashing No signal
Restart
(Reset)
button
Power supply
connector
(2.1 mm DC jack)
Telephone
line
connector
(RJ 12, 6/2)
SIM card
connector
with lock
Four-port
Fast-Ethernet
switch (RJ45)

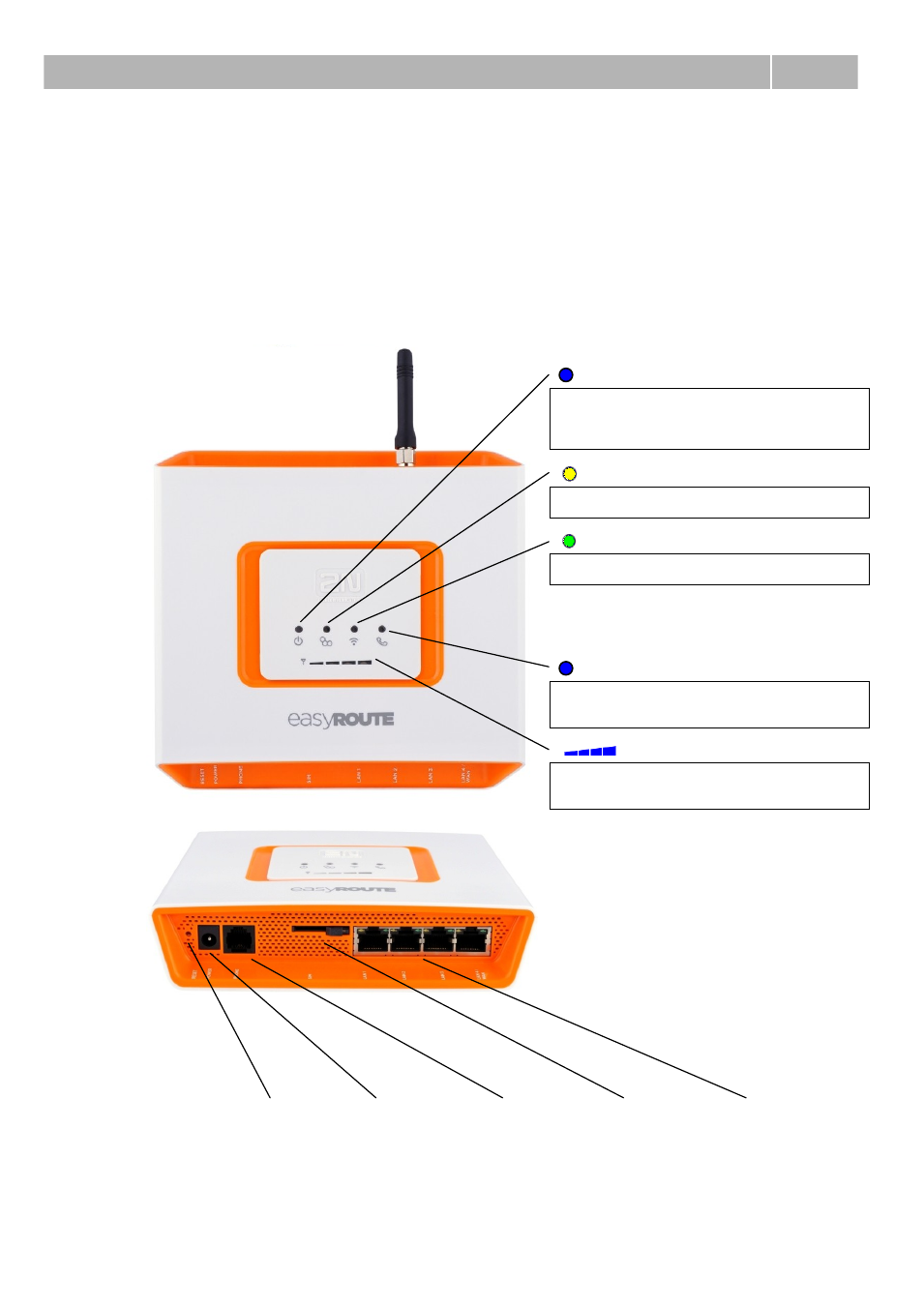

Figure 2.1
2N ® EasyRoute
LED Indicators
Figure 2.2
2N ® EasyRoute
Connectors
