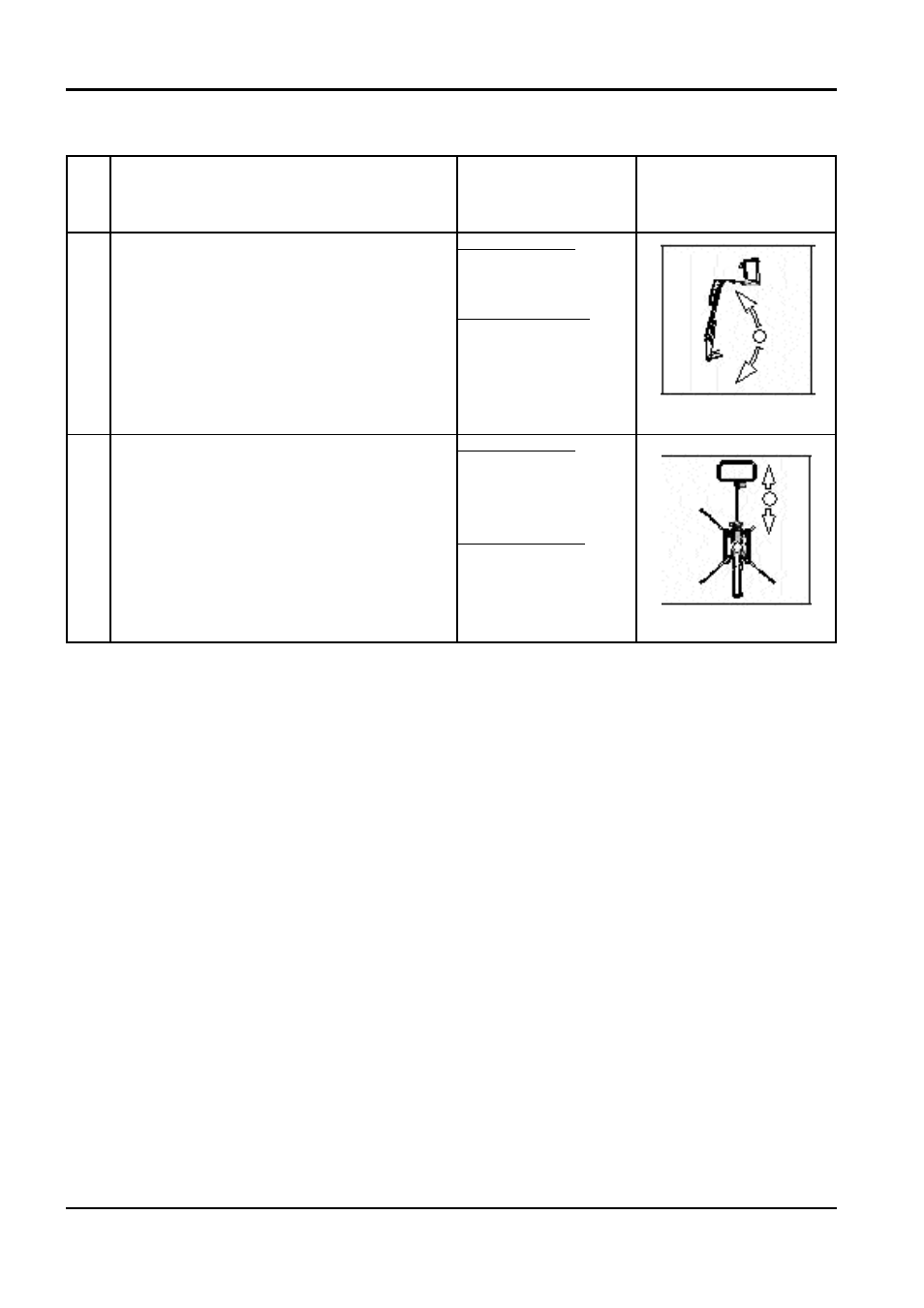

3 Lever controlling third arm movement
This lever allows the operator to raise or
lower the platform third arm.
lever forward:
raising third arm
lever backward:
lowering third arm
4 Withdrawing lever control
This lever allows the operator to pull out
and reenter the withdrawing arm
lever forward:
pulling out toward
the outside
lever backward:
re‑entering toward
the machine
