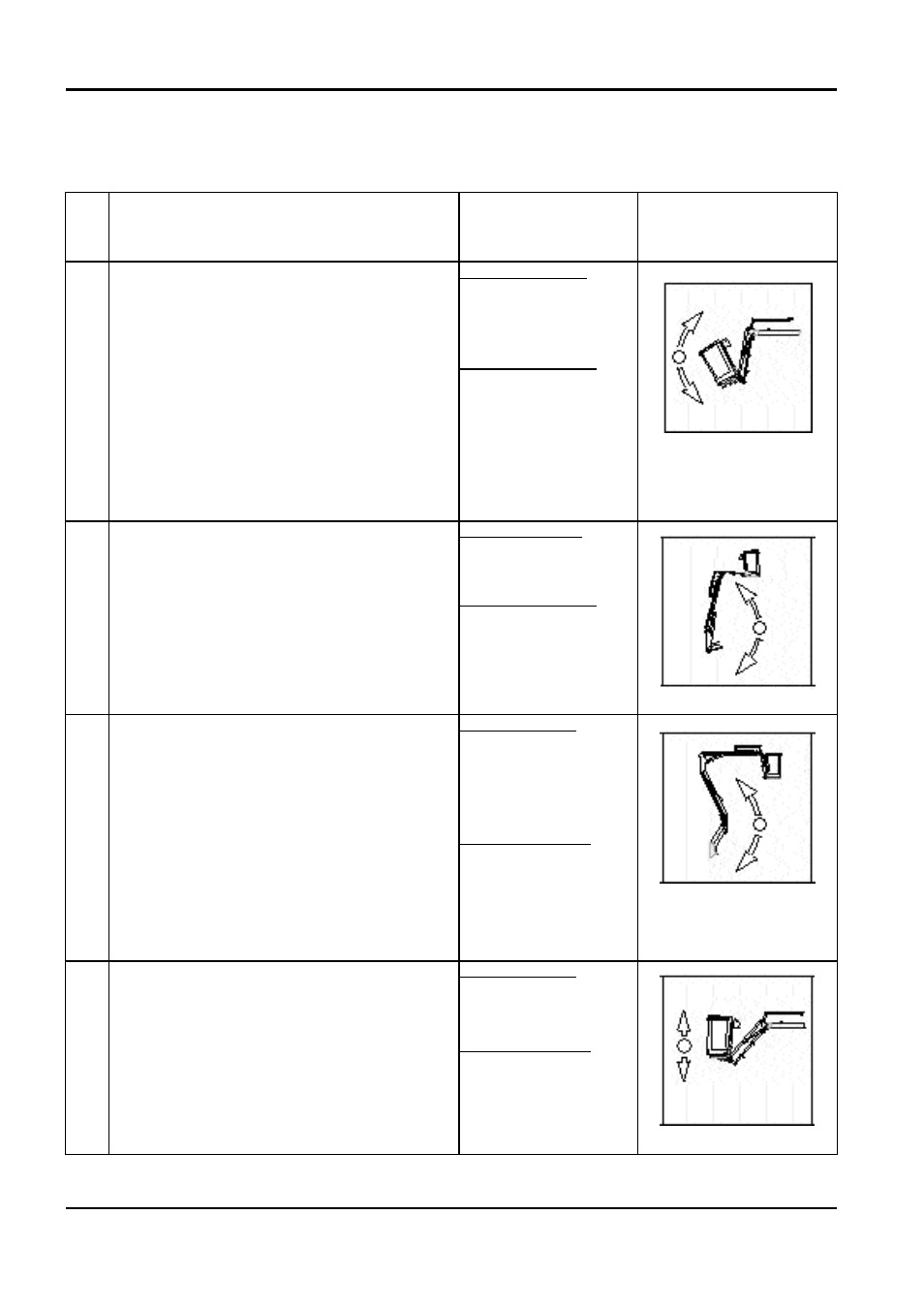

2.4.1.2 BASKET HYDRAULIC CONTROLS
BOOM LIFT MODELS X14JH
JLG
28 X14JHR0220311
R EF . D ESCRIPTION O PERATION /
MOVEMENT
P ICTOGRAM NEAR THE
CONTROL
1 Basket levelling control
This lever allows acting on the levelling
cylinder of the control car to adjust any
misalignments due to possible anomalies
in the system.
Being an emergency device and a dange‑
rous manoeuvre, the operator must use a
tool (e.g. screwdriver) to activate the
distributor.
Lever forward:
basket rotating
toward the machine
Lever backward:
basket rotating away
from the machine
2 Lever controlling movement of third arm
This lever allows the operator to raise or
lower the platform third arm.
Lever forward:
raising third arm
Lever backward:
lowering third arm
3 Lever controlling first and second arm
This lever allows the operator to raise and
lower the first and second arm of the
platform. The synchronisation of the
movement between the first and the
second arm allows to always have the
maximum range when working and can
be obtained thanks the particular configu‑
ration of the system and does not depend
on the operator. lever forward:
synchronised raising
of the first and
second arm
lever backward:
synchronised lowe‑
ring of the first and
second arm
4 Jib control lever
This lever allows the operator to raise and
lower the jib.
lever forward:
raising jib arm
lever backward:
lowering jib arm
