Section 5 - Attachments
5-22 3128447
Mast Carriage w/Side Tilt
Use Mast Carriage Capacity Chart
To determine maximum capacity, refer to “Telehandler/
Attachment/Fork Capacity” on page 5-3.

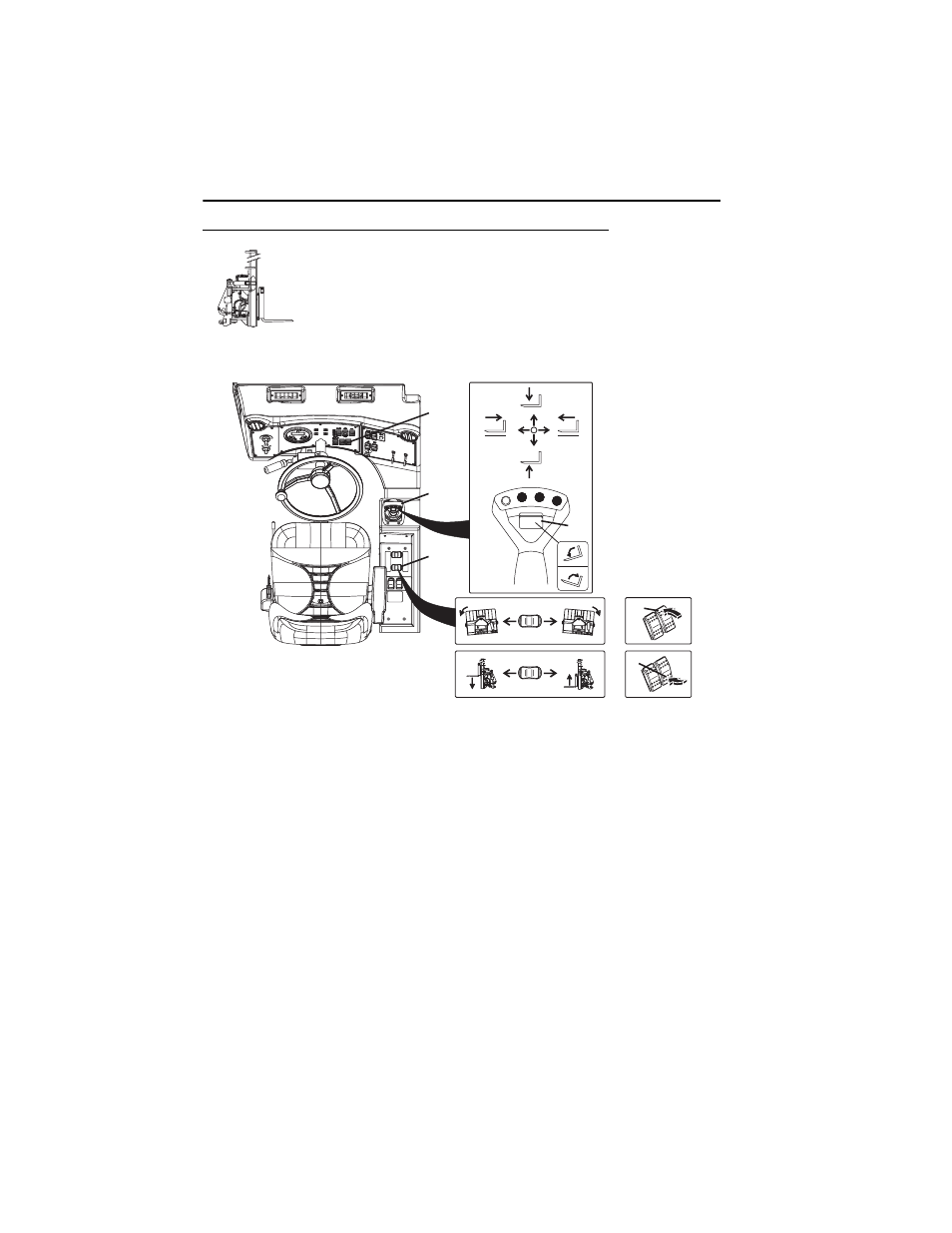

The joystick (1) controls lift/lower and extend/retract movement of the boom.
The attachment tilt roller switch (2) controls mast carriage tilt.
• Push roller switch down to tilt up.
• Push roller switch up to tilt down.
To Side Tilt:
Press Side Tilt Switch (5) located on dash panel (4) to activate Side Tilt function.
The auxiliary hydraulic joystick (3) controls the carriage side tilt.
• Move joystick left to (side) tilt left.
• Move joystick right to (side) tilt right.
OY0590
WA R N IN G
OY1910
1
2
4
3
W ARNING WA R N IN G
+
6
+
5
