Section 3 - Controls and Indicators
3-14 3126018
Right Hand Panel

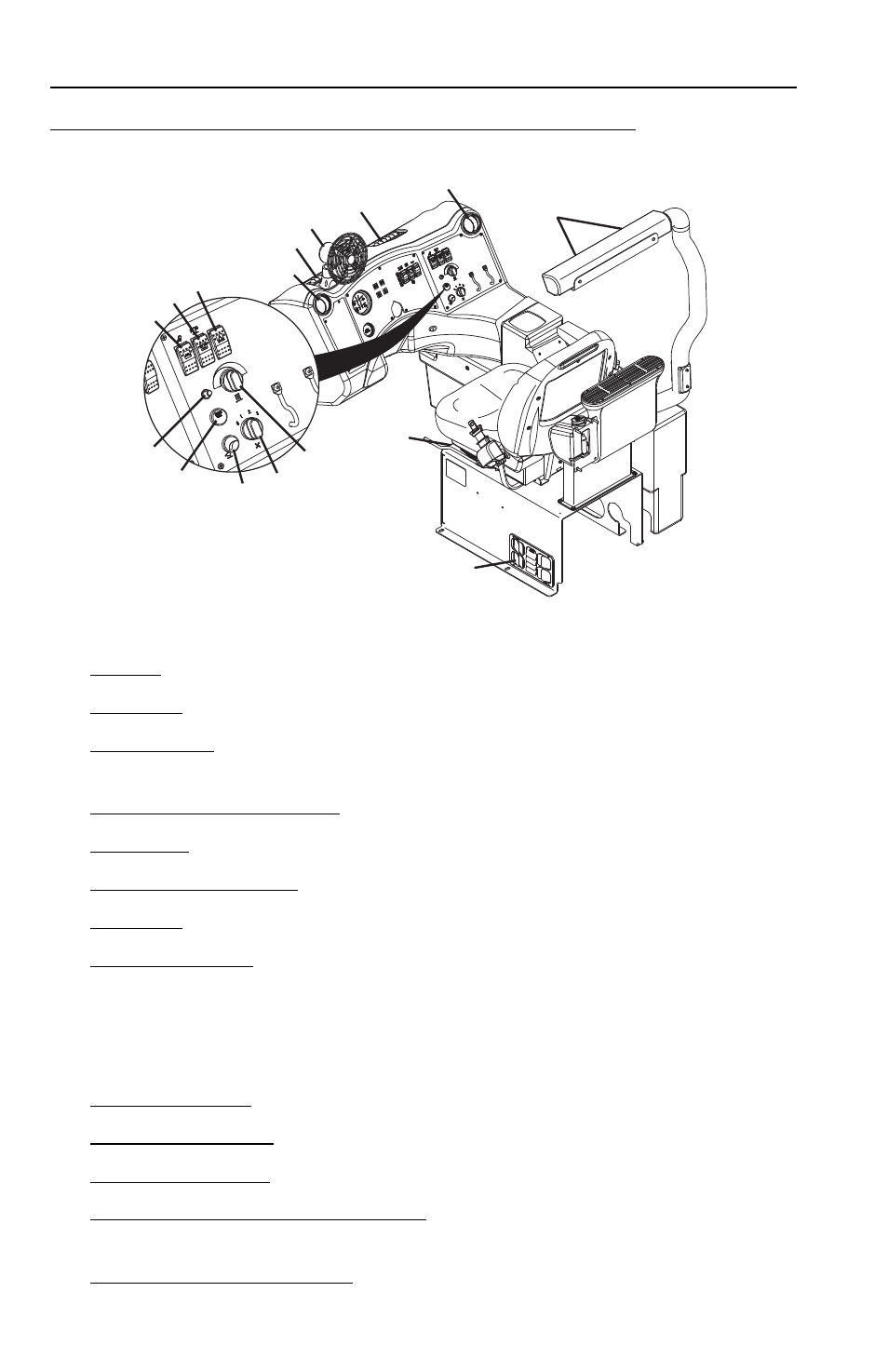

Heater and Air Conditioning Controls (if equipped)
1. Air Vent: Two individually adjustable round vents.
2. Air Louver: Three individually adjustable air louvers.
3. Defroster Fan: Two speed fan. Press fan switch down for slow speed; press
switch up for fast speed. Return switch to middle position to turn off.
4. Temperature Control Switch: Adjustable rotary switch
5. Fan Speed: Four-position rotary switch.
6. Air Conditioning Switch: On/Off switch.
7. Air Louver (S/N 0160038377 & After): Two individually adjustable air louvers.
8. Recirculation Vent (S/N 0160038377 & After): Open louvers when operating
heat. Close louvers when operating air conditioning.
Other Controls (if equipped)
9. Work Light Switch: On/Off switch.
10. Beacon Light Switch: On/Off switch.
11. Hazard Light Switch: On/Off switch.
12. Windshield Wiper and Washer Switch: Two speed rotary switch. Depress to
activate washer. Return to first position to turn off wiper.
13. Attachment Tilt Speed Switch: See “Boom Joystick” on page 3-10.
