JLG G12-55A Operator Manual - Manual (Page 120)

Section 5 - Attachments
5-46 3126018
Boom Head-Mounted Winch (Before S/N 0160037689)
Use Carriage Attachment Capacity Chart
To determine maximum capacity, refer to “Telehandler/
Attachment/Fork Capacity” on page 5-6.
Suspend loads in accordance with requirements set forth in Section
1 - General Safety Practices.

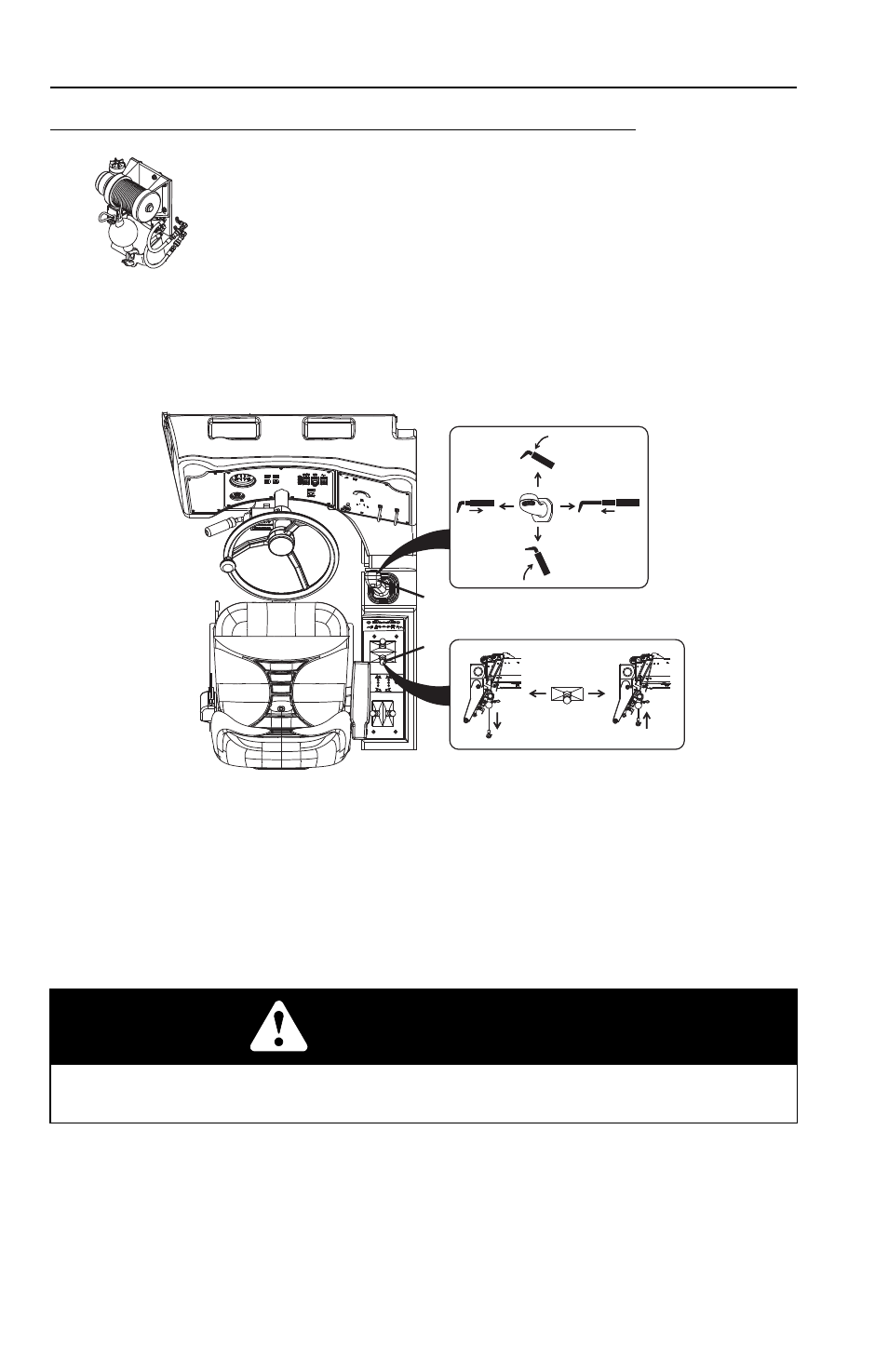

The joystick (1) controls lift/lower and extend/retract movement of the boom.
The auxiliary hydraulic joystick (3) controls the winch.
• Move joystick left to lower cable.
• Move joystick right to raise cable.
Operation:
• Weight of rigging must be included as part of total load being lifted.
WARNING
CRUSH HAZARD. Maintain a minimum of three wraps of wire rope on the cable
drum at all times. Failure to comply could cause object or load to fall.
OY0650
OAL0712
1
3
