JLG G12-55A Operator Manual - Manual (Page 106)

Section 5 - Attachments
5-32 3126018
Mast Carriage w/Side Tilt (S/N 0160037689 & After)
Use Mast Carriage Capacity Chart
To determine maximum capacity, refer to “Telehandler/
Attachment/Fork Capacity” on page 5-6.

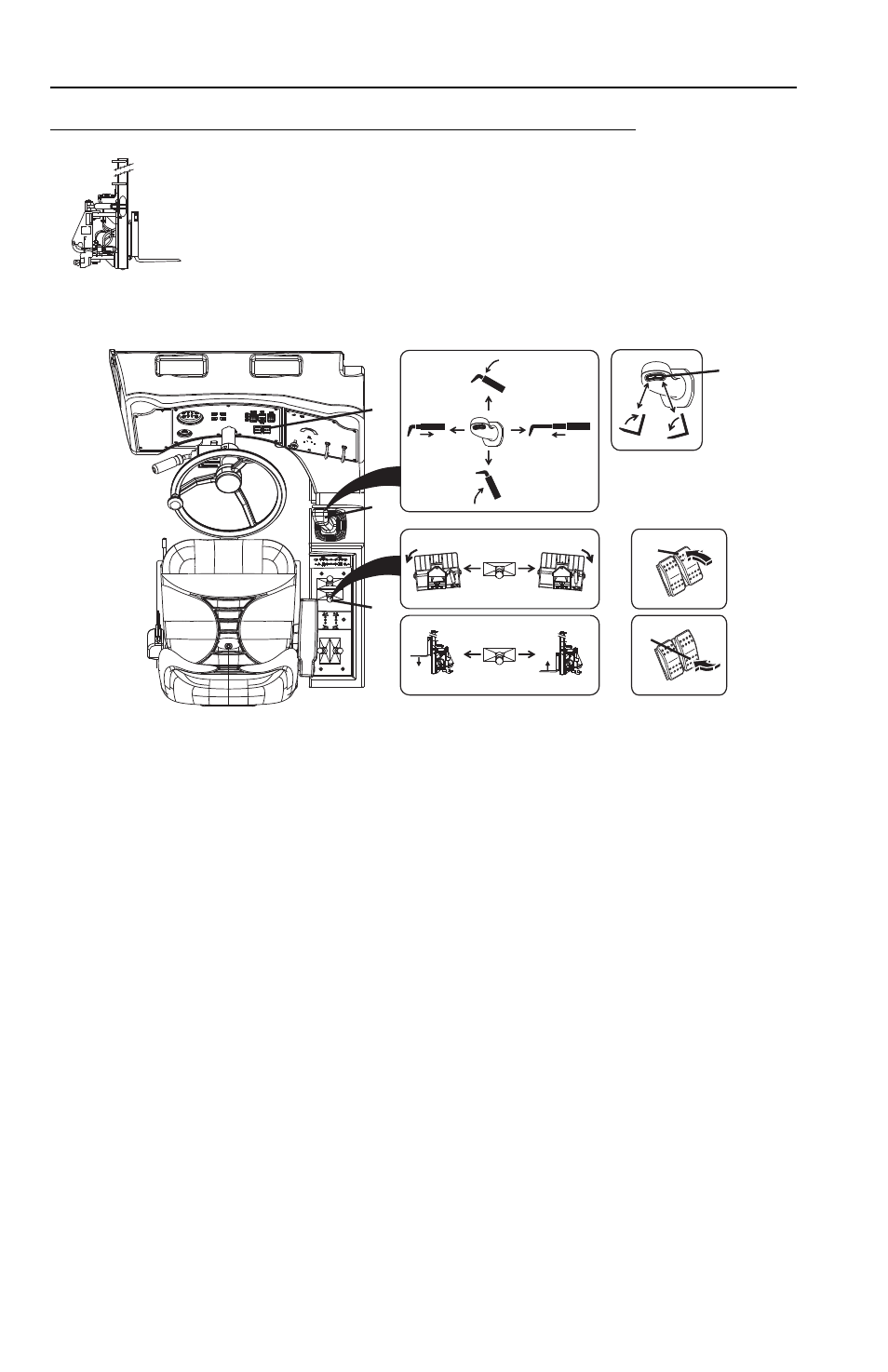

The joystick (1) controls lift/lower and extend/retract movement of the boom.
The tilt switch (2) controls mast tilt.
• Press left side of switch to tilt up.
• Press right side of switch to tilt down.
To Side Tilt:
Press Side Tilt Switch (5) located on dash panel (4) to activate Side Tilt function.
The auxiliary hydraulic joystick (3) controls the carriage side tilt.
• Move joystick left to (side) tilt left.
• Move joystick right to (side) tilt right.
To Raise/Lower Mast:
Press Forks Raise/Lower Switch (6) located on dash panel to activate Forks Raise/
Lower function.
The auxiliary hydraulic joystick controls the mast raise/lower function.
• Move joystick left to lower.
• Move joystick right to raise.
OY0590
W ARNING
OY1730
2
1
3
5
6
4
+
W A RNING W ARNING
+
