3.6 DEUTZ D2.9 L4 ENGINE

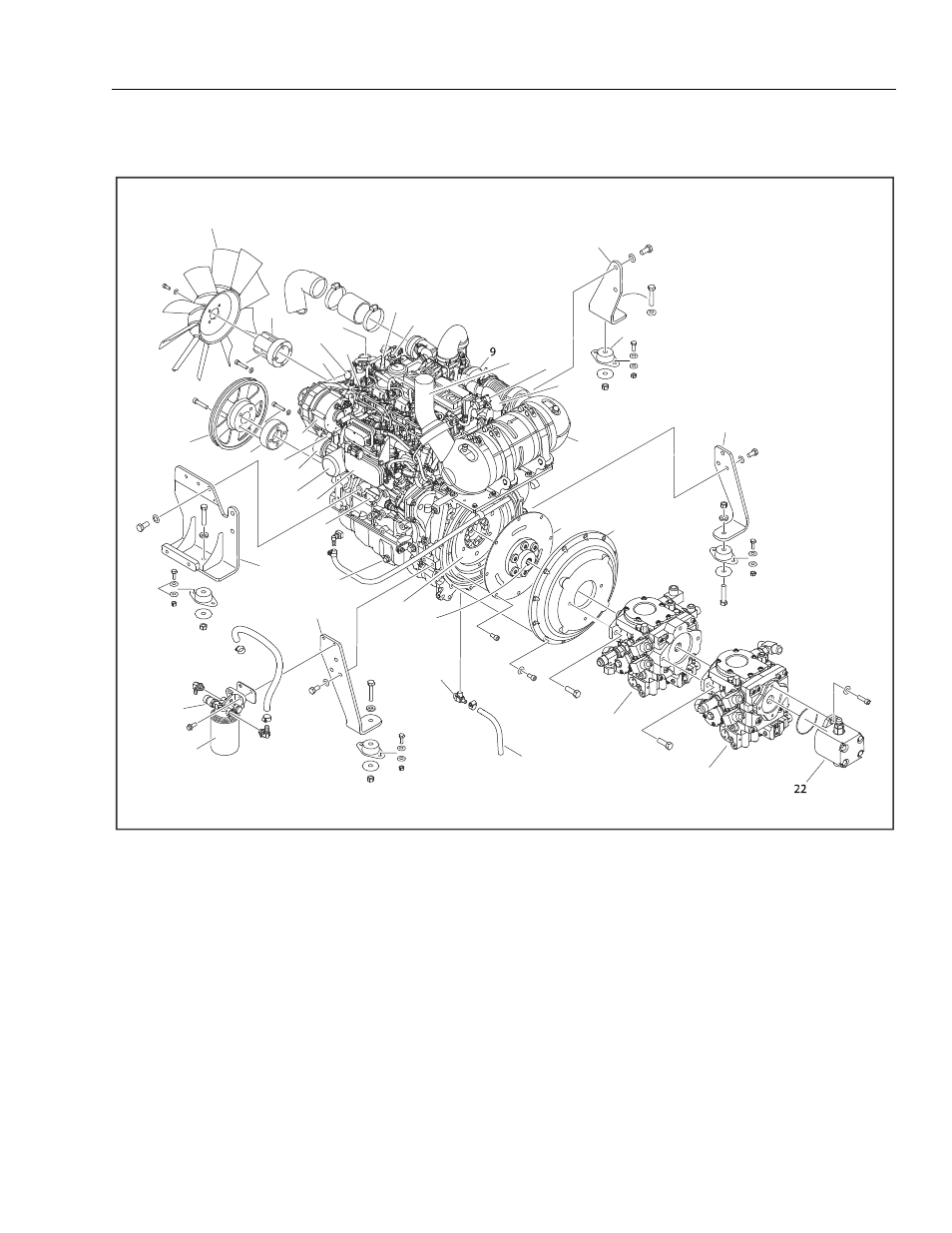

Figure 3-40. Deutz D2.9 L4 Engine Installation - Sheet 1 of 2
1. Fan
2. Adapter
3. Drive Belt
4. Water Pump
5. Fuel Injector
6. Thermostat
7. Oil Fill Cap
8. Temperature Sender
9. Turbocharger
10. Exhaust Pipe
11. Spark Arrester
12. Pressure Sensor
13. Front Engine Mount
14. Motor Mount
15. Shuttle Valve
16. Catalytic Converter/Muffler
17. Rear Engine Mount
18. Coupling
19. Pump Adapter Plate
20. Right Track Drive Pump
21. Left Track Drive Pump
22. Gear Pump
23. Oil Drain Hose
24. Oil Drain Valve 25. Pump Coupler
26. Flywheel
27. Fuel Filter
28. Pressure Sensor
29. Rear Engine Mount
30. Oil Pan Drain Plug
31. Front Engine/Generator Mount
32. Oil Fill Cap 33. Oil Cooler
34. Oil Filter
35. Belt Tensioner
36. Plug
37. Alternator
38. Adapter
39. Pulley
