JLG 600SC_660SJC Service Manual User Manual
Page 59

SECTION 3 - CHASSIS & TURNTABLE
3121607
– JLG Lift –
3-23
1.
Assemble fittings for hoses to drive motor finger tight
until correct positioning is established.
2.

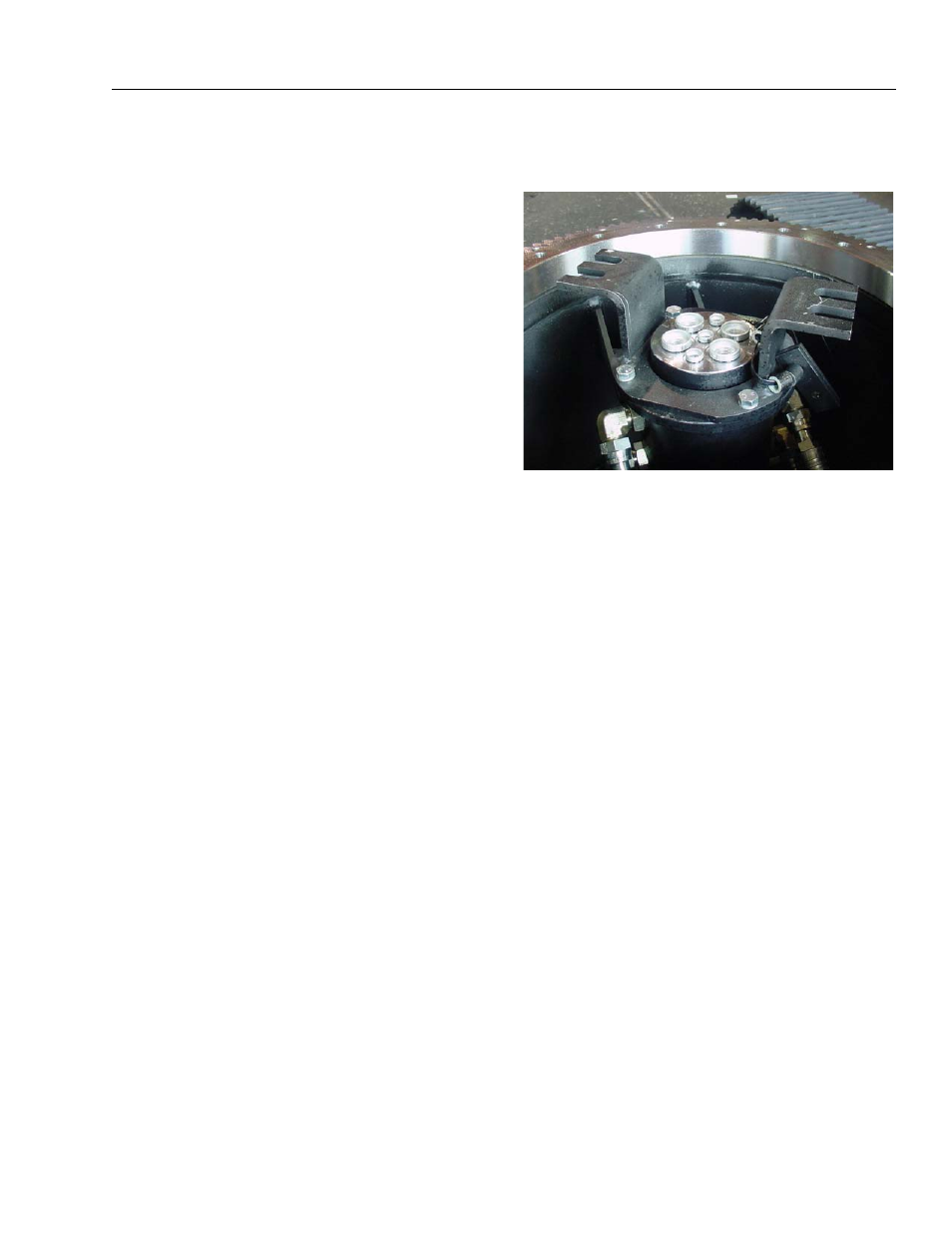

Install swivel supports with hardware and JLG Thread
Locking Compound PN 0100011. Torque to 53 ft-lb +5-0
(74 Nm, +7 -0).
3.
Lift swivel using supports previously installed, and
assemble to frame. Use JLG Thread Locking Compound
PN 0100011 on bolts. Torque to 68 ft-lb (95 Nm).
4.
Route hoses from swivel area through side frame. Make
initial connections for hoses from swivel to drive motors.
5.
Route brake, shift, and drain hoses through side frame.
Lubricate O-rings and hand tighten hoses to right-hand
drive motor fittings.
6.
Install swivel stabilizer and secure With JLG Thread Lock-
ing Compound PN 0100011. Torque to 93 ft-lb +10-0
(130 Nm, +14 -0).
7.
Clean split post on each side of frame. Wipe off grease
from roller assembly. Apply Anti-Seize Compound. Slide
roller
assembly into split post hole and secure with nut,
bolt, and JLG Thread Locking Compound PN 0100011.
Torque to 340 ft-lb +25-0 (476 Nm, +35 -0)on both sides.
